Description

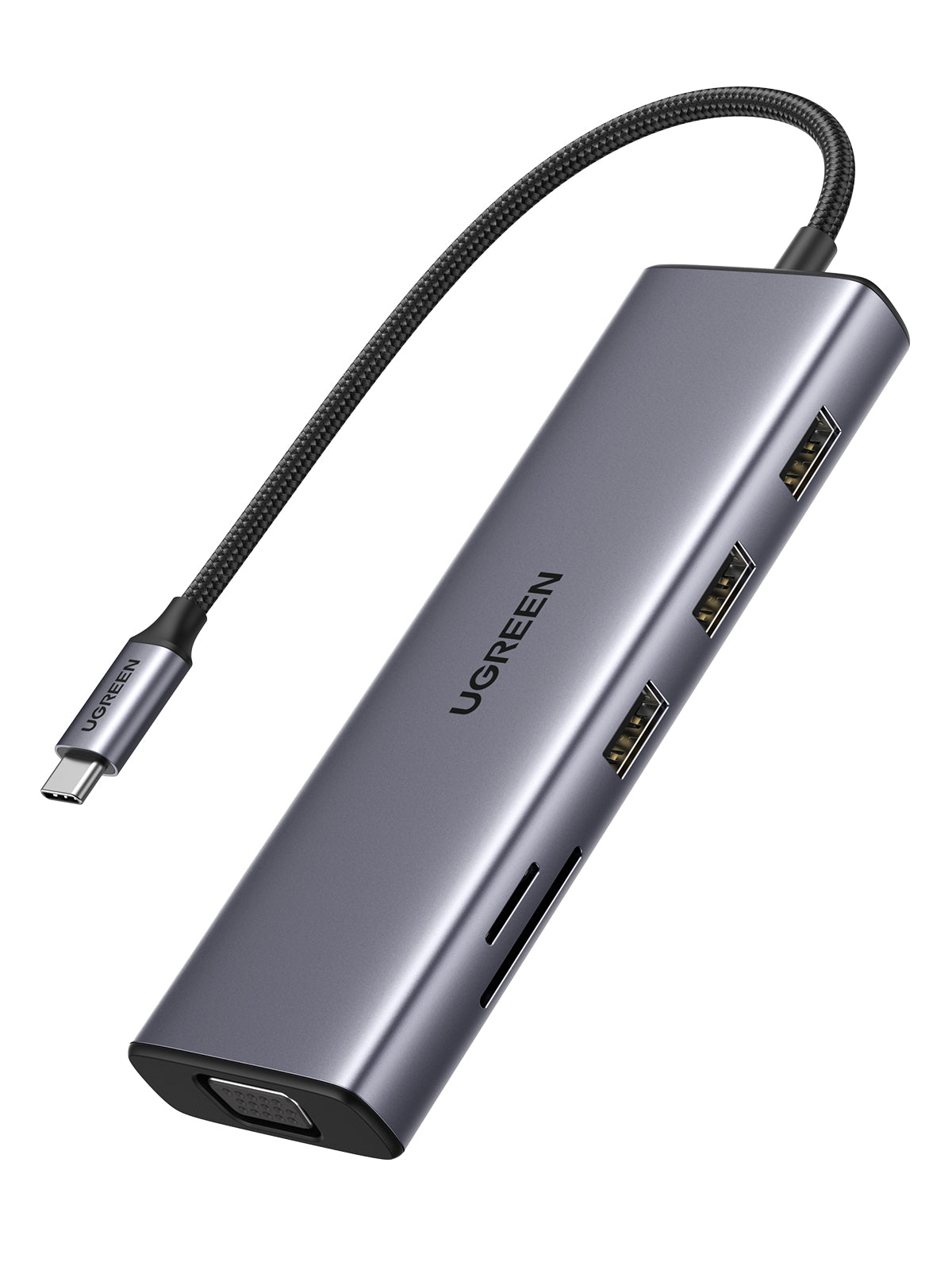

The UGREEN USB-C Multifunction Adapter turns a single USB-C port into a 10-in-1 workstation hub for peripherals, displays and storage. It offers three USB-A 3.0 ports at up to 5 Gbps, HDMI at 4K@30Hz, VGA at 1080P, Gigabit Ethernet, a 3.5 mm audio jack and SD and TF card slots that read at the same time. The USB-C PD port accepts a 100W charger and passes up to 85W through to the laptop while docked. It works with Windows, macOS, Linux, iOS and Android.
Dimensions
Size: approx. 139 x 45 x 16 mm
Weight: 175 g
Technical Specifications
Type: USB-C Hub

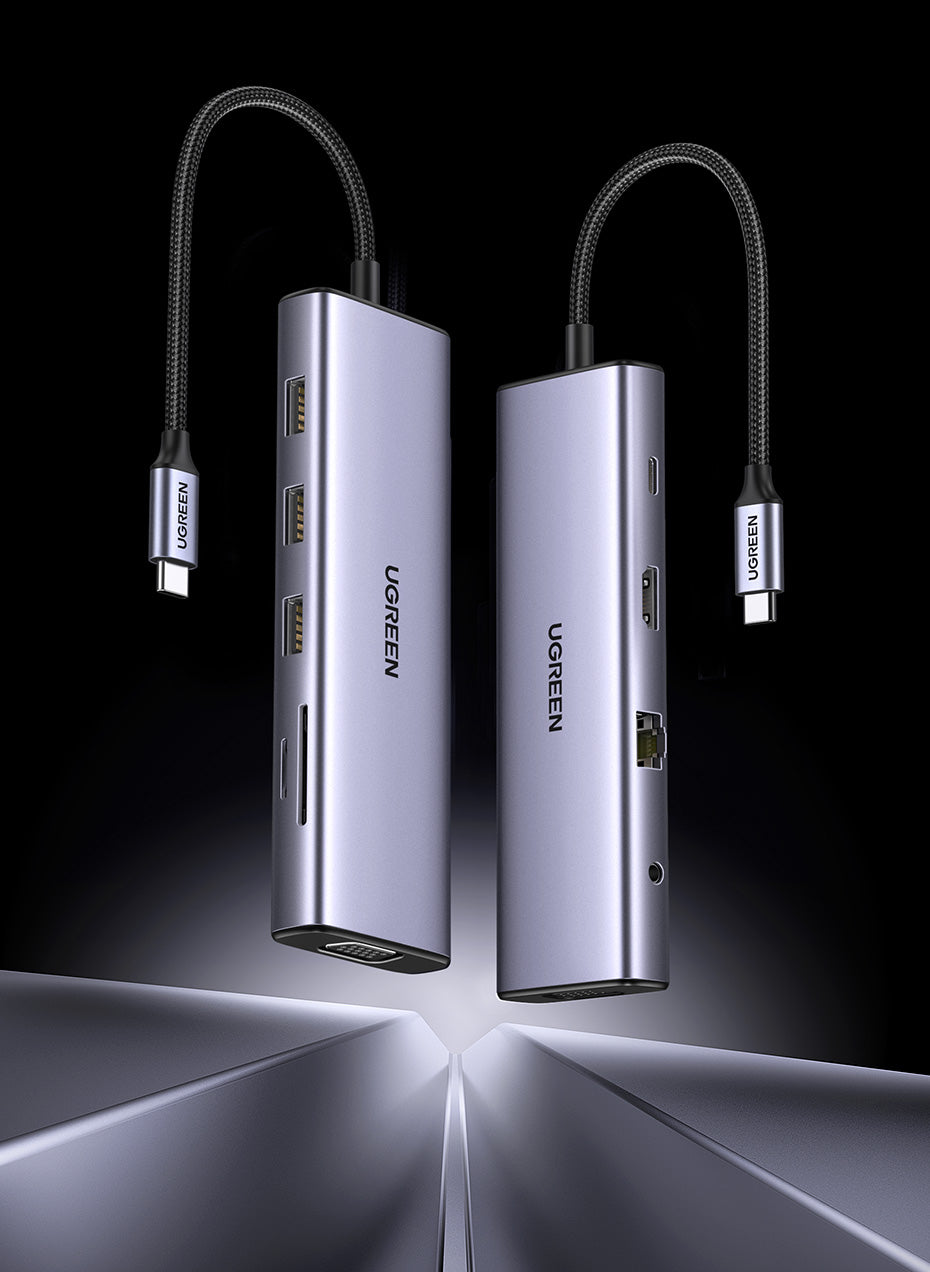

Ports: 3x USB-A 3.0, HDMI, VGA, RJ45, SD/TF, AUX 3.5 mm, USB-C PD (10-in-1)
Cable length: 15 cm
Power Delivery: PD 100 W
USB 3.0 speed: Up to 5 Gbps
HDMI: 4K@30Hz
VGA: 1080P@60Hz
RJ45: 1000/100/10 Mbps
SD/TF: 104 MB/s max, simultaneous reading
Chipset: A1/A2: VL102+VL815+GL3510+ITE6564+GL3224+AX88179A+CS4344; A3: AG9321-MAQ+GL3510*2+RTL8153B+GL3224+SC8723
EAN: 6941876216017
PD pass-through: Up to 85W to the laptop
Compatibility
Windows 10/8.1/8/7/XP; Linux; macOS; iOS; Android
Features
Power Delivery pass-through charging that adjusts voltage and current to the connected device
Gigabit Ethernet via RJ45
Simultaneous SD and TF reading
Package Contents
UGREEN USB-C Multifunction Adapter × 1
Part Number(s)
15601
