Description

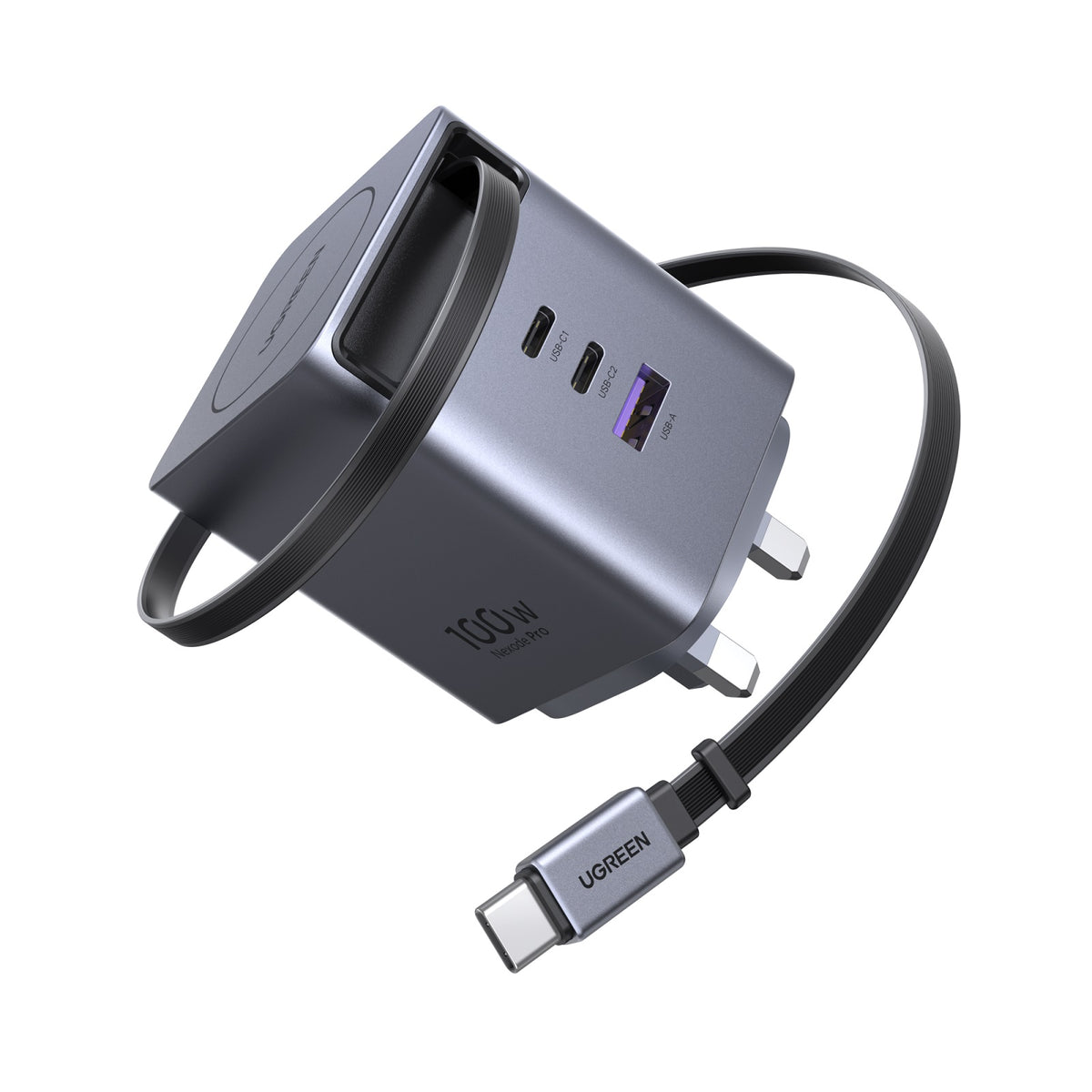

The UGREEN 100W GaN Fast Charger with Retractable Cable is a desk charger for laptops, tablets and phones that replaces a tangle of adapters with one plug. The retractable USB-C cable and the first USB-C port each deliver up to 100W, enough to charge a USB-C laptop at full speed, with a second USB-C port at 30W and a USB-A port at 22.5W. GaN technology keeps it compact, it meets Level 6 energy efficiency standards, and overvoltage, short-circuit, overcurrent and overtemperature protection is built in.
Technical Specifications
Type: Wall Charger
Cable: Retractable
Technology: GaN
AC Input: 100~240V AC, 50/60 Hz, 1.8A Max
USB-C Cable output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max), PPS: 5-21V/5A
USB-C1 output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max), PPS: 5-21V/5A
USB-C2 output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A (30W Max), PPS: 5-11V/2.75A
USB-A output: 5V/3A, 9V/2A, 12V/1.5A, 10V/2.25A (22.5W Max)
Output Total Power: 100W Max
Static Power Consumption: ≤ 0.3W
Output Voltage Range: ±5% of rated voltage
Output Ripple: 5V ≤150mV, 9V ≤150mV, 12V ≤180mV, 15V ≤180mV, 20V ≤200mV
Protection: Overvoltage, Short Circuit, Overcurrent, Output Overtemperature (NTC)
Conversion Efficiency: Meets Level 6 energy efficiency standards
Operating Temperature: -10~25℃
Compatibility
laptops, tablets, smartphones and other USB-C devices
Features
Retractable USB-C cable
3x USB-C + 1x USB-A (3C1A)
GaN
Package Contents

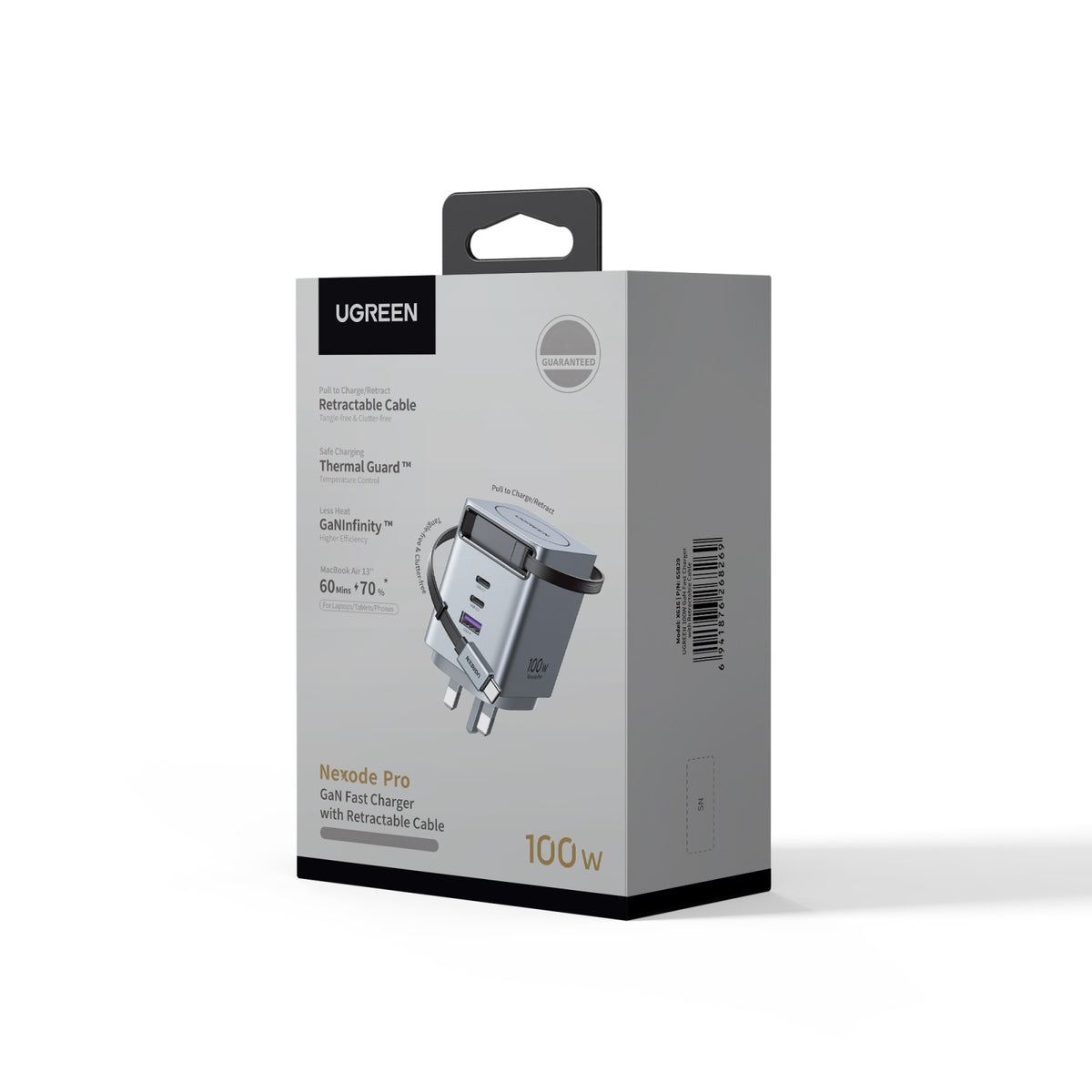

1 x UGREEN X616-65829 100W Nexode Pro GaN Fast Charger with Retractable USB-C Cable (3C1A)
Part Number(s)
65829
