Description
The TP-Link 450Mbps High Power Wireless N Router delivers exceptional range and reliable Wi-Fi performance with powerful amplifiers and high-gain antennas. Designed to penetrate walls and eliminate dead zones, it ensures smooth connectivity across large homes. Supporting multiple modes including Router, Range Extender, and Access Point, this versatile device is ideal for streaming, gaming, and voice applications.
Dimensions
Height: 48.3 mm (1.9 in)
Width: 227.5 mm (9.0 in)
Depth: 190 mm (7.5 in)
Technical Specifications
Wireless Standard: Wi-Fi 4 (IEEE 802.11n/b/g, 2.4 GHz)
Frequency Band: 2.4 GHz
Data Transfer Rate: 450 Mbps (N450)
Wi-Fi Range: Up to 4-bedroom houses
Antennas: 3 × Detachable 9 dBi High-Gain Antennas
Wi-Fi Capacity: Legacy
Processor: Single-Core CPU

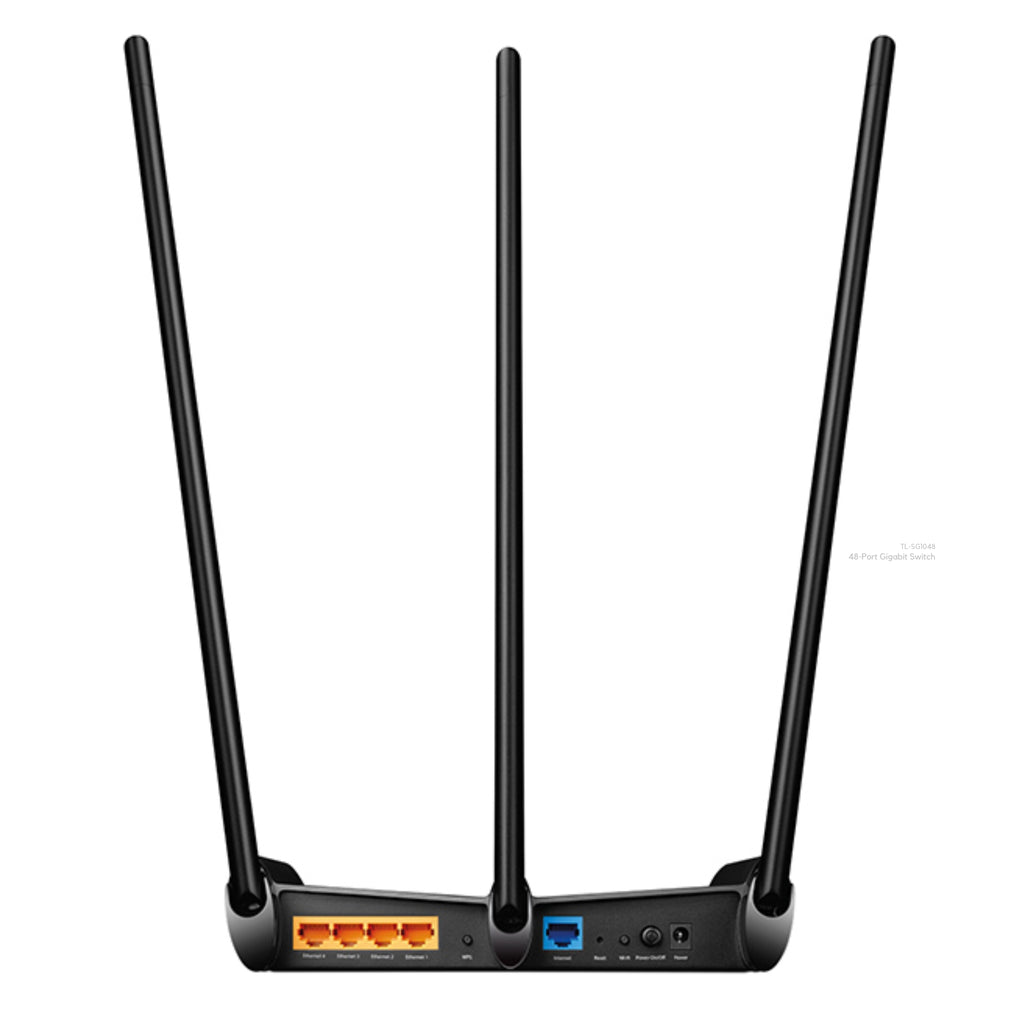

Ports: 1 × 10/100 Mbps WAN, 4 × 10/100 Mbps LAN
Power Supply: 12V ⎓ 1.5A
Buttons: Wi-Fi On/Off, Power On/Off, WPS, Reset
Operating Modes
-
Router Mode
-
Access Point Mode
-
Range Extender Mode
Security
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network: 1 × 2.4 GHz Guest Network
VPN Server: OpenVPN, PPTP
Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
Software Features
Protocols: IPv4, IPv6
Parental Controls: URL Filtering, Time Controls
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: Device-based QoS
NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
IPTV: IGMP Proxy, IGMP Snooping
DHCP: Server, Client List, Address Reservation
DDNS: NO-IP, DynDNS
Management: TP-Link Tether App, Web Interface
Features
-
Superior range with high-power amplifiers and high-gain antennas
-
Wall-penetrating Wi-Fi eliminates dead zones
-
Supports 3-in-1 modes: Router, Range Extender, Access Point
-
450 Mbps wireless speed, ideal for streaming, gaming, and VoIP
-
Robust network security with SPI firewall, VPN, and guest Wi-Fi
-
Easy management via TP-Link Tether App

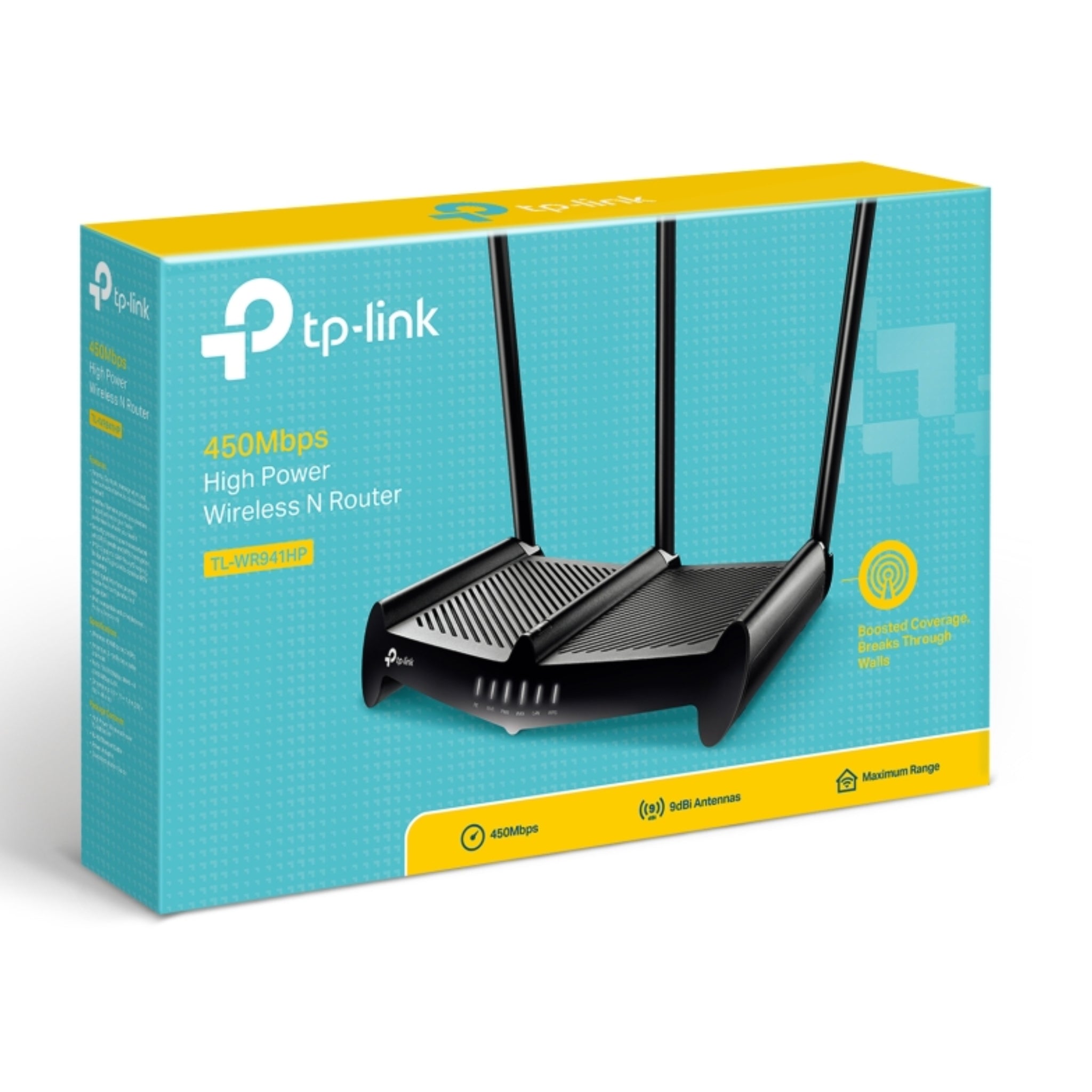

Package Contents
-
450Mbps High Power Wireless N Router × 1
-
Power Adapter × 1
-
RJ45 Ethernet Cable × 1
-
Quick Installation Guide × 1
Model Number(s)
WR941HP
