Description
The TP-Link 450Mbps Wireless N Router delivers high-speed Wi-Fi performance up to 450 Mbps, making it ideal for HD video streaming, online gaming, and other bandwidth-intensive tasks. Equipped with three antennas, it enhances wireless stability and coverage, while its versatile operating modes allow use as a Router, Range Extender, or Access Point. With simple one-touch WPS security and bandwidth control, it provides reliable and secure connectivity for everyday home networking.
Dimensions
Height: 35 mm (1.4 in)
Width: 230 mm (9.1 in)
Depth: 144 mm (5.7 in)
Technical Specifications
Wireless Standard: Wi-Fi 4 (IEEE 802.11n/b/g, 2.4 GHz)
Frequency Band: 2.4 GHz
Data Transfer Rate: 450 Mbps (N450)
Wi-Fi Range: Up to 2-bedroom houses

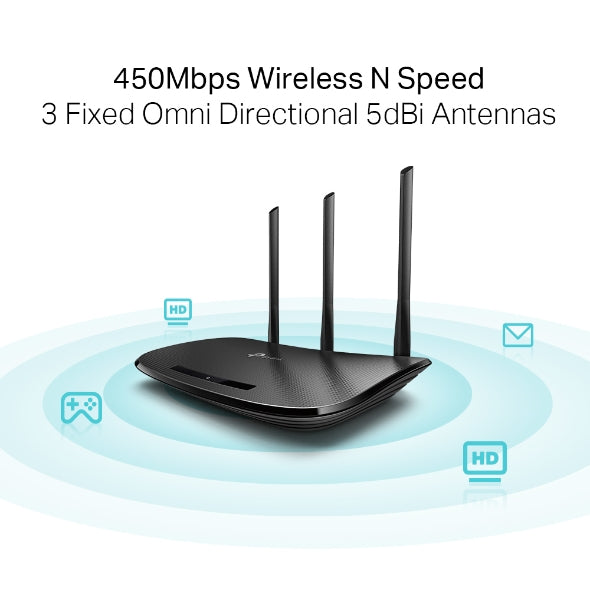

Antennas: 3 × Fixed Antennas
Wi-Fi Capacity: Legacy
Processor: Single-Core CPU

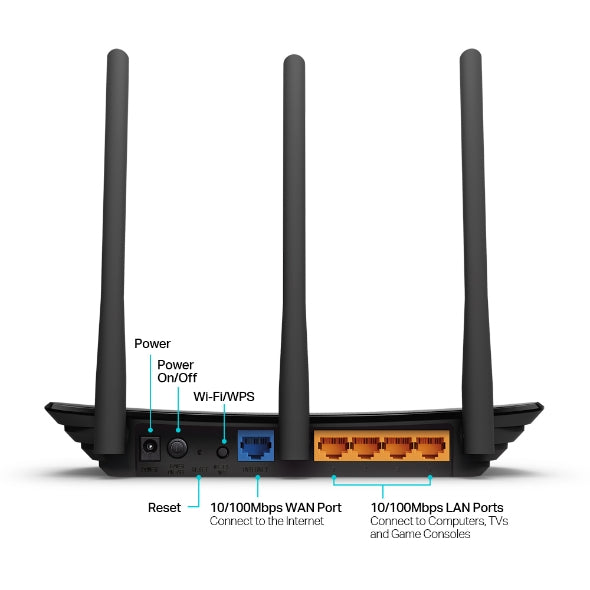

Ports: 1 × 10/100 Mbps WAN, 4 × 10/100 Mbps LAN
Power Supply: 9V ⎓ 0.6A
Buttons: WPS/Wi-Fi, Power On/Off, Reset
Operating Modes
-
Router Mode
-
Access Point Mode
-
Range Extender Mode
Security
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network: 1 × 2.4 GHz Guest Network
Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
Software Features
Protocols: IPv4, IPv6
Parental Controls: URL Filtering, Time Controls
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: Device-based QoS
NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
IPTV: IGMP Proxy, IGMP Snooping
DHCP: Server, Client List, Address Reservation
DDNS: NO-IP, Comex, DynDNS
Management: TP-Link Tether App, Web Interface
Features
-
450 Mbps wireless speed for smooth streaming and gaming
-
Three antennas boost Wi-Fi range and stability
-
Supports Router, Range Extender, and Access Point modes
-
One-touch WPS button for secure setup
-
Bandwidth control for device prioritization
-
Reliable security with SPI firewall and advanced encryption
Package Contents
-
450Mbps Wireless N Router × 1
-
Power Adapter × 1
-
RJ45 Ethernet Cable × 1
-
Quick Installation Guide × 1
Model Number(s)
WR940N (EU)
