Description

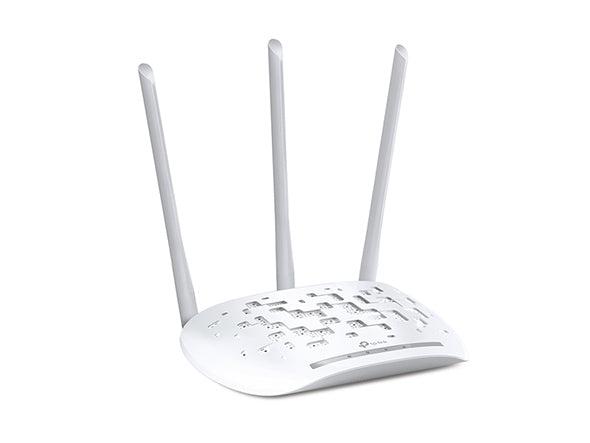

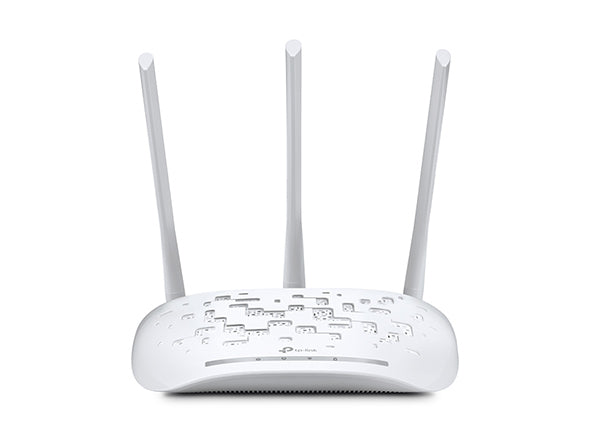

The 450Mbps Wireless N Access Point delivers fast and stable Wi-Fi for home and business environments. With versatile operating modes including Access Point, Client, Repeater, Wireless Bridge, and Multi-SSID, it adapts to different network needs. Equipped with detachable antennas, PoE support for flexible deployment up to 30 meters, and robust security features, it ensures reliable wireless connectivity with easy setup and management.
Dimensions
Height: 36.2 mm (1.43 in)
Width: 129.93 mm (5.12 in)
Depth/Thickness: 194.82 mm (7.67 in)
Technical Specifications
Wireless Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band: 2.4–2.4835 GHz
Data Transfer Rate: 450 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b)

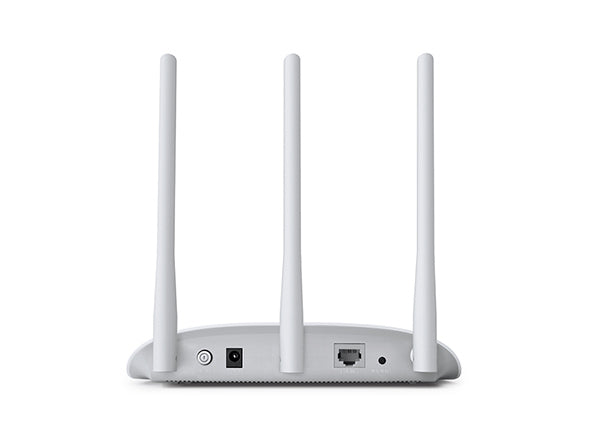

Ports: 1 × 10/100M Ethernet (RJ45, Passive PoE supported)
Antennas: 3 × 5 dBi detachable omni-directional (RP-SMA)
Power Supply: 9VDC/1A, Passive PoE (up to 30 m), Max. 5.8W
Operating Modes: Access Point, Client, Universal/WDS Repeater, Wireless Bridge, Multi-SSID
Buttons: WPS/Reset, Power On/Off
Transmission Power: <20 dBm (EIRP)
QoS: WMM (Wi-Fi Multimedia)
Management: SNMP
Certifications: CE, FCC, RoHS
Features
450Mbps wireless N speeds for smooth streaming and online activity
Multiple operating modes for flexible deployment
Supports WPA/WPA2 encryption for secure Wi-Fi connections
Detachable high-gain antennas for optimized coverage
Passive PoE injector included for flexible installation up to 30 meters
WPS button for quick encrypted connection setup
Package Contents
Wireless Access Point TL-WA901ND × 1
3 × Detachable Omni-Directional Antennas
Power Supply Unit × 1
Passive PoE Power Injector × 1
RJ-45 Ethernet Cable × 1
Resource CD × 1
Quick Installation Guide × 1
Model Number(s)
WA901ND
