Description

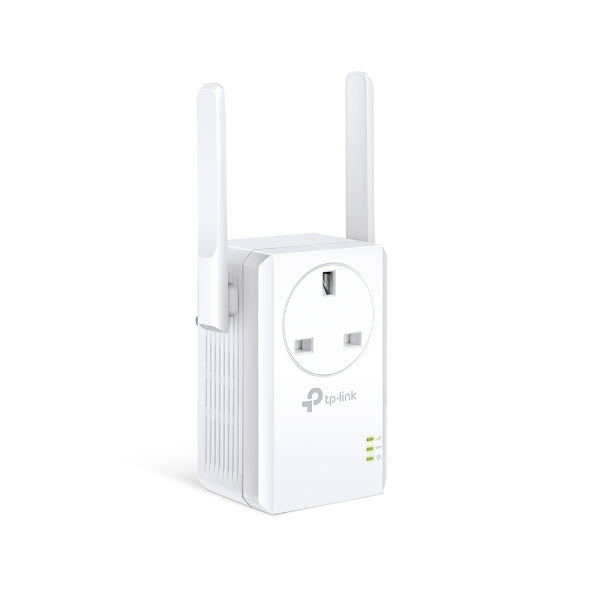

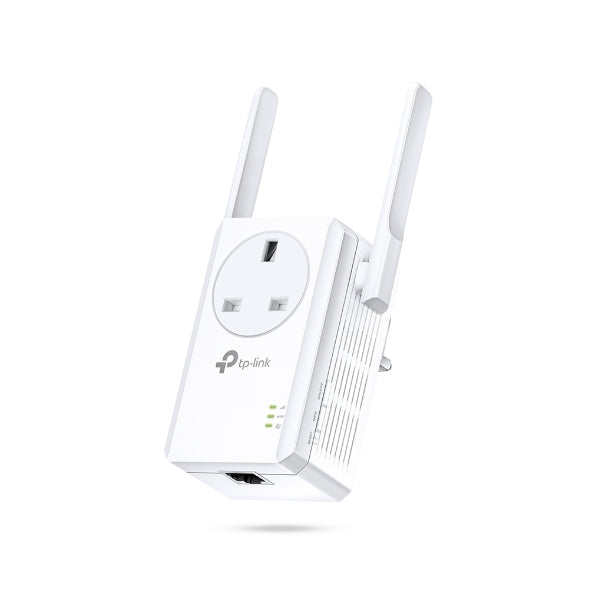

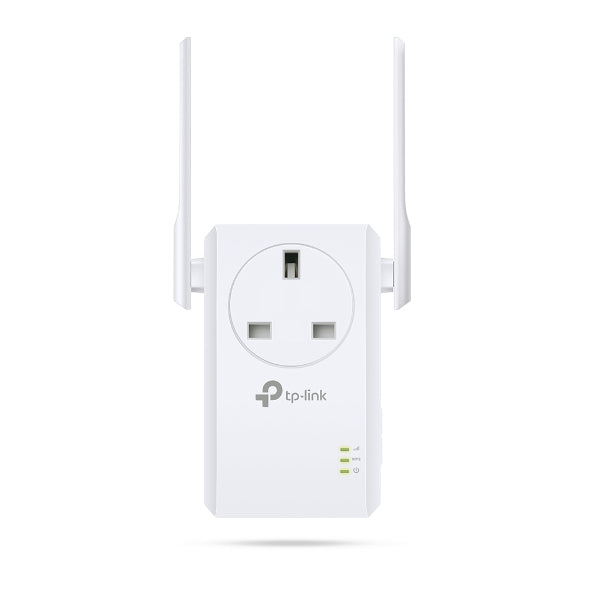

The 300Mbps Wi-Fi Range Extender with AC Passthrough expands your existing network by eliminating dead zones and delivering reliable 2.4GHz Wi-Fi coverage. Its wall-mounted design with a built-in power socket ensures no outlet goes to waste, while dual external antennas provide enhanced stability. With one-touch setup, Ethernet connectivity, and AP mode, it offers a flexible solution for improving both wired and wireless connections.
Dimensions
Height: 110.0 mm (4.3 in)
Width: 65.8 mm (2.6 in)
Depth/Thickness: 75.2 mm (3.0 in)
Technical Specifications
Wireless Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band: 2.4 GHz (2.4–2.4835 GHz)
Data Transfer Rate: 300 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b)
Ports: 1 × 10/100Mbps Ethernet Port (RJ45)
Antennas: 2 × external
Power Supply: 100–240V~50/60Hz, Max. 3W
Security: 64/128/152-bit WEP, WPA-PSK/WPA2-PSK
Operating Modes: Range Extender, Access Point
Buttons: Range Extender (RE), Reset
Transmission Power: <20 dBm (EIRP)
Compatibility: Works with any Wi-Fi router or wireless access point
Plug Types: EU, UK, US
Certifications: CE, RoHS
Features
300Mbps 2.4GHz Wi-Fi for expanding network coverage
Integrated AC passthrough socket to prevent wasted outlets
Two external antennas for stronger and more stable connections
Ethernet port allows use as a wireless adapter for wired devices
One-touch setup via RE button for easy installation
AP Mode creates a Wi-Fi hotspot from wired connections
Package Contents
300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE × 1
RJ-45 Ethernet Cable × 1
Resource CD × 1
Quick Installation Guide × 1
Model Number(s)
WA860RE
