Description

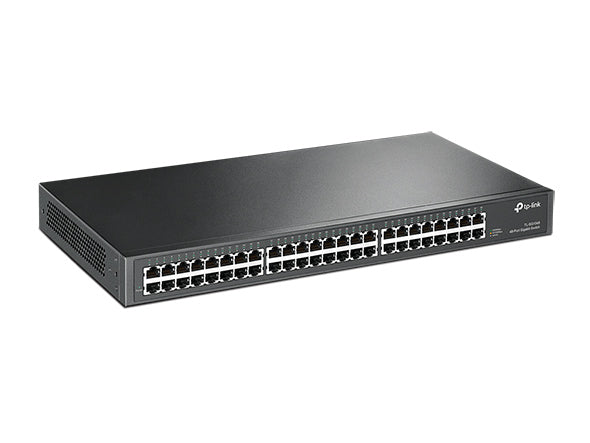

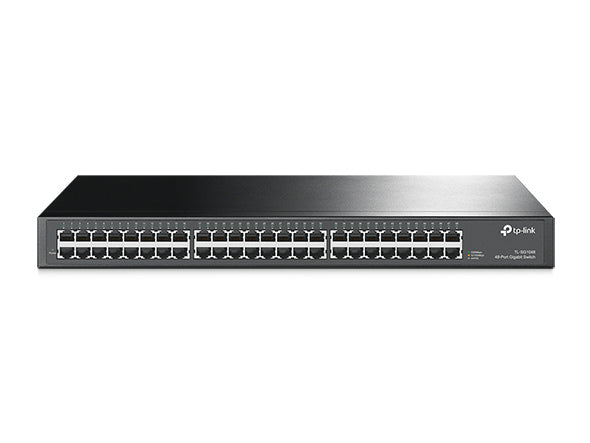

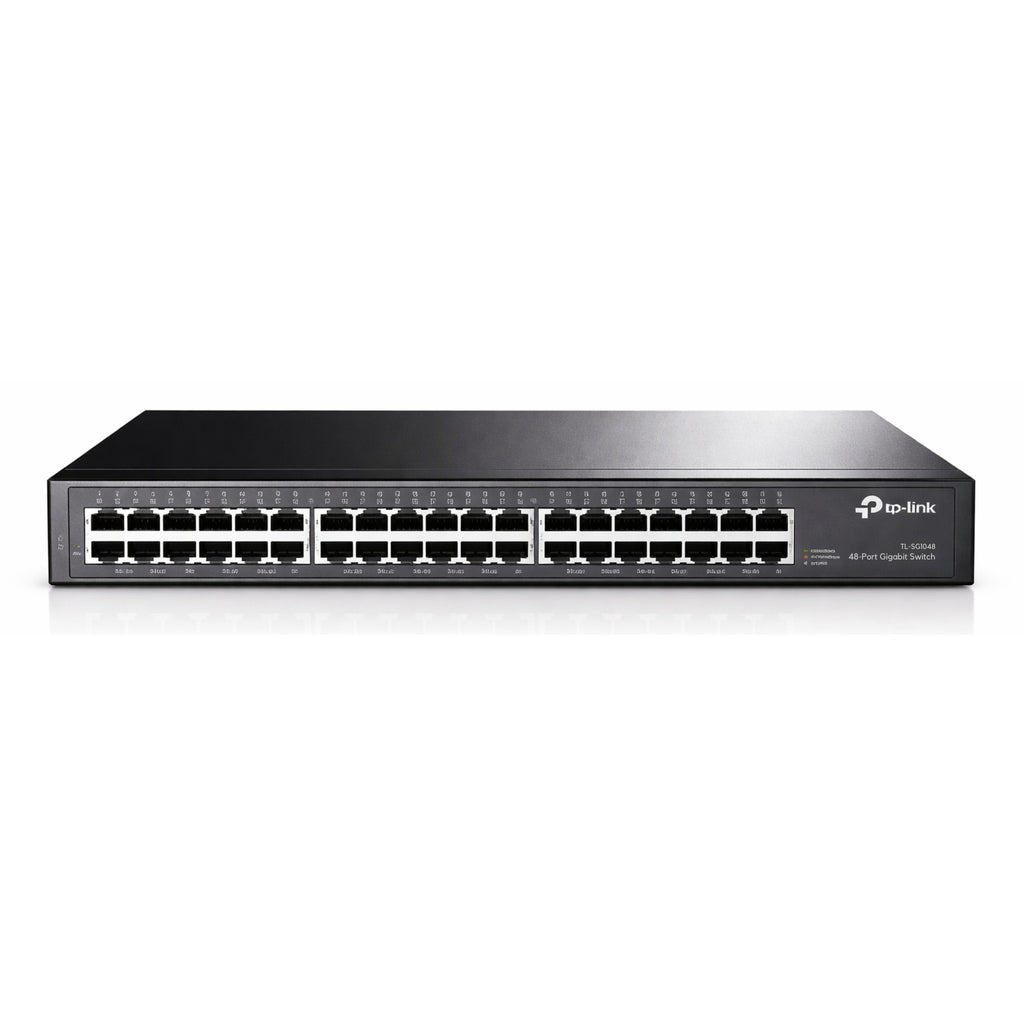

The TL-SG1048 is a high-capacity unmanaged switch designed to deliver reliable gigabit connectivity across large networks. With 48 auto-negotiation Gigabit RJ45 ports and a 96 Gbps switching capacity, it provides seamless data transfer for demanding applications. Its sturdy rack-mountable design, energy efficiency, and silent operation make it ideal for enterprise, campus, and business network environments.
Dimensions
Height: 44 mm (1.7 in)
Width: 440 mm (17.3 in)
Depth: 220 mm (8.7 in)
Technical Specifications
Ports: 48× 10/100/1000 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Switching Capacity: 96 Gbps
Packet Forwarding Rate: 71.4 Mpps
MAC Address Table: 16K entries
Buffer Memory: 12 Mb
Jumbo Frame: 12 KB
Network Media:
• 10BASE-T: UTP Cat3/4/5, up to 100 m
• 100BASE-TX/1000BASE-T: UTP Cat5/5e or above, up to 100 m

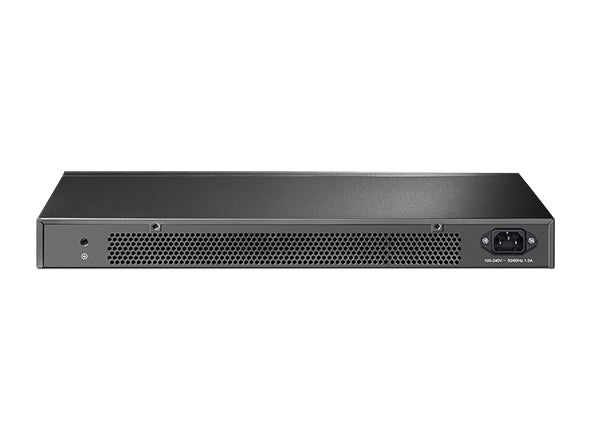

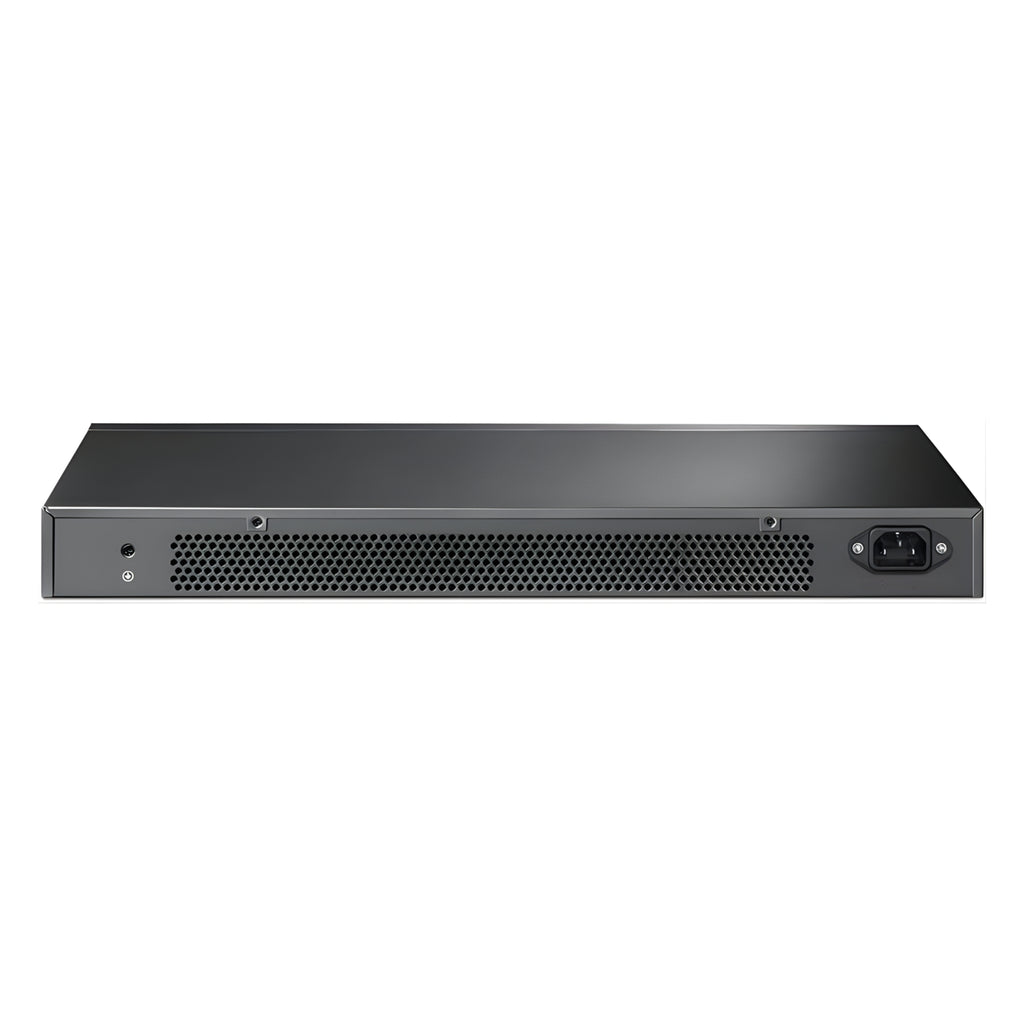

Power Supply: 100–240 V AC, 50/60 Hz
Max Power Consumption: 32.3 W
Max Heat Dissipation: 110.2 BTU/h
Mounting: 19" 1U rack-mountable (brackets included)
Transmission Method: Store-and-forward
Certification: FCC, CE, RoHS
Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Features
48 Gigabit ports for high-density network connections
96 Gbps switching capacity for smooth data transfer
Energy-efficient design to reduce power consumption
Reliable metal enclosure with rack-mount capability
Plug-and-play operation with no configuration required
Package Contents
TL-SG1048 Switch ×1
Power Cord ×1
Installation Guide ×1
Rackmount Kits ×1
Rubber Feet ×1
Model Number(s)
SG1048
