Description

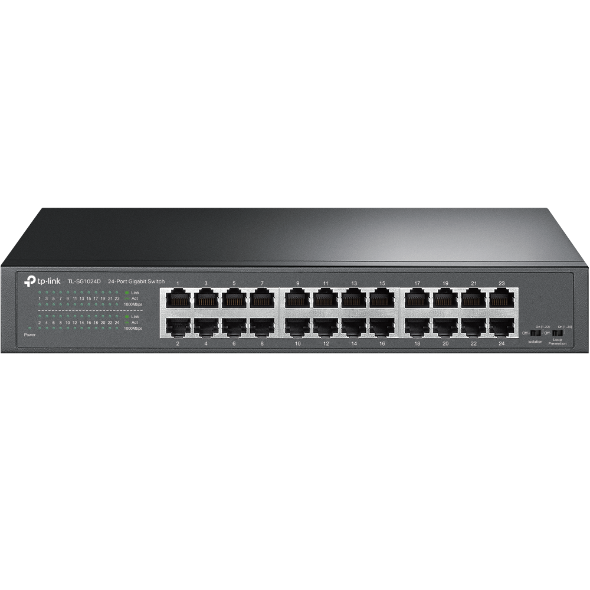

The TL-SG1024D is a reliable unmanaged switch that delivers high-speed gigabit connectivity for expanding wired networks in homes, offices, and business environments. With 24 auto-negotiation Gigabit ports, a 48 Gbps switching capacity, and fanless design for silent operation, it ensures stable and efficient data transmission. Energy-saving technology further reduces power consumption, making it a cost-effective and eco-friendly networking solution.
Dimensions
Height: 44 mm (1.7 in)
Width: 294 mm (11.6 in)
Depth: 140 mm (5.5 in)
Technical Specifications
Ports: 24× 10/100/1000 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Switching Capacity: 48 Gbps
Packet Forwarding Rate: 35.7 Mpps
MAC Address Table: 8K entries
Jumbo Frame: 10 KB
Advanced Features:
• Isolation Mode (Ports 1–22)
• Loop Prevention (Ports 1–24)
Green Technology: Yes
Power Supply: 100–240 V AC, 50/60 Hz
Max Power Consumption: 13.62 W
Max Heat Dissipation: 46.44 BTU/h
Fan Quantity: Fanless
Mounting: Desktop or rack-mountable
Transmission Method: Store-and-forward
Certification: FCC, CE, RoHS
Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Features
24 Gigabit ports for reliable high-speed network expansion
48 Gbps switching capacity for smooth data flow
Fanless design ensures quiet operation
Energy-efficient technology reduces power consumption
Plug-and-play installation with no configuration required
Compact rack-mountable metal housing
Package Contents
TL-SG1024D Switch ×1
Power Cord ×1
Installation Guide ×1
Rackmount Kits ×1
Rubber Feet ×1
Model Number(s)
SG1024D
