Description

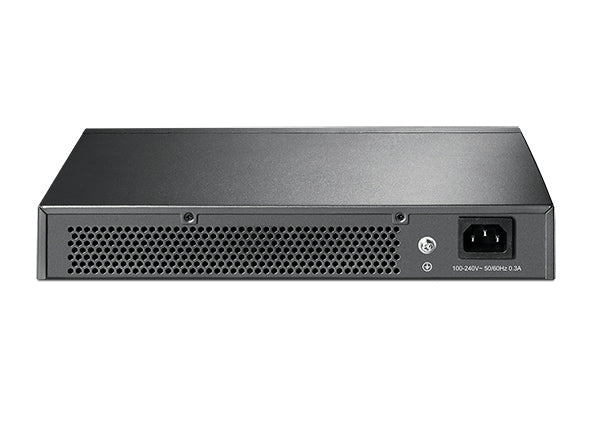

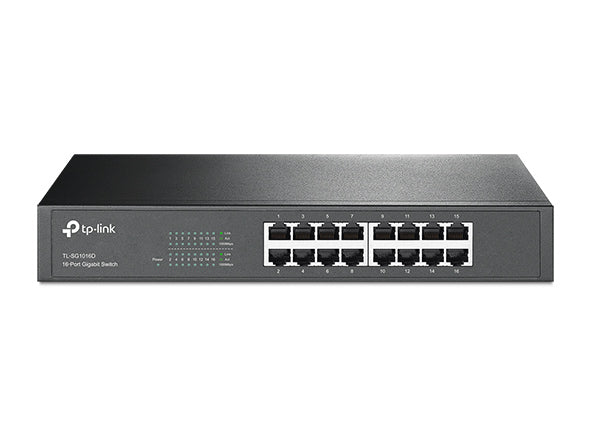

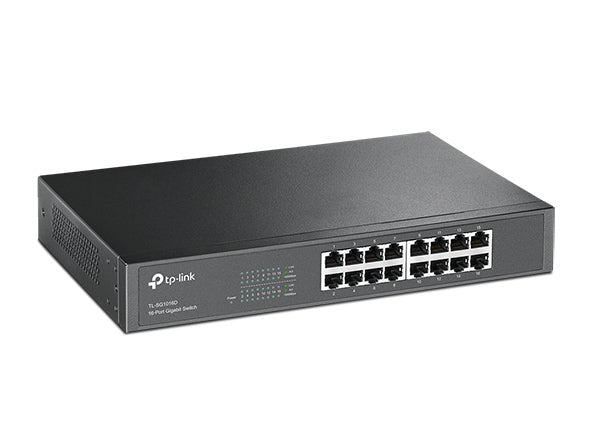

The TL-SG1016D is a high-performance unmanaged switch that delivers reliable gigabit connectivity for medium-sized networks in offices, schools, and businesses. With 16 auto-negotiation Gigabit ports, a 32 Gbps switching capacity, and energy-efficient technology, it ensures smooth and cost-effective data transfer. Its fanless design guarantees silent operation, while the durable metal housing supports both desktop and rack-mounted installations.
Dimensions
Height: 44 mm (1.7 in)
Width: 294 mm (11.6 in)
Depth: 180 mm (7.1 in)
Technical Specifications
Ports: 16× 10/100/1000 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Switching Capacity: 32 Gbps
Packet Forwarding Rate: 23.8 Mpps
MAC Address Table: 8K entries
Jumbo Frame: 10 KB
Advanced Features:
• Isolation Mode (Ports 1–14)
• Loop Prevention (Ports 1–16)
Green Technology: Yes
Power Supply: 100–240 V AC, 50/60 Hz
Max Power Consumption: 9.95 W
Max Heat Dissipation: 33.93 BTU/h
Fan Quantity: Fanless
Mounting: Desktop or rack-mountable
Transmission Method: Store-and-forward
Certification: FCC, RoHS
Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Features
16 Gigabit ports for reliable high-speed connections
32 Gbps switching capacity for smooth data performance
Energy-efficient technology reduces power usage
Silent fanless design ideal for noise-sensitive environments
Compact metal housing with desktop or rack-mount options
Plug-and-play installation with no configuration required
Package Contents
TL-SG1016D Switch ×1
Power Cord ×1
Installation Guide ×1
Rackmount Kits ×1
Rubber Feet ×1
Model Number(s)
SG1016D
