Description

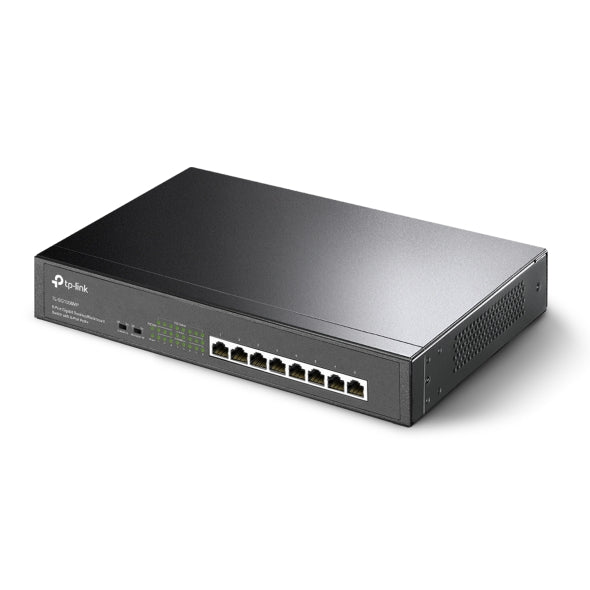

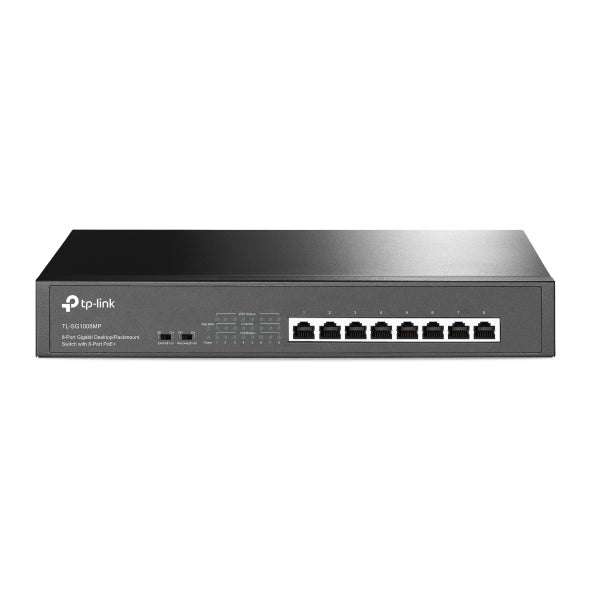

The TL-SG1008MP is a high-performance unmanaged switch featuring 8 Gigabit PoE+ ports for seamless data and power transmission over a single cable. With a total 153 W PoE budget and up to 30 W per port, it easily powers IP cameras, access points, and IP phones. Extend Mode allows long-distance PoE transmission up to 250 m, while PoE Auto Recovery ensures stable device operation by rebooting unresponsive devices automatically. Its plug-and-play design, energy efficiency, and silent fanless operation make it an ideal solution for home, office, and small business networks.
Dimensions
Height: 44 mm (1.7 in)
Width: 294 mm (11.6 in)
Depth: 180 mm (7.1 in)
Technical Specifications
Ports: 8× 10/100/1000 Mbps RJ45 ports (all PoE+)
PoE Standard: 802.3af/at compliant
PoE Output: Up to 30 W per port, 153 W total budget
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.904 Mpps
MAC Address Table: 4K entries
Buffer Size: 1.5 Mbit
Jumbo Frame: 16 KB
Network Media:
• 10BASE-T: UTP Cat3/4/5, up to 100 m
• 100BASE-TX: UTP Cat5/5e, up to 100 m
• 1000BASE-T: UTP Cat5/5e/6 or above, up to 100 m
Power Supply: 100–240 V AC, 50/60 Hz
Max Power Consumption: 172.49 W (with 153 W PD connected)
Max Heat Dissipation: 588.19 BTU/h (with 153 W PD connected)
Fan Quantity: Fanless
Mounting: Desktop or rack-mountable
Transmission Method: Store-and-forward
Certification: FCC, CE, RoHS
Operating Temperature: 0–45 ℃ (32–113 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Features
Eight PoE+ ports with up to 30 W per port and 153 W total budget
PoE Auto Recovery for uninterrupted operation of powered devices
Extend Mode for long-distance data and power transmission up to 250 m (Ports 1–2)
Energy-efficient technology reduces power consumption
Plug-and-play installation with no configuration required
Fanless design ensures quiet and reliable operation
Priority function to protect key equipment during heavy load
Package Contents
TL-SG1008MP ×1
Power Cord ×1
Installation Guide ×1
Rackmount Kit ×1
Rubber Feet ×1
Model Number(s)
SG1008MP
