Description

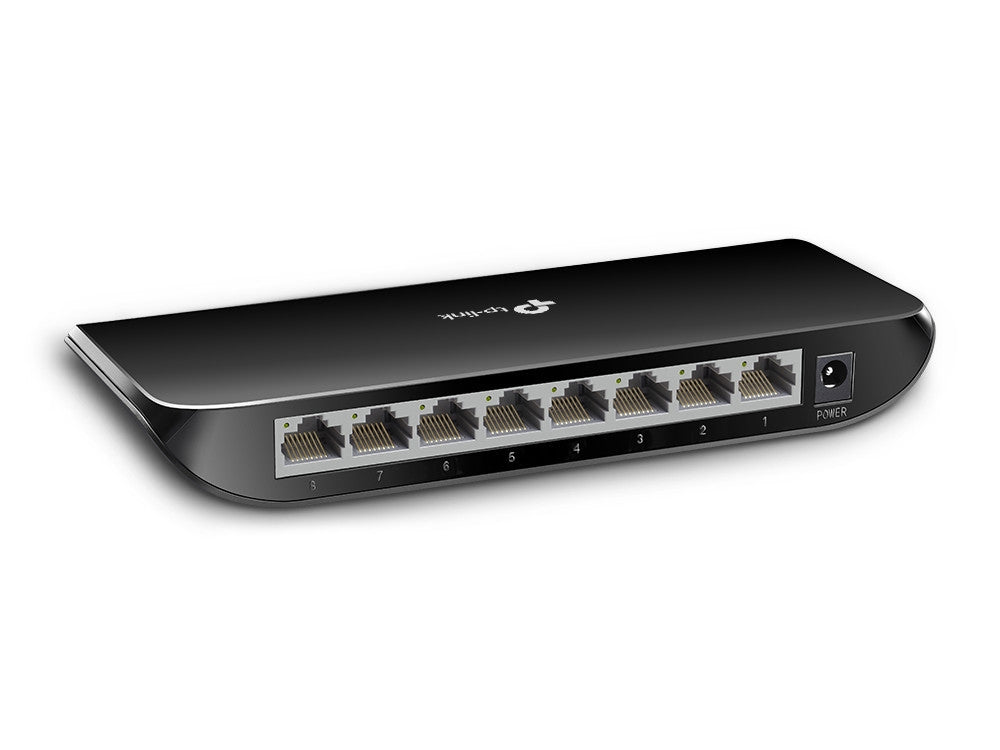

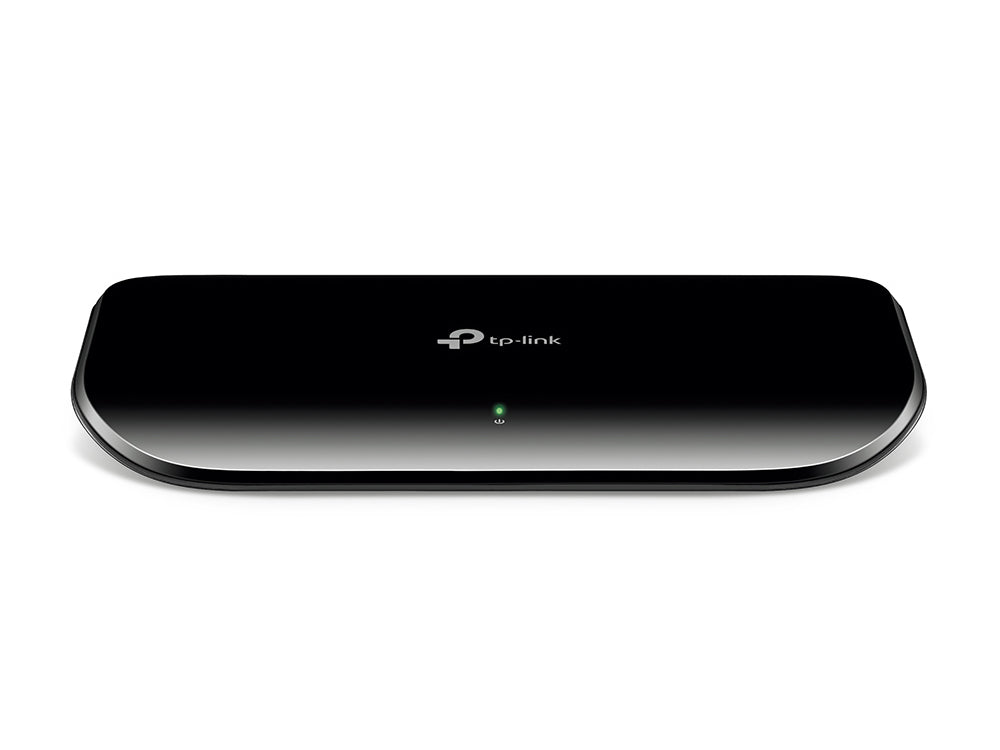

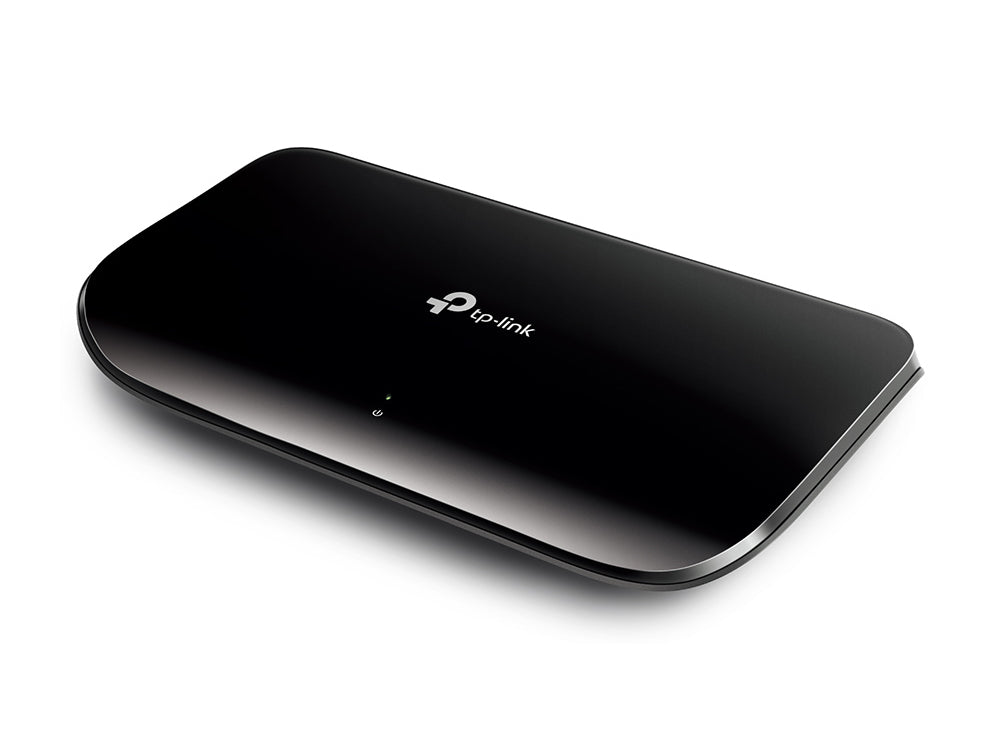

The TP-Link TL-SG1008D delivers reliable and high-speed wired connections with eight Gigabit Ethernet ports. Designed with energy-efficient Green Ethernet technology, it reduces power consumption without compromising performance. With its compact fanless design, this switch offers quiet operation and is ideal for small offices, workgroups, and home networks seeking seamless, plug-and-play connectivity.
Dimensions
Height: 26 mm (1.0 in)
Width: 180 mm (7.1 in)
Depth: 90 mm (3.5 in)
Technical Specifications
Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
Ports: 8 × 10/100/1000 Mbps RJ45, Auto Negotiation, Auto MDI/MDIX
Switching Capacity: 16 Gbps
Fan Quantity: Fanless
Power Supply: External Power Adapter (9VDC / 0.6A)
Jumbo Frame: 15 KB
MAC Address Table: 4K
Transmission Method: Store and Forward
Max Power Consumption: 4.6W
Max Heat Dissipation: 15.8 BTU/h
Security: FCC, RoHS
Features
-
8 Gigabit Auto-Negotiation RJ45 ports with Auto MDI/MDIX support
-
Green Ethernet technology saves up to 80% power consumption
-
IEEE 802.3x flow control for reliable data transfer
-
Fanless design for quiet operation
-
Plastic case with desktop or wall-mounting options
-
Plug and play, no configuration required
Package Contents
-
8-Port Gigabit Desktop Switch × 1
-
Power Adapter × 1
-
Installation Guide × 1
Model Number(s)
SG1008D
