Description
The TP-Link 5-Port Gigabit Desktop Switch provides fast, reliable wired connectivity with five Gigabit Ethernet ports. Built with energy-efficient Green Ethernet technology, it reduces power consumption while maintaining strong performance. With its compact, fanless design, this switch ensures quiet operation and is ideal for home offices, small businesses, or desktop setups that need stable plug-and-play networking.
Dimensions
Height: 23 mm (0.9 in)
Width: 140 mm (5.5 in)
Depth: 88 mm (3.5 in)
Technical Specifications
Ports: 5 × 10/100/1000 Mbps RJ45, Auto Negotiation, Auto MDI/MDIX
Fan Quantity: Fanless
Power Supply: External Power Adapter (9VDC / 0.6A)
Transmission Method: Store and Forward
Max Power Consumption: 2.4W
Max Heat Dissipation: 8.2 BTU/h
Advanced Features: Green Technology, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS
Security: FCC, RoHS
Features
-
5 Gigabit Auto-Negotiation RJ45 ports with Auto MDI/MDIX support
-
Green Ethernet technology saves on power consumption
-
IEEE 802.3x flow control for reliable data transfer
-
Supports 802.1p/DSCP QoS for smoother traffic prioritization
-
Fanless design for quiet operation
-
Plastic case with desktop or wall-mounting options
-
Plug and play, no configuration required
Package Contents
-

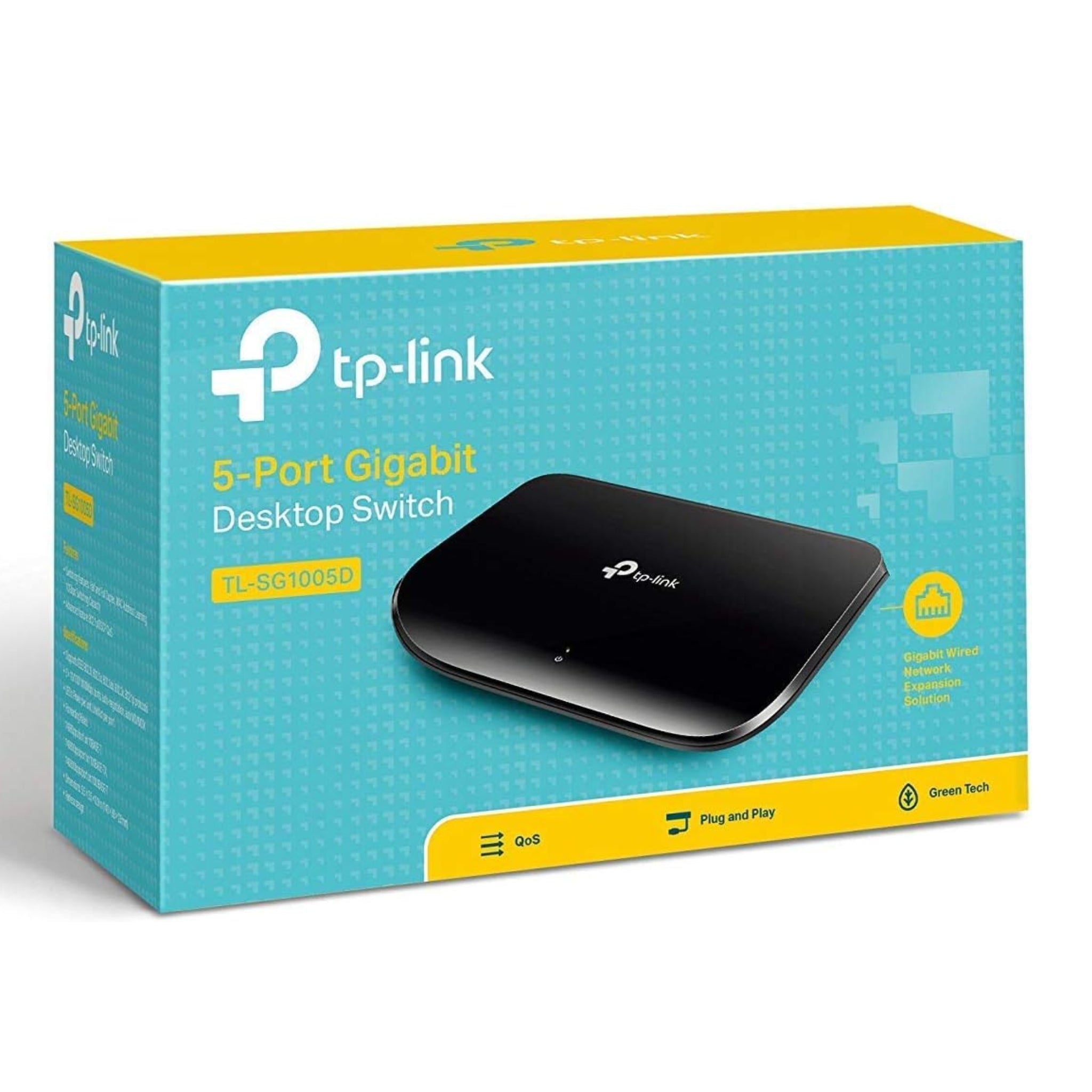

5-Port Gigabit Desktop Switch × 1
-
Power Adapter × 1
-
Installation Guide × 1
Model Number(s)
SG1005D
