Description

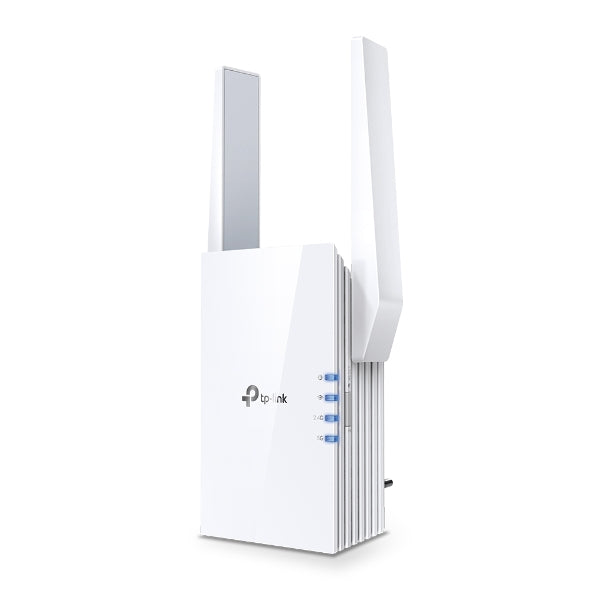

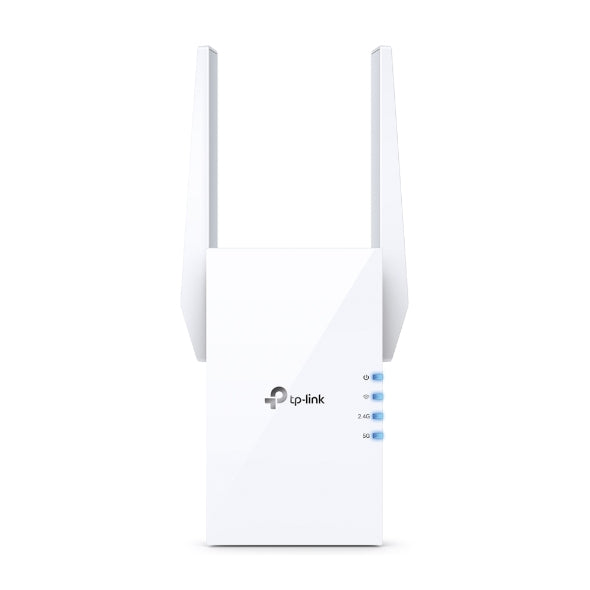

The AX1500 Wi-Fi Range Extender enhances your network with next-generation Wi-Fi 6 technology, delivering dual-band speeds of up to 1.5 Gbps for smoother streaming, faster downloads, and greater capacity. With EasyMesh support, it integrates seamlessly with compatible routers to provide whole-home coverage. Featuring smart roaming, a Gigabit Ethernet port, and AP mode, it offers flexible connectivity for both wireless and wired devices, all easily managed via the Tether app.
Dimensions
Height: 124.8 mm (4.9 in)
Width: 74.0 mm (2.9 in)
Depth/Thickness: 46 mm (1.8 in)
Technical Specifications
Wireless Standard: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency Band: 2.4GHz and 5GHz
Data Transfer Rate: 300 Mbps (2.4GHz), 1200 Mbps (5GHz)

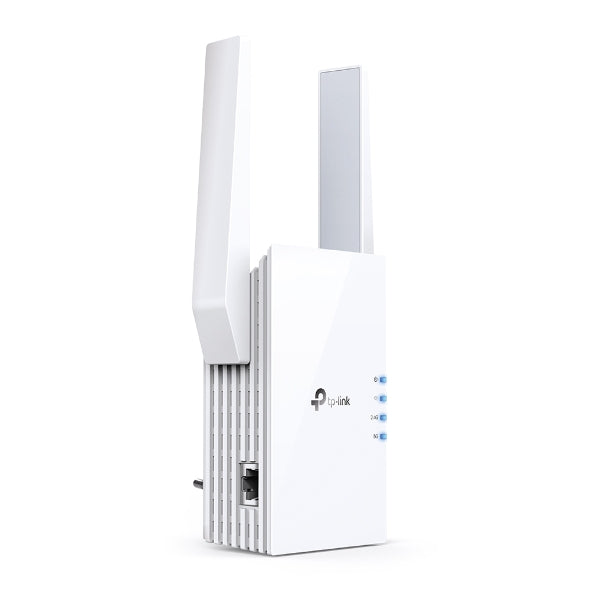

Ports: 1 × Gigabit Ethernet Port
Antennas: 2 × external
Power Supply: 100–240V~50/60Hz, Max. 10W
Security: 64/128-bit WEP, WPA/WPA2-PSK
Operating Modes: Range Extender, Access Point
Buttons: WPS, Reset
Transmission Power: 2.4GHz ≤20 dBm (CE), 5GHz ≤30 dBm (CE)
Mesh Technology: EasyMesh-Compatible
Compatibility: Works with any Wi-Fi router or wireless access point
Certifications: FCC, RoHS
Features
Wi-Fi 6 technology for faster speeds and increased capacity
Dual-band speeds up to 1.5 Gbps for seamless performance
Smart Roaming ensures stable connections while moving around
EasyMesh support for whole-home coverage
Gigabit Ethernet port for high-speed wired connections
AP Mode to create a Wi-Fi hotspot from wired networks
Easy setup via WPS button or Tether App
Package Contents
Wi-Fi Range Extender RE505X × 1
Quick Installation Guide × 1
Model Number(s)
RE505X
