Description

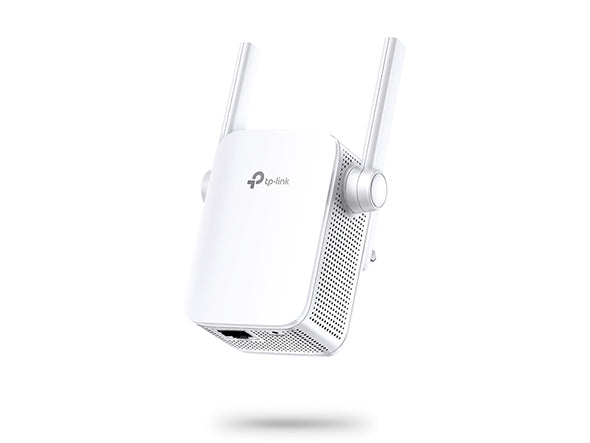

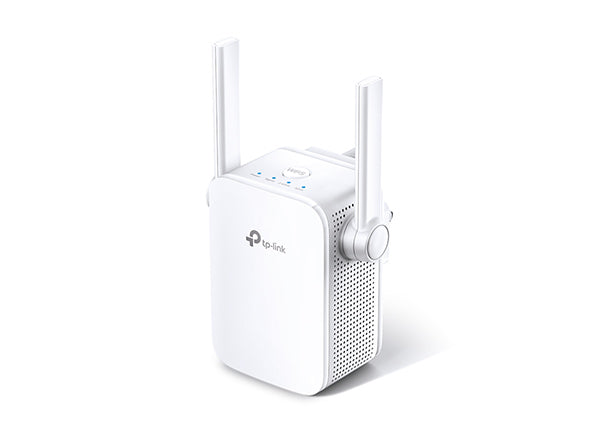

The AC1200 Mesh Wi-Fi Range Extender enhances your network by eliminating dead zones and delivering combined dual-band speeds of up to 1.2 Gbps. With OneMesh support, it seamlessly connects with compatible TP-Link routers to create unified whole-home coverage. Equipped with intelligent signal guidance, dual external antennas, and an Ethernet port, it ensures stable connectivity for both wireless and wired devices.
Dimensions
Height: 77 mm (3.0 in)
Width: 80 mm (3.1 in)
Depth/Thickness: 78 mm (3.0 in)
Technical Specifications
Wireless Standard: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency Band: 2.4GHz and 5GHz (11ac)
Data Transfer Rate: 300 Mbps (2.4GHz), 867 Mbps (5GHz)
Ports: 1 × 10/100Mbps Ethernet Port (RJ45)
Antennas: 2 × external
Power Supply: 100–240V~50/60Hz, Max. 7.3W
Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK
Operating Modes: Range Extender, Access Point
Buttons: WPS, Reset
Transmission Power: <17 dBm (2.4GHz), <17 dBm (5GHz)
Mesh Technology: TP-Link OneMesh
Compatibility: Works with any Wi-Fi router or wireless access point
Plug Types: EU, UK, US
Certifications: CE, FCC, RoHS
Features
Dual-band Wi-Fi with speeds up to 1200 Mbps
OneMesh support for seamless whole-home coverage
Two external antennas for stronger signal and wider coverage
Intelligent Signal Light for optimal placement guidance
AP Mode to create a Wi-Fi access point from wired networks
Compact design with flexible placement options
Package Contents
AC1200 Wi-Fi Range Extender RE305 × 1
Quick Installation Guide × 1
Model Number(s)
RE305
