Description

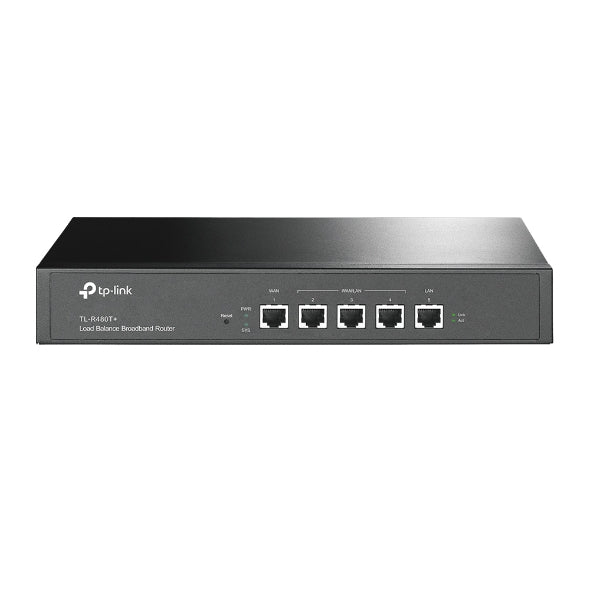

The TP-Link TL-R480T+ is a professional-grade load balance broadband router designed for businesses and organizations requiring reliable, high-performance connectivity. Equipped with up to four WAN ports, it maximizes bandwidth, enhances redundancy, and ensures stable internet connections with intelligent load balancing and link backup. With advanced traffic control, bandwidth management, and comprehensive security features, the TL-R480T+ enables administrators to efficiently allocate network resources and safeguard critical applications. Its robust design and rack-mountable build make it a dependable choice for SMBs, enterprises, and multi-branch networks.
Dimensions
Height: 44 mm (1.7 in)
Width: 294 mm (11.6 in)
Depth/Thickness: 180 mm (7.1 in)
Technical Specifications
Standards and Protocols: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Processor Memory: 16 MB Flash, 128 MB DRAM
Interfaces:
-
1× Fixed WAN Port
-
1× Fixed LAN Port
-
3× Changeable WAN/LAN Ports
Network Media: -
10BASE-T: UTP Cat 3, 4, 5 (up to 100 m)
-
100BASE-TX: UTP Cat 5, 5e (up to 100 m)
Buttons: Reset Button
Power Supply: Internal Universal Power Supply, AC 100–240 V~ 50/60 Hz input
LED Indicators: PWR, SYS, WAN, LAN, WAN/LAN
Concurrent Sessions: 30,000
Features
-
Supports multiple WAN connection types: Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, BigPond Cable
-
Intelligent load balancing with policy routing and link backup for reliable redundancy
-
DHCP server and client with address reservation
-
Advanced NAT functions including One-to-One NAT and Multi-Nets NAT
-
Bandwidth control and session limit for optimized traffic management
-
Port-based VLAN, mirroring, and rate control
-
Security features include ALG (FTP/SIP/PPTP/IPsec/H.323), DoS defense, and Ping of Death protection
-
Access control with IP, MAC, URL, and web filtering
-
VPN and IPTV support with IGMP Proxy and IGMP Snooping
-
Comprehensive management: Dynamic DNS, SNMP, UPnP, system log, diagnostics, and remote management
Package Contents
TP-Link TL-R480T+ Router × 1
Power Cord × 1
RJ45 Ethernet Cable × 1
Installation Guide × 1
Rack-Mount Kit × 1
Model Number(s)
TL-R480T+
