Description

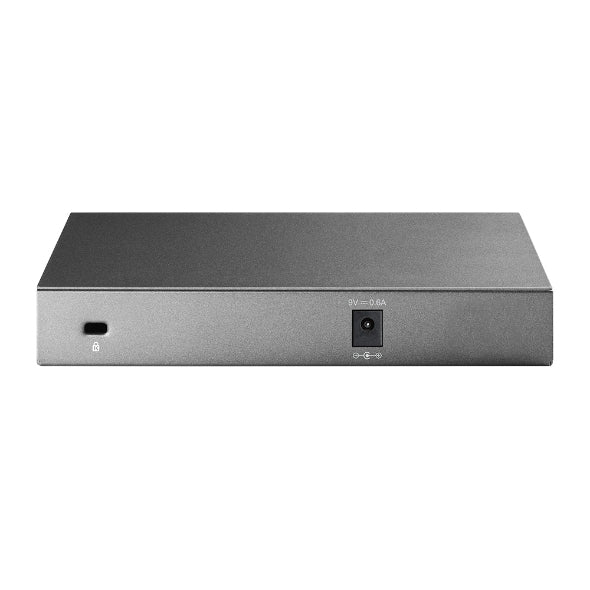

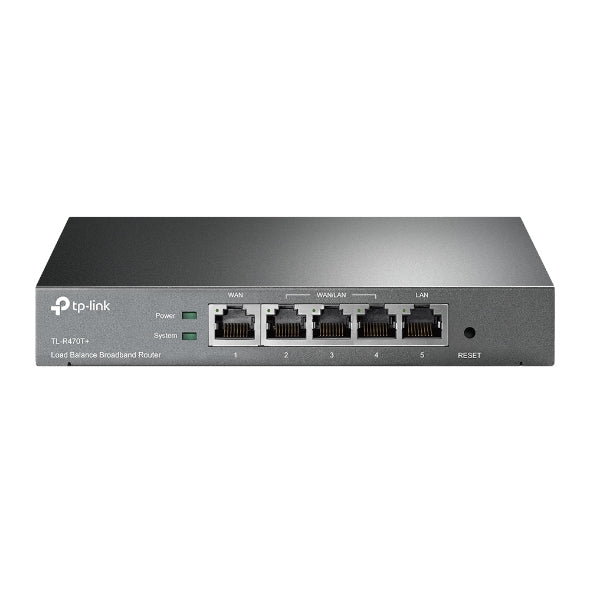

The TP-Link TL-R470T+ is a cost-effective load balance broadband router designed for small offices, internet cafés, and environments requiring stable multi-line internet access. With up to four WAN ports and advanced load balancing, it maximizes bandwidth utilization and ensures reliable backup connections. Featuring portal authentication for efficient access control, bandwidth management, and robust security features, the TL-R470T+ provides administrators with flexible tools to optimize performance and maintain a secure, stable network. Its compact design makes it ideal for space-conscious deployments without sacrificing capability.
Dimensions
Height: 25 mm (1.0 in)
Width: 158 mm (6.2 in)
Depth/Thickness: 101 mm (4.0 in)
Technical Specifications
Standards and Protocols: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Processor Memory: 16 MB Flash, 128 MB DRAM
Interfaces:
-
1× Fixed WAN Port
-
1× Fixed LAN Port
-
3× Changeable WAN/LAN Ports
Network Media: -
10BASE-T: UTP Cat 3, 4, 5 (up to 100 m)
-
100BASE-TX: UTP Cat 5, 5e (up to 100 m)
Buttons: Reset Button
Power Supply: External 9 V / 0.6 A DC Adapter
LED Indicators: PWR, SYS, WAN, LAN, WAN/LAN
Concurrent Sessions: 10,000
Features
-
Up to 4 WAN ports with intelligent load balancing and link backup
-
Portal authentication for efficient user access control
-
Bandwidth control and session limit per client
-
Advanced security including IP/MAC binding, ALG (FTP, SIP, PPTP, IPsec, H.323), and DoS defense
-
Access control with IP, MAC, URL, and web filtering
-
DHCP server and client with address reservation
-
Virtual Server, Port Triggering, and DMZ support
-
IGMP Proxy/Snooping for IPTV optimization
-
Static routing support for flexible deployment
-
Comprehensive management: SNMP, system logs, firmware upgrades, backup/restore, and remote management
Package Contents
TP-Link TL-R470T+ Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
R470T+
