Description

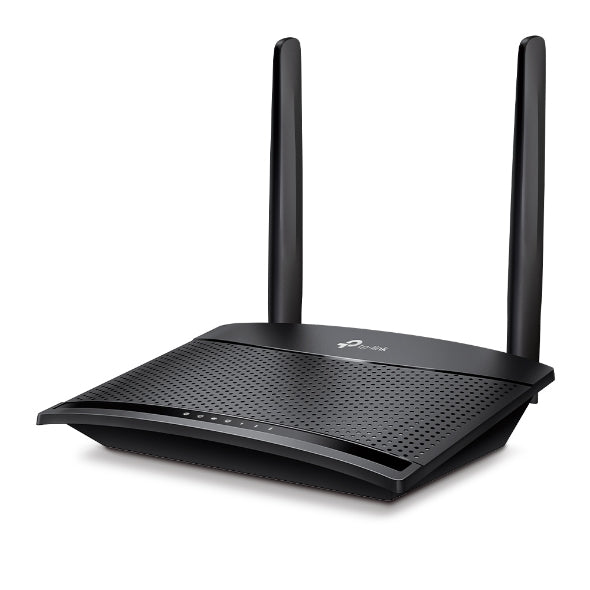

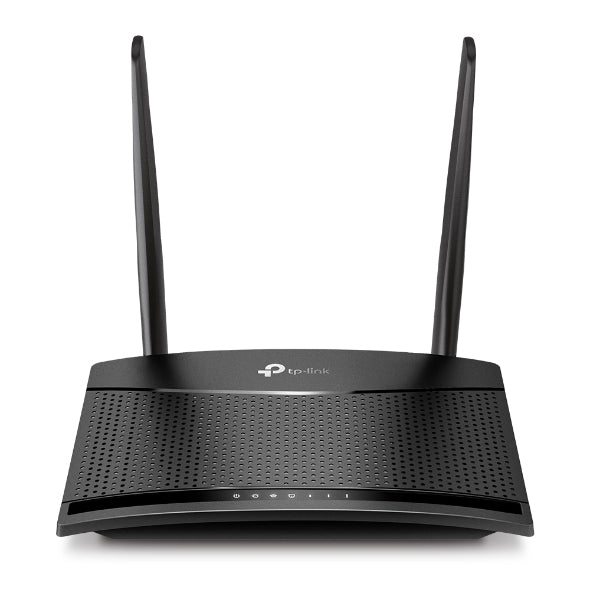

The TP-Link 300 Mbps Wireless N 4G LTE Router provides fast and stable mobile broadband, allowing you to share 4G LTE internet with up to 32 Wi-Fi devices simultaneously. With support for a wide range of global LTE bands, it ensures compatibility in over 100 countries. Featuring detachable external LTE antennas, this router delivers strong, stable connections, while its LAN/WAN port offers flexible wired broadband backup. Designed for simple plug-and-play SIM card setup, it is an ideal solution for home, office, or remote locations.
Dimensions
Height: 36 mm (1.42 in)
Width: 154 mm (6.06 in)
Depth: 114 mm (4.49 in)
Technical Specifications
Wireless Standard: IEEE 802.11b/g/n
Frequency Band: 2.4 GHz
Data Transfer Rate: 300 Mbps
Antennas: 2 × Detachable External 4G LTE Antennas

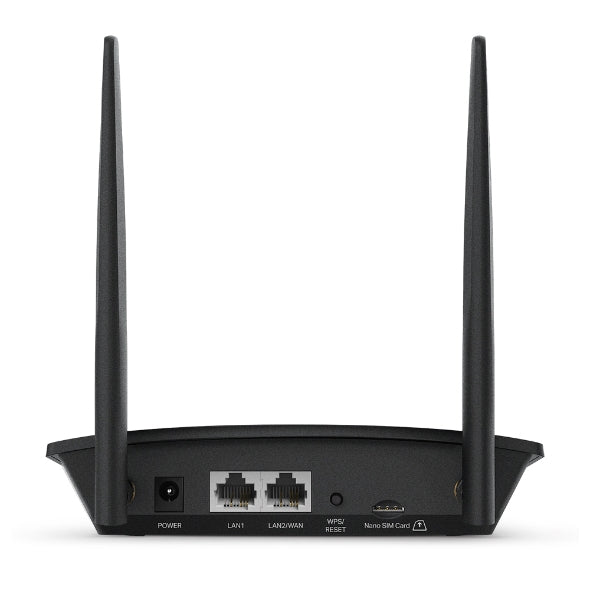

Ports: 1 × 10/100 Mbps LAN, 1 × 10/100 Mbps LAN/WAN, 1 × Nano SIM slot
Power Supply: 9V ⎓ 0.85A
Buttons: WPS/Reset
Network Compatibility
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Operating Modes
-
3G/4G Router Mode
-
Wireless Router Mode
Security
Encryption: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Firewall: IPv4 SPI Firewall, IP & MAC Binding
Guest Network: 2.4 GHz Guest Network
Software Features
Protocols: IPv4, IPv6
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
DHCP: Server, Client List, Address Reservation
NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
DDNS: DynDNS, NO-IP
Management: Local Management, Remote Management
Administration: Firmware Upgrade, Factory Default, System Log, Diagnostic Tools
Features
-
High-speed 4G LTE with download speeds up to 150 Mbps
-
Shares internet with up to 32 Wi-Fi devices
-
Two detachable LTE antennas for stronger, more stable connections
-
WAN failover support for wired broadband backup
-
Plug-and-play SIM card setup with global compatibility
-
Easy configuration and management through web or app interface
Package Contents
-
300 Mbps Wireless N 4G LTE Router × 1
-
Power Adapter × 1
-
RJ45 Ethernet Cable × 1
-
Quick Installation Guide × 1
-
Nano SIM Card (required, not included)
Model Number(s)
MR100
