Description

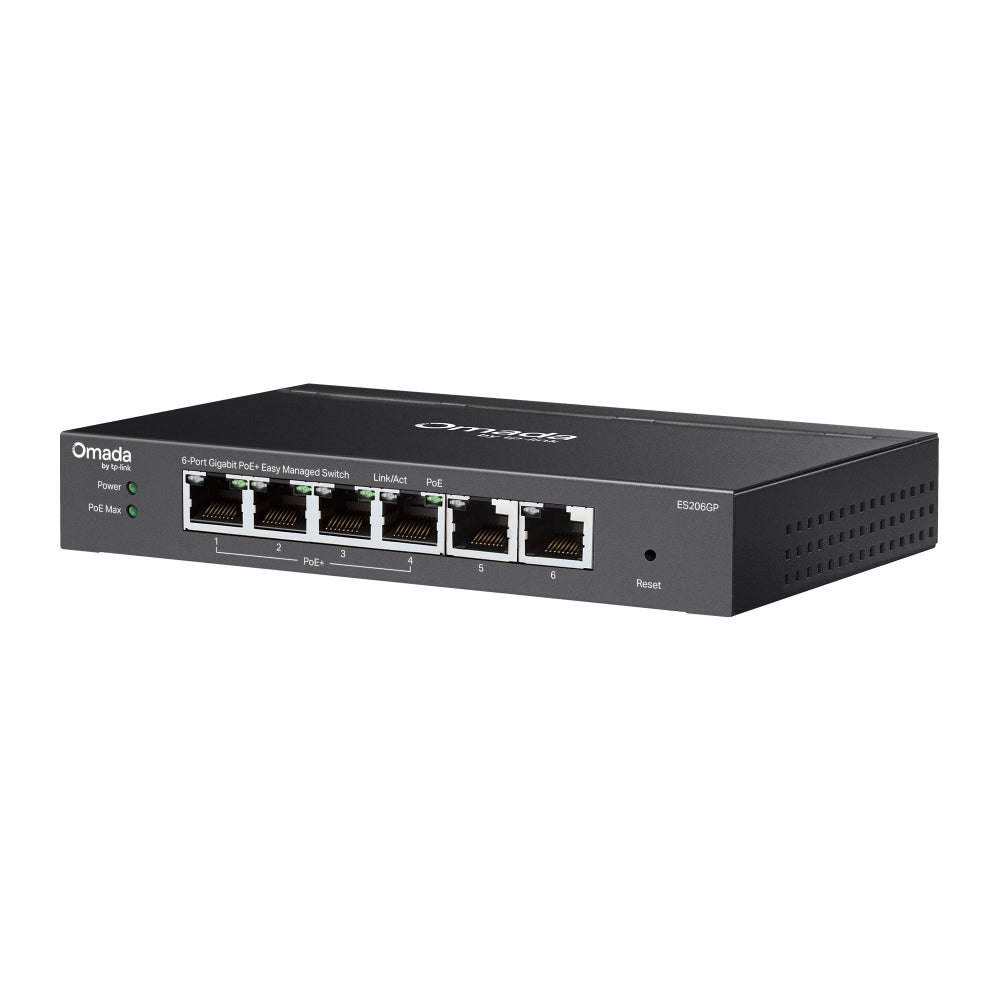

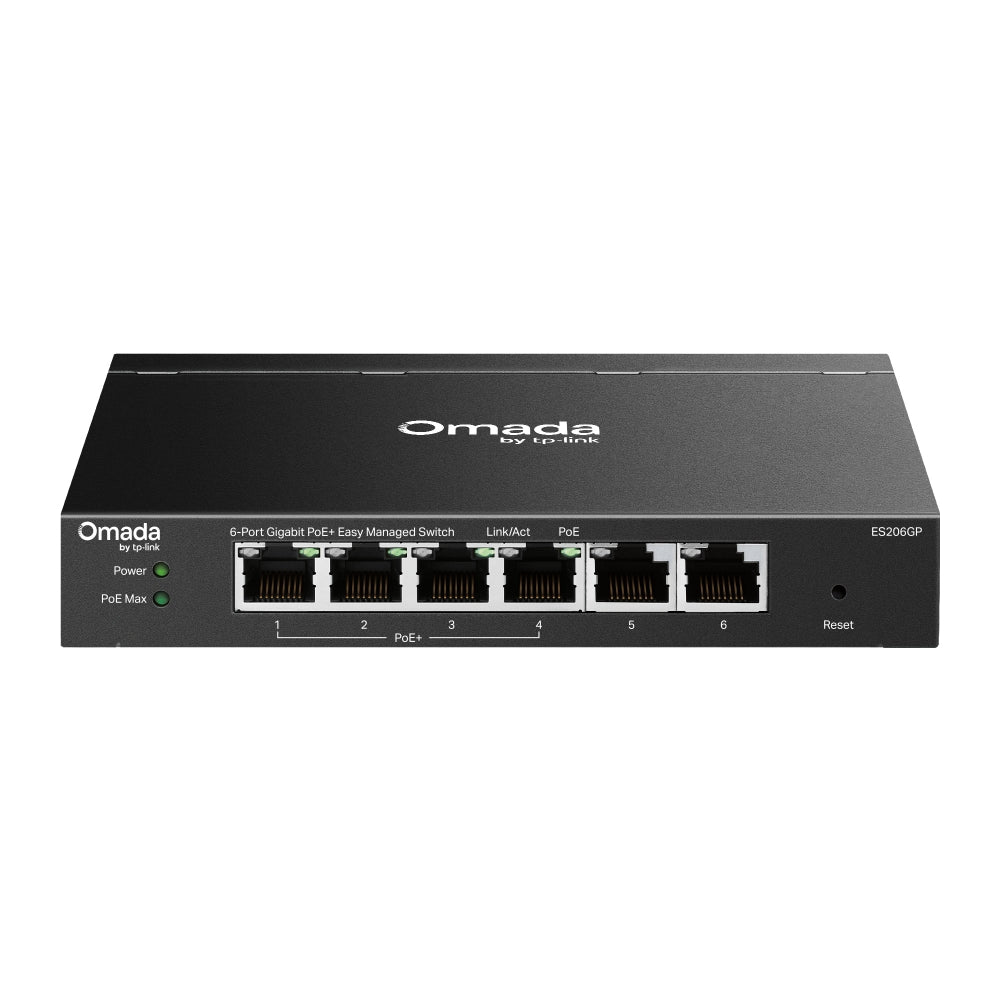

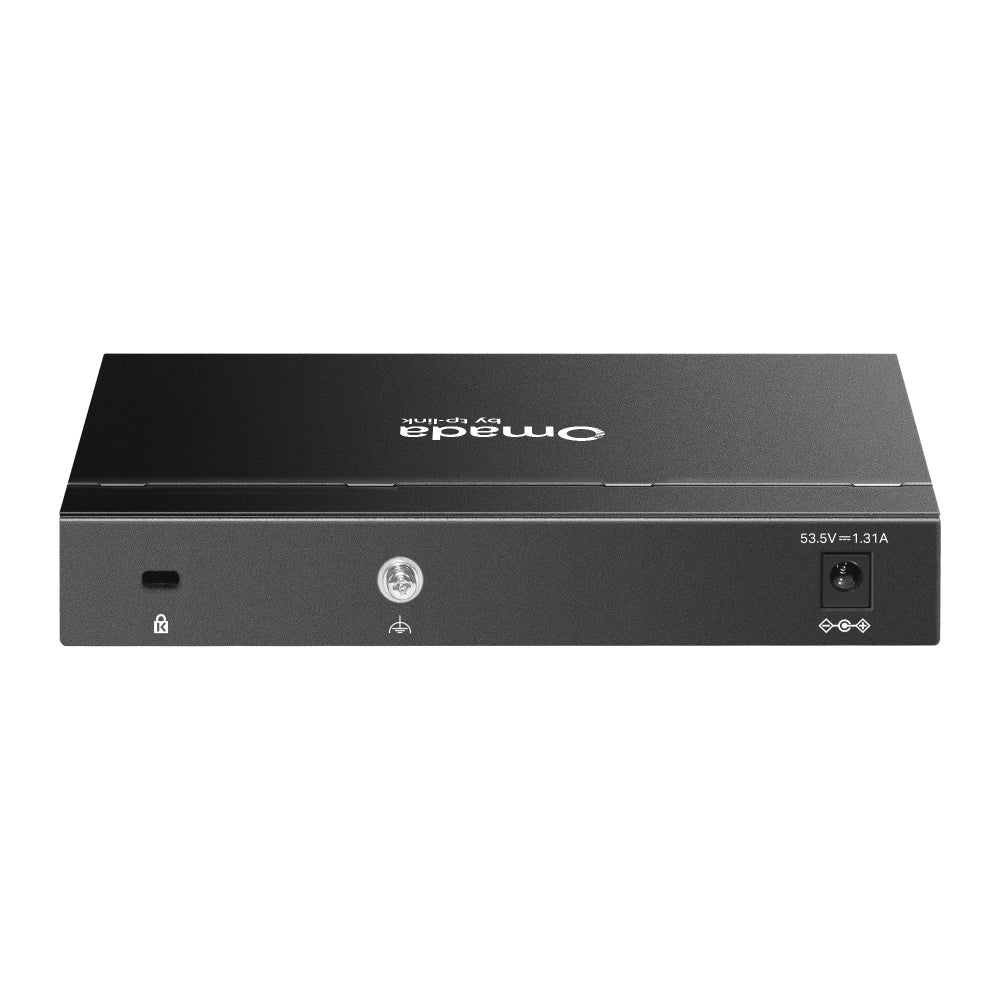

The TP-Link ES206GP is an Omada 6-port Gigabit easy managed switch with four 802.3af/at-compliant PoE+ ports and a 65W power budget, purpose-built for surveillance and small business networks. Transmit data and power over a single cable to IP cameras, access points and IP phones – with PoE Extend Mode reaching up to 250 m (820 ft). Free centralized cloud management via the web or the Omada app, a fanless metal chassis and PoE Auto Recovery keep your network quiet, tough and always online.
Technical Specifications
- Interface: 6× 10/100/1000 Mbps RJ45 ports (4× 802.3af/at-compliant PoE+), Auto-Negotiation, Auto-MDI/MDIX
- PoE Budget: 65W total, up to 30W per port
- PoE Transmission: Up to 250 m (820 ft) in Extend Mode; Fast PoE and Perpetual PoE supported
- Switching Capacity: 12 Gbps
- Packet Forwarding Rate: 8.93 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4 Mbit; Jumbo Frame: 15 KB
- Management: Centralized cloud management via web or Omada app
- Software Features: VLAN, QoS (port-based/802.1p/DSCP), IGMP Snooping, Automatic Loop Prevention, Port Isolation, PoE Auto Recovery
- Power Supply: AC/DC adapter (Input: 100-240V AC; Output: 53.5V DC / 1.31A)
- Surge Protection: ±6 kV; Fanless design; metal casing
- Mounting: Desktop or wall mount
- Dimensions: 158 × 101 × 25 mm
Features
- Four PoE+ ports auto-detect and power 802.3af/at devices such as IP cameras and access points
- PoE Extend Mode delivers power and data up to 250 m for long surveillance runs
- Free Omada centralized cloud management with one-click adoption and Zero-Touch Provisioning
- PoE Auto Recovery and remote camera reboot keep surveillance devices online
- Fanless design with durable metal casing for silent, reliable operation
Package Contents
- ES206GP
- Power Adapter
- Power Cord
- Mounting Feet
- Installation Guide
Part Number(s)
TL-ES206GP (ES206GP)
