Description

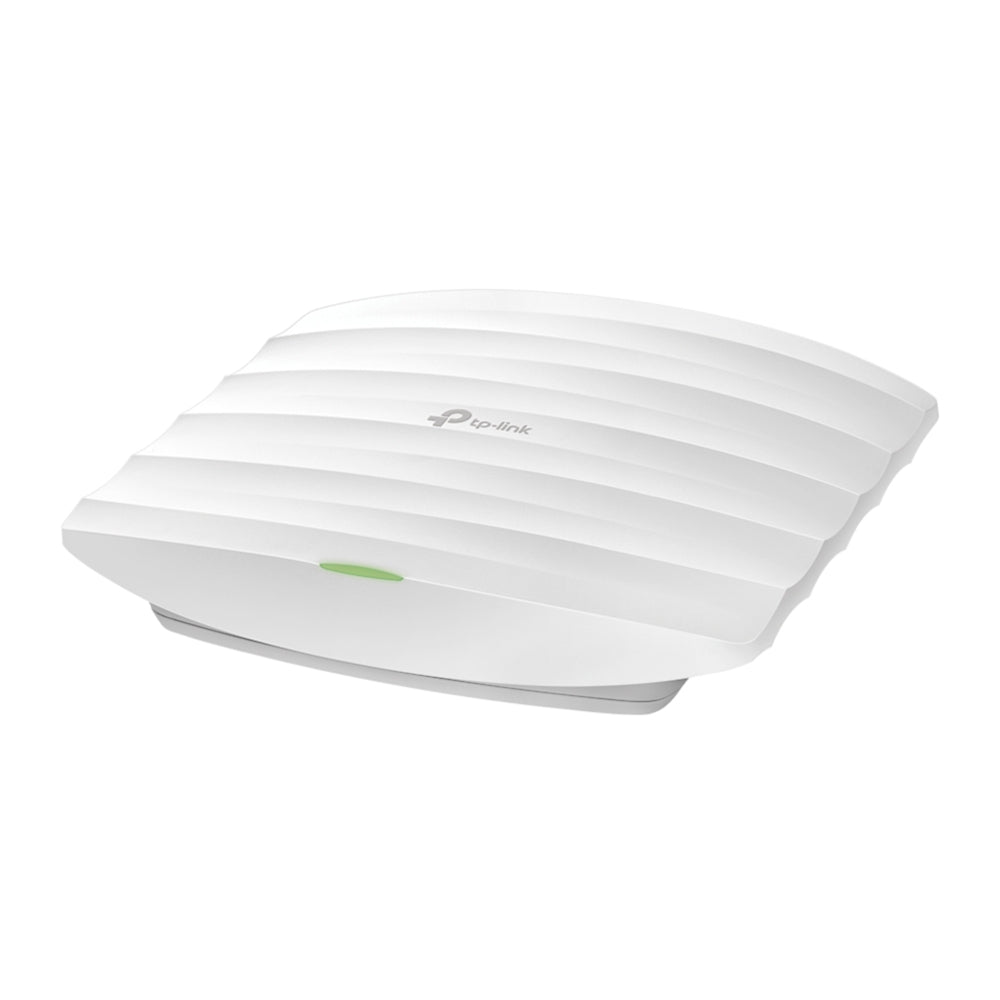

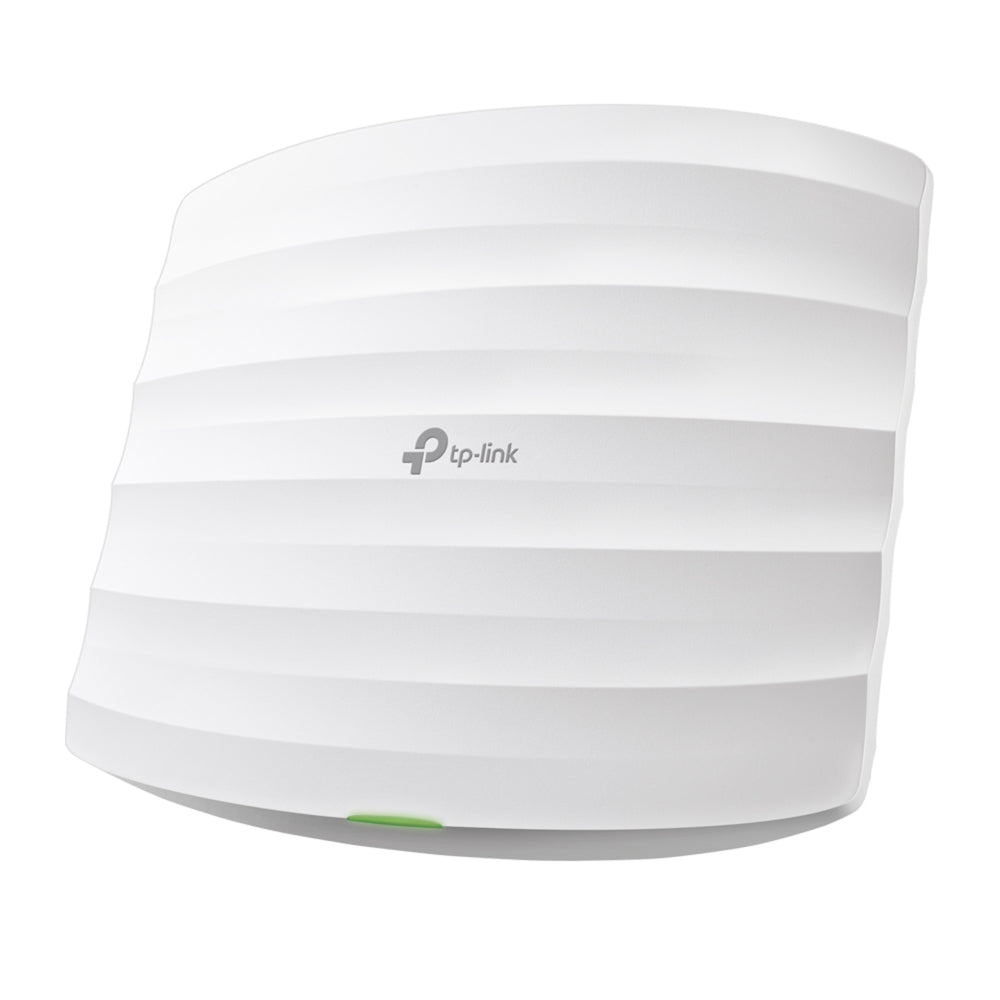

The TP-Link EAP245 is a business-class AC1750 wireless dual band gigabit ceiling mount access point built for offices, hotels and high-density environments. Enterprise-grade chipsets, high-power amplifiers and 802.11ac Wave 2 MU-MIMO deliver simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz. Fully integrated into the Omada SDN platform, it supports centralized cloud management, Zero-Touch Provisioning and seamless roaming so video calls and streams continue uninterrupted as users move.
Technical Specifications
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Wireless Speed: AC1750 dual band – up to 1300 Mbps (5 GHz) + 450 Mbps (2.4 GHz)

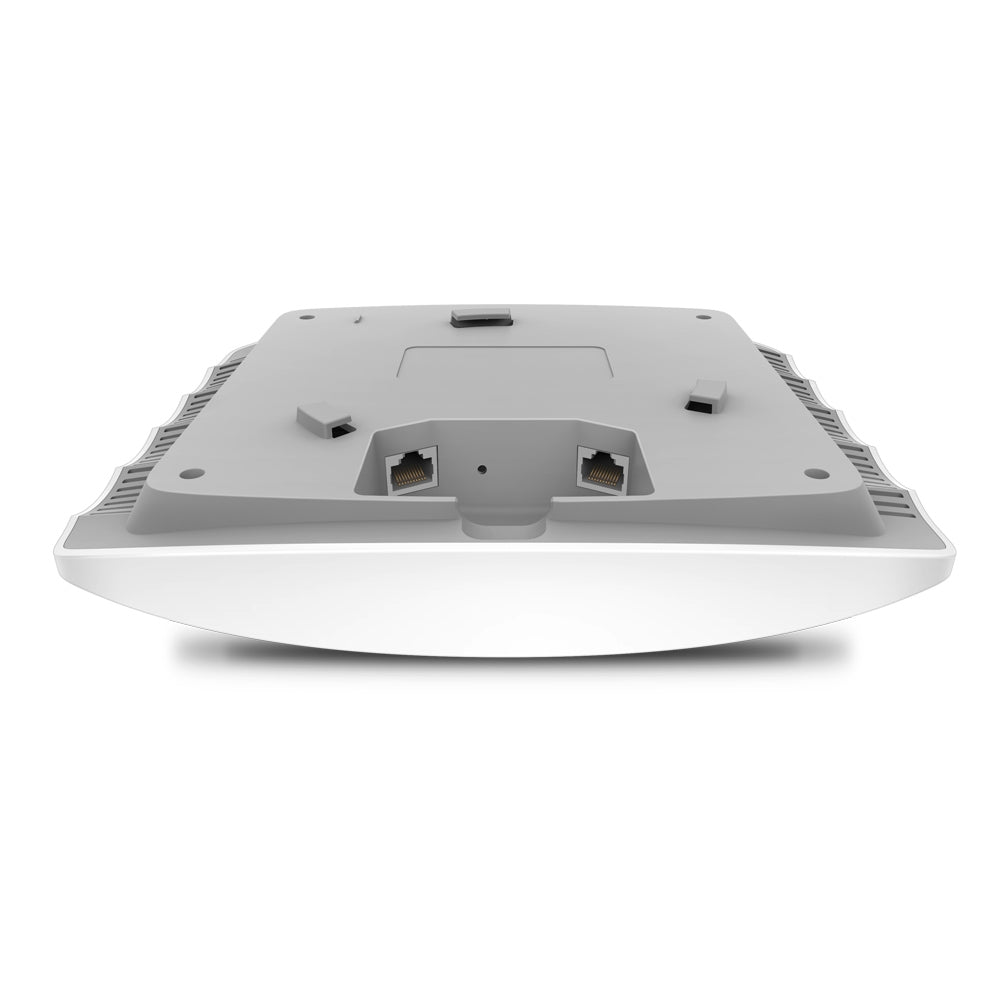

- Interface: 2× Gigabit RJ45 ports (one supports IEEE 802.3at PoE in, one supports Passive PoE out)
- Power Supply: 802.3at PoE or 48V Passive PoE (PoE adapter included)
- Antennas: Internal omni – 2.4 GHz: 3× 3.5 dBi, 5 GHz: 3× 4 dBi
- Coverage: Up to 140 m² (1,500 ft²) with 220+ concurrent clients
- Wireless Technologies: MU-MIMO, Beamforming, Band Steering, Airtime Fairness
- Roaming: 802.11k/v seamless roaming
- Mounting: Ceiling/wall mounting (kits included)
- Dimensions: 205.5 × 181.5 × 37.1 mm
Features
- Integrated into Omada SDN with centralized cloud management via web or Omada app
- Zero-Touch Provisioning (ZTP) for remote deployment without on-site configuration
- Secure guest network with multiple authentication options including SMS and voucher
- Seamless roaming keeps VoIP calls and video conferences uninterrupted between APs
- Flexible PoE support (802.3at and Passive PoE) simplifies installation anywhere
Package Contents
- AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
- Gigabit 48V Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
Part Number(s)
EAP245
