Description

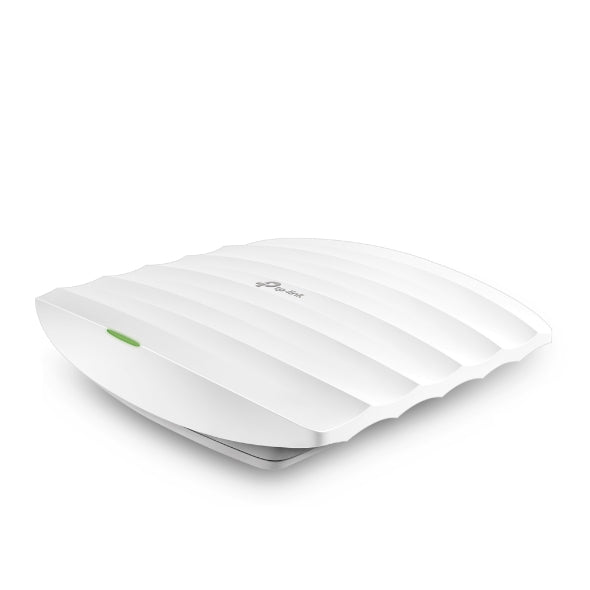

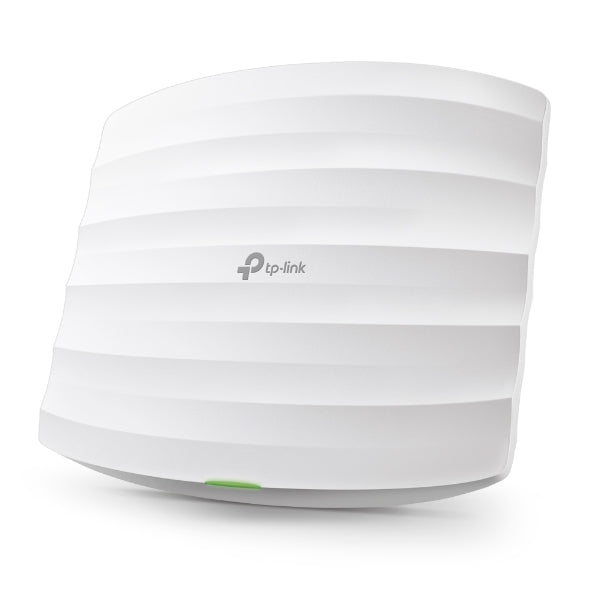

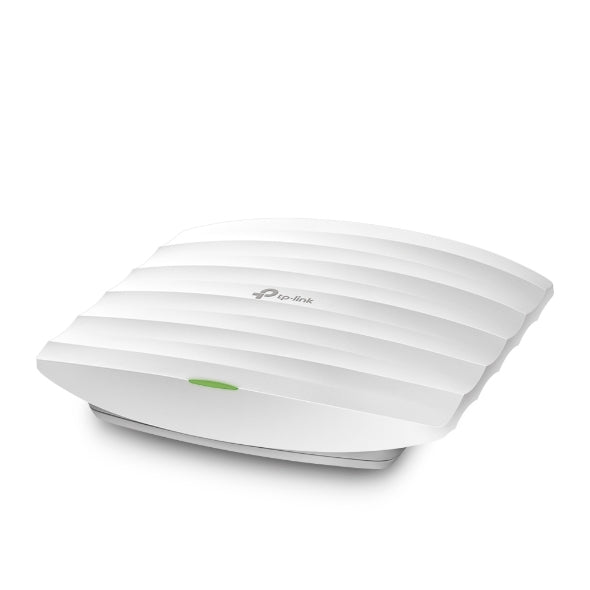

The AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point delivers fast, stable, and scalable Wi-Fi with dual-band speeds up to 1317 Mbps. Integrated into the Omada SDN platform, it enables centralized cloud management, zero-touch provisioning, and intelligent monitoring for simplified network operations. Equipped with advanced wireless technologies such as MU-MIMO, Band Steering, Airtime Fairness, and Beamforming, it ensures seamless roaming and optimized performance in high-density environments. With PoE support, secure guest networking, and versatile installation, the EAP225 is ideal for business, education, and hospitality networks.
Dimensions
Height: 37.1 mm (1.5 in)
Width: 181.5 mm (7.1 in)
Depth/Thickness: 205.5 mm (8.1 in)
Technical Specifications
Wireless Standard: IEEE 802.11ac/n/g/b/a
Frequency Band: 2.4 GHz and 5 GHz
Data Transfer Rate: 450 Mbps (2.4 GHz), 867 Mbps (5 GHz)
Ports: 1 × Gigabit Ethernet (RJ-45, supports IEEE 802.3af/at PoE and Passive PoE)
Antennas: 3 × internal omni (2.4 GHz: 4 dBi, 5 GHz: 5 dBi)
Power Supply: IEEE 802.3af/at PoE, 24V Passive PoE (adapter included)
Max. Power Consumption: EU: 10.5W, US: 12.6W
Operating Modes: Access Point
Buttons: Reset
Transmission Power: CE ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz); FCC ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)
Mounting Options: Ceiling or wall (kits included)
Certifications: CE, FCC, RoHS
Features
Dual-band AC1350 Wi-Fi with combined speeds up to 1317 Mbps
Omada SDN integration for centralized cloud management and zero-touch provisioning
Seamless roaming for uninterrupted streaming and calls across access points
Advanced wireless technologies: MU-MIMO, Band Steering, Airtime Fairness, Beamforming
Multiple SSIDs (up to 16, 8 per band) with VLAN mapping
Captive portal authentication and advanced wireless security protocols
Load balancing for optimal client distribution in high-density environments
Flexible power options with 802.3af/at PoE and Passive PoE support
Package Contents
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 × 1
Passive PoE Adapter × 1
Power Cord × 1
Mounting Kits × 1
Installation Guide × 1
Model Number(s)
EAP225
