Description

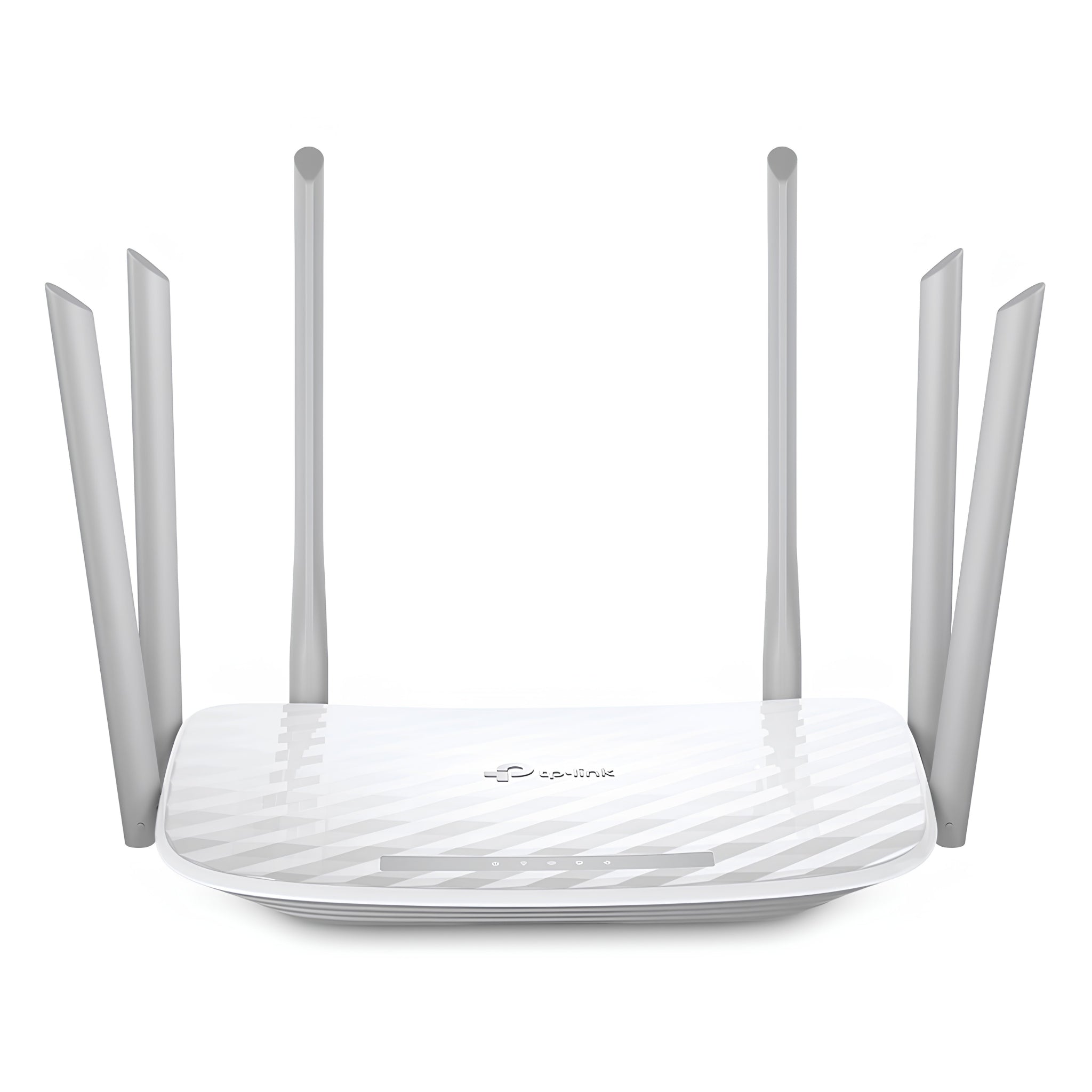

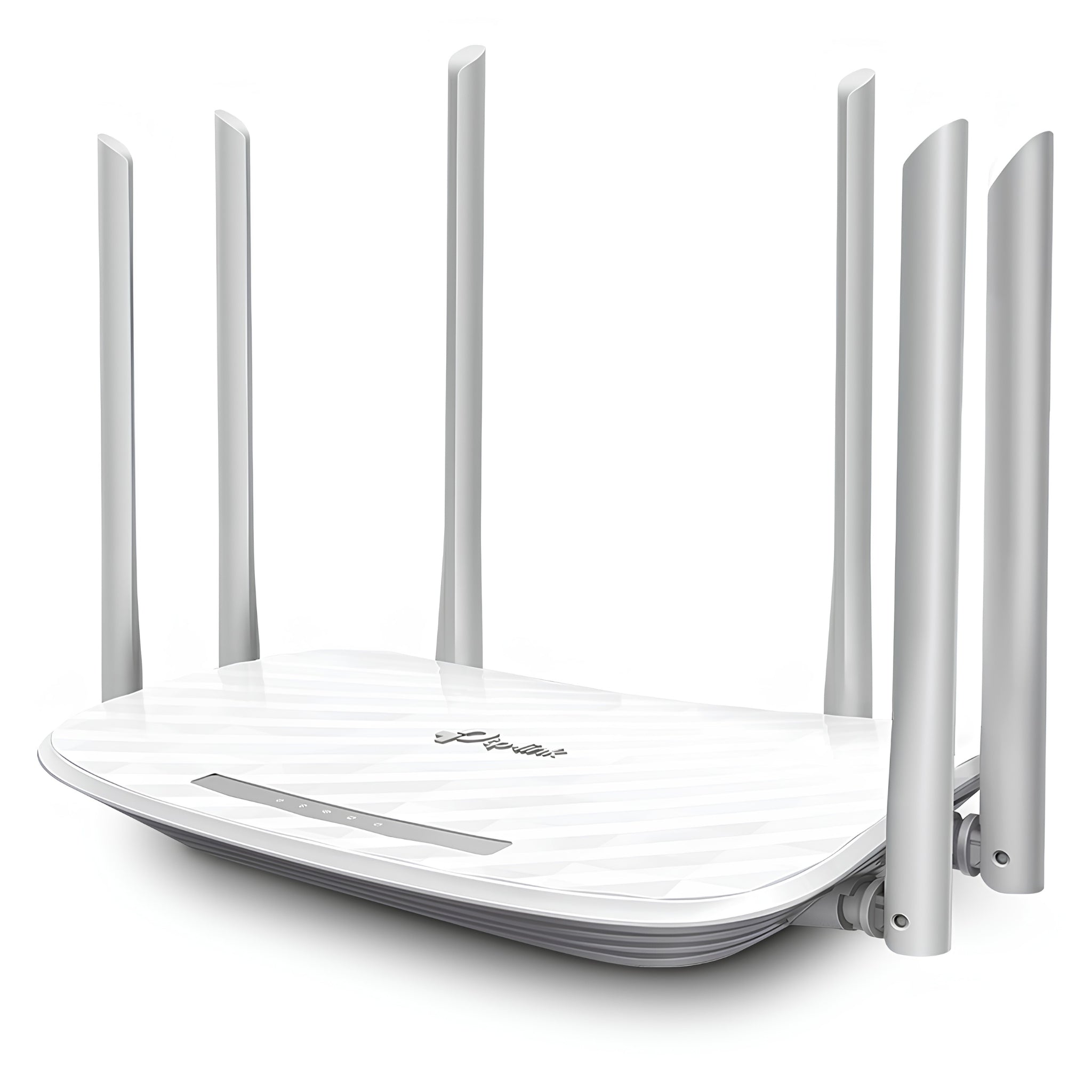

The TP-Link Archer C86 AC1900 Wi-Fi Router delivers fast and stable dual-band wireless networking for homes, offices, and demanding multi-device environments. Equipped with six high-performance antennas and MU-MIMO technology, this router enhances wireless coverage, improves network efficiency, and supports smooth streaming, gaming, and remote work connectivity. Its durable construction, Gigabit Ethernet ports, and advanced security features make it a reliable networking solution for everyday high-speed internet usage.
Dimensions
Length: 229.9 mm (9.1 in)
Width: 144.2 mm (5.7 in)
Height: 37.2 mm (1.5 in)
Technical Specifications
Type: Dual-Band Wi-Fi Router
Material: High-durability plastic housing
Color: White
Wireless Standard: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
WiFi Speed:
• 1300 Mbps on 5 GHz
• 600 Mbps on 2.4 GHz
WiFi Capacity: Medium
Frequency: 2.4 GHz and 5 GHz
Antenna: 6 × Fixed High-Performance Antennas
Wireless Technology: 3×3 MU-MIMO, Beamforming, Airtime Fairness
Working Modes: Router Mode, Access Point Mode

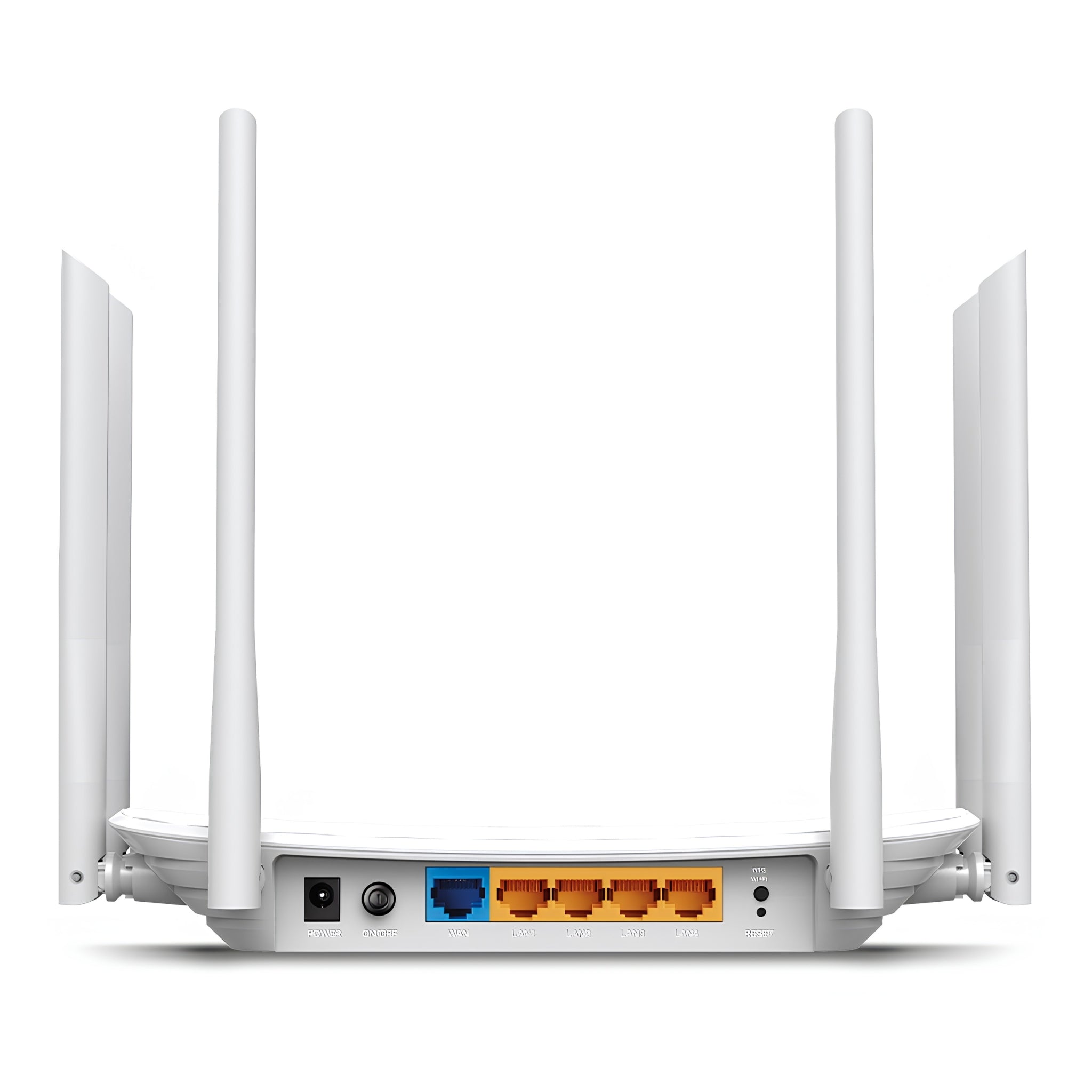

Ethernet Ports:
• 1 × Gigabit WAN Port
• 4 × Gigabit LAN Ports
Wireless Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network:
• 1 × 5 GHz Guest Network
• 1 × 2.4 GHz Guest Network
Protocols: IPv4, IPv6
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device
Mesh Support: OneMesh™, EasyMesh
Management Features: Tether App, Webpage Management
Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
Power Supply:
• US Version: 12V ⎓ 1.5A
• EU Version: 12V ⎓ 1A
Certification: FCC, CE, RoHS
Features
● AC1900 dual-band Wi-Fi provides high-speed wireless connectivity for streaming, gaming, and office productivity
● MU-MIMO and Beamforming technologies improve network efficiency and extend wireless coverage
● Six high-performance antennas help deliver stable signals across larger homes and office spaces
● Gigabit WAN and LAN ports support fast wired network connections for multiple devices
● Supports OneMesh™ and EasyMesh for seamless whole-home Wi-Fi expansion
● Advanced WPA3 encryption enhances wireless network security and device protection
Package Contents
● TP-Link Archer C86 Wi-Fi Router × 1
● Power Adapter × 1
● RJ45 Ethernet Cable × 1
● Quick Installation Guide × 1
System Requirements
● Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
● Cable or DSL Modem (if required)
● Active internet subscription with an internet service provider
Part Number(s)
TL-AC1900
