Description

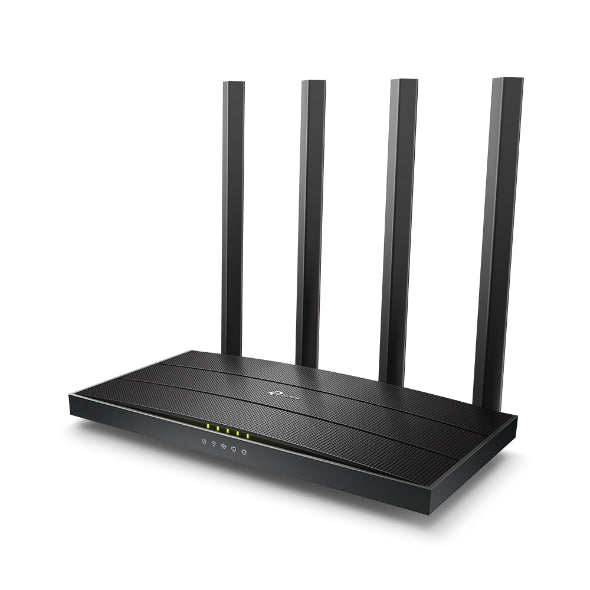

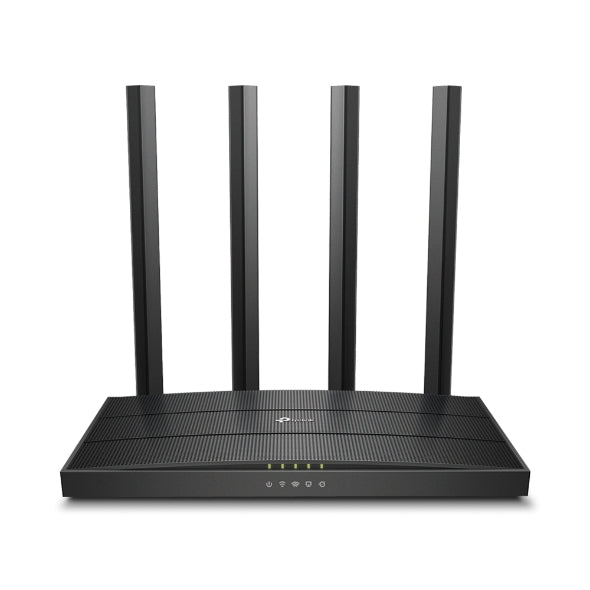

The TP-Link Archer C80 is a high-performance AC1900 MU-MIMO Wi-Fi router designed to deliver fast, stable, and efficient wireless connectivity. With speeds up to 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band, it ensures smooth streaming, gaming, and browsing across multiple devices. Equipped with 3×3 MU-MIMO technology, beamforming, and Airtime Fairness, the Archer C80 optimizes performance for busy households. Advanced features such as Parental Controls, Guest Network, Access Control, and EasyMesh compatibility provide flexibility, security, and seamless whole-home coverage.
Dimensions
Height: 32 mm (1.26 in)
Width: 215 mm (8.5 in)
Depth/Thickness: 117 mm (4.6 in)
Technical Specifications
Wireless Standard: Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AC1900 (1300 Mbps on 5 GHz, 600 Mbps on 2.4 GHz)
Processor: 1.2 GHz CPU

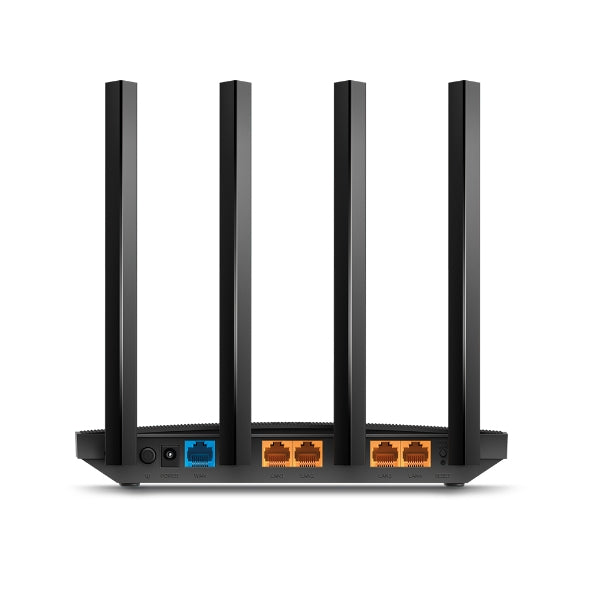

Ports: 1× Gigabit WAN, 4× Gigabit LAN
Antennas: 4× Fixed High-Performance Antennas
Power Supply:
EU Version: 12 V ⎓ 1 A
Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Operating Modes: Router Mode, Access Point Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: MU-MIMO, Beamforming, Airtime Fairness, Guest Network, Smart Connect, EasyMesh-Compatible
Features
-
AC1900 dual-band speeds with 3×3 MIMO technology
-
MU-MIMO for efficient multi-device communication
-
Beamforming technology for stronger, more reliable connections
-
Airtime Fairness to optimize performance across devices
-
EasyMesh-compatible for expandable whole-home coverage
-
Advanced parental controls and network management tools
-
Supports IPv4 and IPv6
Package Contents
TP-Link Archer C80 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
C80
