Description

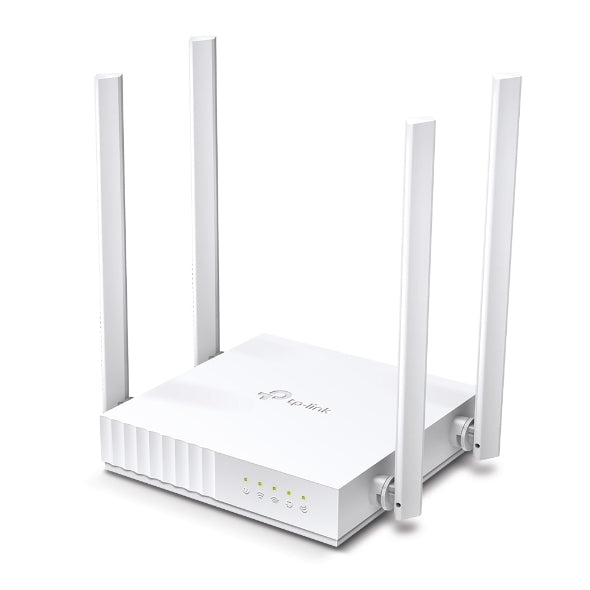

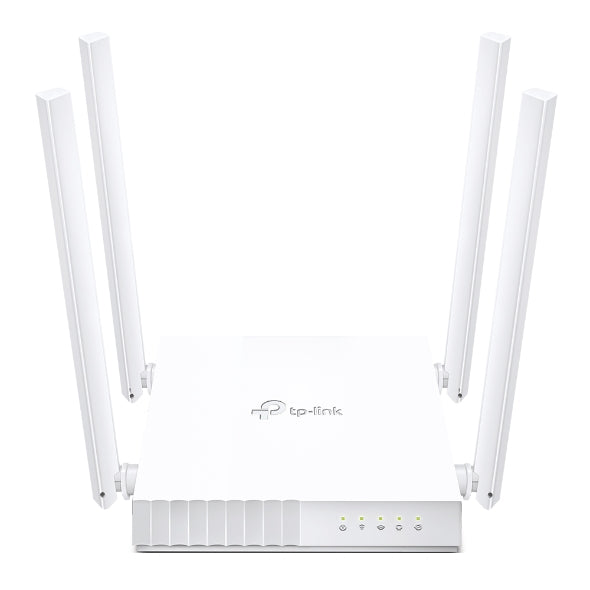

The TP-Link Archer C24 is an AC750 dual-band Wi-Fi router that delivers high-speed connectivity, ideal for HD video streaming, online gaming, and fast downloads. With 433 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, it provides reliable performance across multiple devices. Four external antennas ensure wide coverage and stable connections, while multi-mode functionality allows it to operate as a router, access point, or range extender. With support for IPTV optimization, IPv6 compatibility, parental controls, and guest networks, the Archer C24 is a versatile and compact solution designed to fit seamlessly into any home.
Dimensions
Height: 24.3 mm (1.0 in)
Width: 115 mm (4.5 in)
Depth/Thickness: 106.7 mm (4.2 in)
Technical Specifications
Wireless Standard: Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AC750 (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Processor: Single-Core CPU

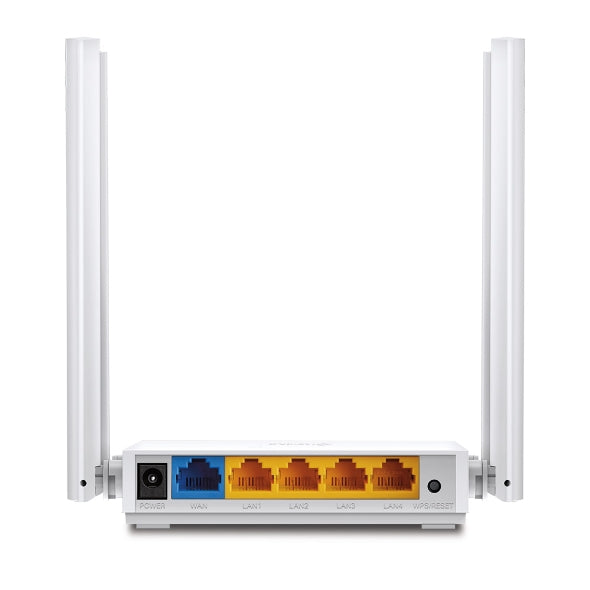

Ports: 1× 10/100 Mbps WAN, 4× 10/100 Mbps LAN
Antennas: 4× Fixed External Antennas
Power Supply: 9 V ⎓ 0.6 A
Security: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Operating Modes: Router Mode, Access Point Mode, Range Extender Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: Guest Network, IPTV Optimization (IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN), QoS by Device, IPv6 Supported
Features
-
AC750 dual-band speeds: 433 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
-
Four antennas for strong coverage and stable performance
-
3-in-1 modes: Router, Access Point, Range Extender
-
Parental Controls with URL filtering and time management
-
Guest Network for secure shared access
-
IPTV streaming optimization with IGMP Proxy/Snooping, Bridge, and VLAN Tagging
-
Compact, wall-mountable design to save space
Package Contents
TP-Link Archer C24 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
C24
