Description

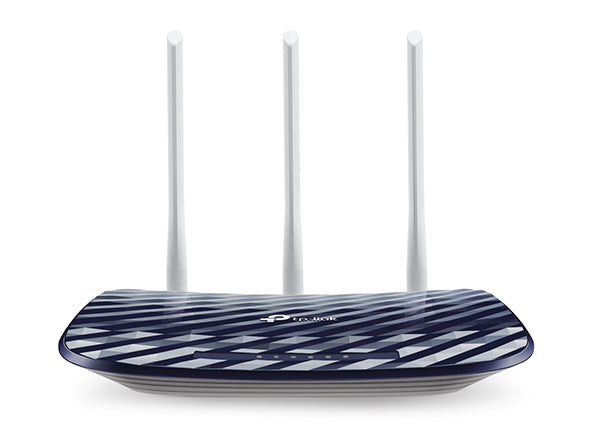

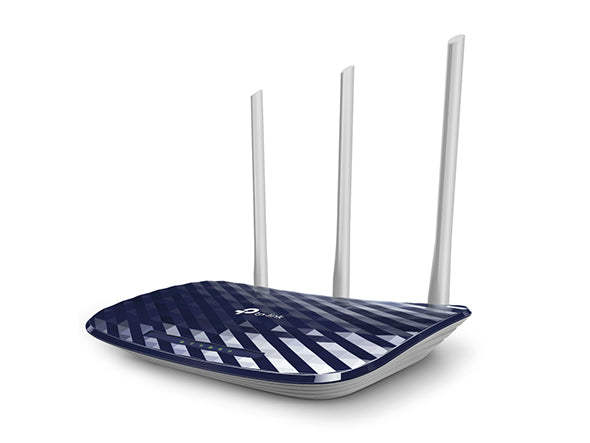

The TP-Link Archer C20 is an AC750 dual-band Wi-Fi router that brings reliable wireless performance to your home. Delivering 300 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, it ensures smooth streaming, browsing, and online gaming. Three external antennas provide strong coverage, while EasyMesh and OneMesh support allow for seamless whole-home expansion. With features like Parental Controls, Guest Network, and IPTV optimization, the Archer C20 combines speed, stability, and flexibility in a compact design that’s easy to set up and manage with the TP-Link Tether app.
Dimensions
Height: 35 mm (1.4 in)
Width: 230 mm (9.1 in)
Depth/Thickness: 144 mm (5.7 in)
Technical Specifications
Wireless Standard: Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AC750 (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Processor: Single-Core CPU

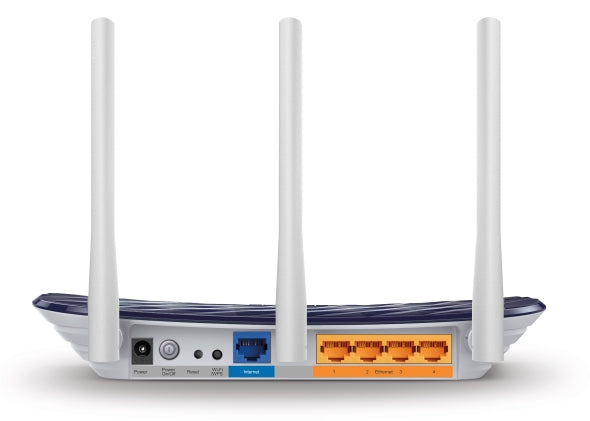

Ports: 1× 10/100 Mbps WAN, 4× 10/100 Mbps LAN
Antennas: 3× Fixed External Antennas
Power Supply: 9 V ⎓ 0.6 A
Security: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Operating Modes: Router Mode, Access Point Mode, Range Extender Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: EasyMesh and OneMesh support, Guest Network, QoS by Device, IPTV Optimization (IGMP Proxy, IGMP Snooping), Cloud Services with OTA Updates
Features
-
AC750 dual-band speeds: 433 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
-
Three antennas for stronger coverage and stable performance
-
EasyMesh and OneMesh support for seamless whole-home Wi-Fi
-
Guest Network for secure shared access
-
Parental Controls with URL filtering and time management
-
IPTV streaming optimization with IGMP Proxy/Snooping
-
Easy setup and management via the TP-Link Tether app
Package Contents
TP-Link Archer C20 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
C20
