Description

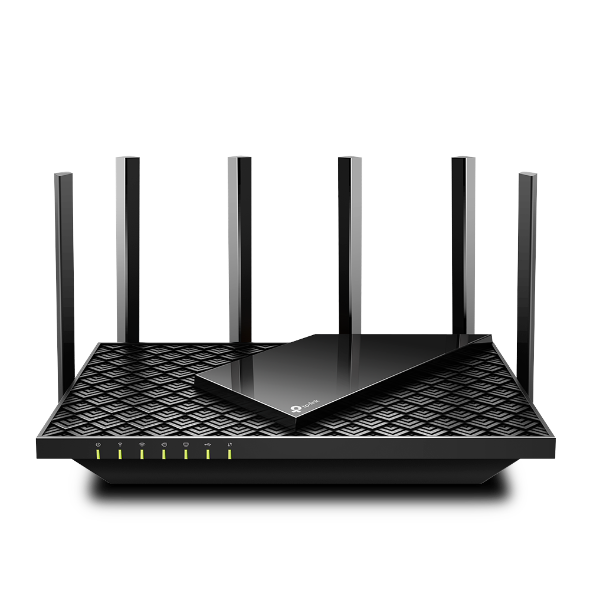

The TP-Link Archer AX72 is a high-performance AX5400 dual-band Wi-Fi 6 router designed for ultra-fast, reliable connectivity. With speeds of up to 4804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, it delivers smooth 8K streaming, lag-free gaming, and fast downloads across multiple devices. Equipped with 6 antennas, Beamforming, and high-power amplification, it ensures extensive coverage throughout your home. Supporting MU-MIMO, OFDMA, and 6 simultaneous streams, it connects over 100 devices efficiently. With advanced security powered by TP-Link HomeShield, USB 3.0 media sharing, and EasyMesh compatibility, the Archer AX72 offers a powerful solution for modern smart homes.
Dimensions
Height: 49.2 mm (1.9 in)
Width: 272.5 mm (10.7 in)
Depth/Thickness: 147.2 mm (5.8 in)
Technical Specifications
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AX5400 (4804 Mbps on 5 GHz, 574 Mbps on 2.4 GHz)
Processor: 1 GHz Dual-Core CPU

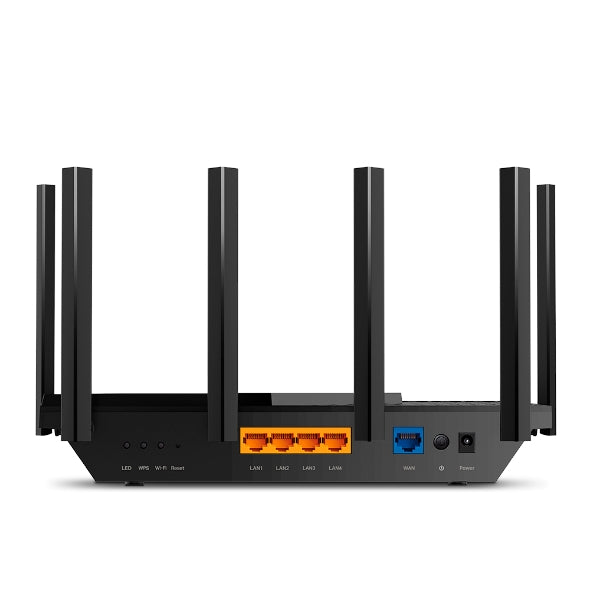

Ports: 1× Gigabit WAN, 4× Gigabit LAN, 1× USB 3.0
Antennas: 6× Fixed High-Performance Antennas
Power Supply: 12 V ⎓ 2.5 A
Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control, HomeShield Security Suite
Operating Modes: Router Mode, Access Point Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: MU-MIMO, OFDMA, Beamforming, DFS, Airtime Fairness, 6 Streams, EasyMesh, OneMesh support, Guest Network, VPN Server (OpenVPN, PPTP), VPN Client (OpenVPN, PPTP, L2TP)
USB Sharing: NTFS, exFAT, HFS+, FAT32 supported; Apple Time Machine, FTP Server, Samba Server, Media Server
Features
-
AX5400 dual-band Wi-Fi 6 for speeds up to 5.4 Gbps
-
Connects 100+ devices with MU-MIMO and OFDMA
-
6 high-performance antennas with Beamforming for wide coverage
-
TP-Link HomeShield security for advanced network and IoT protection
-
EasyMesh-compatible for flexible whole-home Wi-Fi coverage
-

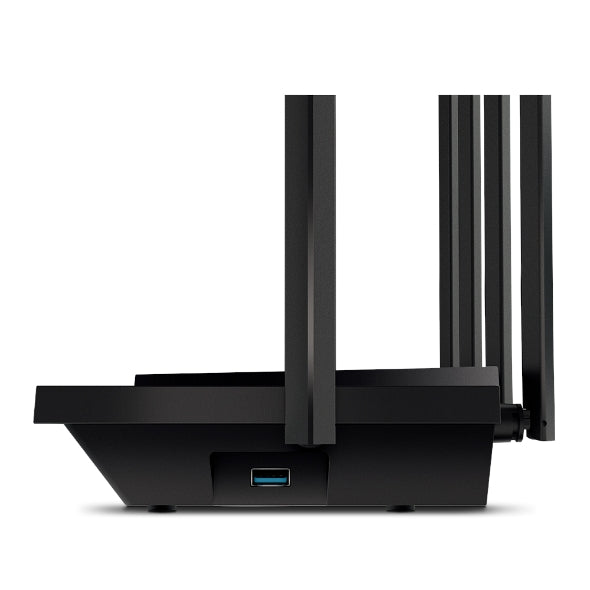

USB 3.0 port for file sharing and private cloud storage
-
Supports VPN server and client modes for secure remote access
-
Easy setup and management via TP-Link Tether app
Package Contents
TP-Link Archer AX72 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
AX72
