Description
The TP-Link Archer AX55 is a next-generation AX3000 dual-band Wi-Fi 6 router designed to deliver faster speeds, greater capacity, and enhanced efficiency for modern households. Offering up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, it supports smooth 4K/8K streaming, responsive gaming, and fast downloads. Equipped with OFDMA, Beamforming, and four high-gain antennas, it ensures strong, reliable coverage throughout the home. With advanced TP-Link HomeShield security, VPN support, USB 3.0 sharing, and EasyMesh compatibility, the Archer AX55 combines powerful performance, intelligent features, and flexible whole-home scalability.
Dimensions
Height: 41.0 mm (1.5 in)
Width: 261.1 mm (10.2 in)
Depth/Thickness: 134.5 mm (5.3 in)
Technical Specifications
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AX3000 (2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz)
Processor: Dual-Core CPU

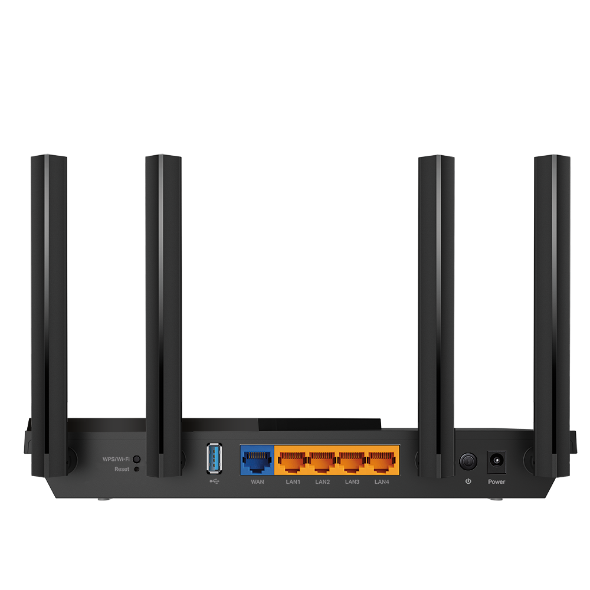

Ports: 1× Gigabit WAN, 4× Gigabit LAN, 1× USB 3.0
Antennas: 4× Fixed High-Performance Antennas
Power Supply: 12 V ⎓ 2 A
Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control, HomeShield Security Suite
Operating Modes: Router Mode, Access Point Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: MU-MIMO, OFDMA, Beamforming, DFS, Airtime Fairness, 4 Streams, EasyMesh, OneMesh support, Guest Network, VPN Server (OpenVPN, PPTP), VPN Client (OpenVPN, PPTP, L2TP)
USB Sharing: NTFS, exFAT, HFS+, FAT32 supported; Apple Time Machine, FTP Server, Samba Server, Media Server
Features
-
AX3000 dual-band Wi-Fi 6 with speeds up to 3 Gbps
-
Four high-gain antennas and Beamforming for expanded coverage
-
OFDMA and Airtime Fairness for high device capacity and efficient performance
-
TP-Link HomeShield for advanced security and parental controls
-
EasyMesh-compatible for seamless whole-home coverage
-
VPN server and client support for secure connections
-
USB 3.0 port for file sharing and private cloud storage
-
Alexa compatibility for smart voice control
Package Contents
TP-Link Archer AX55 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
AX55
