Description

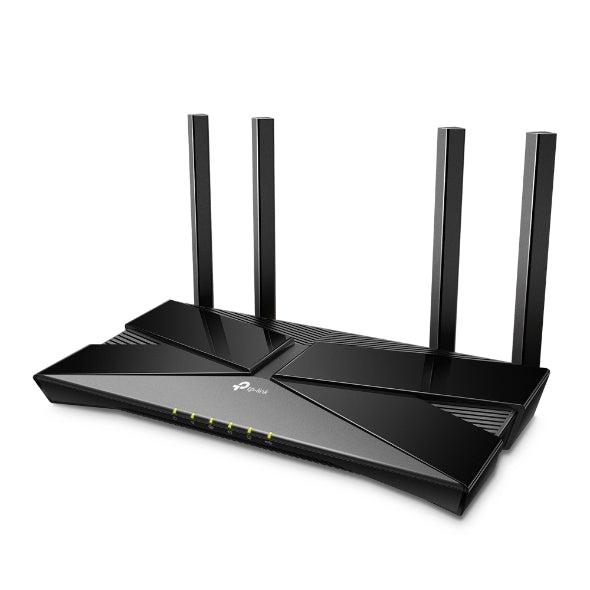

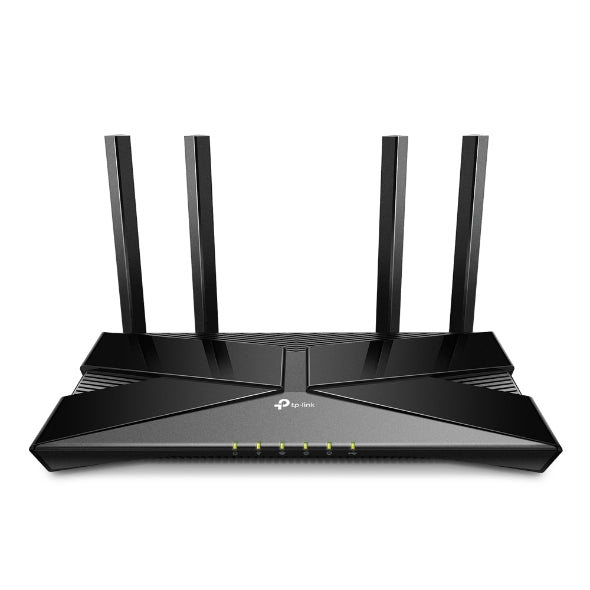

The TP-Link Archer AX20 is an AX1800 dual-band Wi-Fi 6 router designed to bring faster speeds, improved capacity, and reduced network congestion to modern households. Offering up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, it delivers smooth streaming, gaming, and downloads without buffering. With four high-performance antennas, Beamforming, and high-power amplification, the Archer AX20 ensures strong coverage throughout the home. Equipped with Wi-Fi 6 technologies like OFDMA, Target Wake Time, and 4 simultaneous streams, it provides efficient connections for multiple devices while extending battery life. OneMesh compatibility allows flexible whole-home expansion, while USB file sharing and VPN support add convenience and security.
Dimensions
Height: 38.6 mm (1.5 in)
Width: 260.2 mm (10.2 in)
Depth/Thickness: 135.0 mm (5.3 in)
Technical Specifications
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AX1800 (1201 Mbps on 5 GHz, 574 Mbps on 2.4 GHz)
Processor: 1.5 GHz Quad-Core CPU

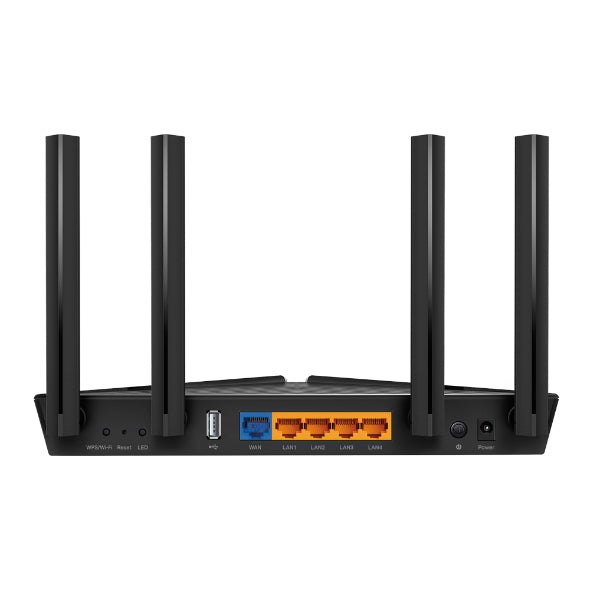

Ports: 1× Gigabit WAN, 4× Gigabit LAN, 1× USB 2.0
Antennas: 4× Fixed High-Performance Antennas
Power Supply: 12 V ⎓ 1.5 A
Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control
Operating Modes: Router Mode, Access Point Mode
Compatibility: Any ISP (subscription required), Tether App, Web Browser Management
Wi-Fi Features: MU-MIMO, OFDMA, Beamforming, Airtime Fairness, 4 Streams, OneMesh support, Guest Network, VPN Server (OpenVPN, PPTP), VPN Client (OpenVPN, PPTP, L2TP)
USB Sharing: NTFS, exFAT, HFS+, FAT32 supported; Apple Time Machine, FTP Server, Samba Server, Media Server
Features
-
AX1800 dual-band Wi-Fi 6 with speeds up to 1.8 Gbps
-
Four high-gain antennas and Beamforming for extensive coverage
-
Quad-core processing for stable, reliable performance
-
OFDMA for high device capacity and low-latency connections
-
Target Wake Time (TWT) improves battery life of connected devices
-
USB 2.0 port for file sharing and private cloud storage
-
OneMesh support for seamless whole-home Wi-Fi expansion
-
VPN server and client support for secure remote access
Package Contents
TP-Link Archer AX20 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
AX20
