Description
The TP-Link Archer AX10 is an AX1500 dual-band Wi-Fi 6 router built to deliver faster speeds, greater capacity, and reduced network congestion for modern households. With next-gen Wi-Fi 6 speeds up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, it provides smooth streaming, gaming, and downloading experiences. A powerful triple-core CPU ensures instant response across all network activities, while four high-performance antennas and Beamforming extend strong, stable coverage throughout your home. With OFDMA, MU-MIMO, full gigabit ports, and EasyMesh support, the Archer AX10 offers a reliable, efficient, and flexible home networking solution.
Dimensions
Height: 38.6 mm (1.5 in)
Width: 260.2 mm (10.2 in)
Depth/Thickness: 135.0 mm (5.3 in)
Technical Specifications
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
Frequency Band: Dual-Band (2.4 GHz and 5 GHz)
Data Transfer Rate: AX1500 (1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Processor: 1.5 GHz Triple-Core CPU

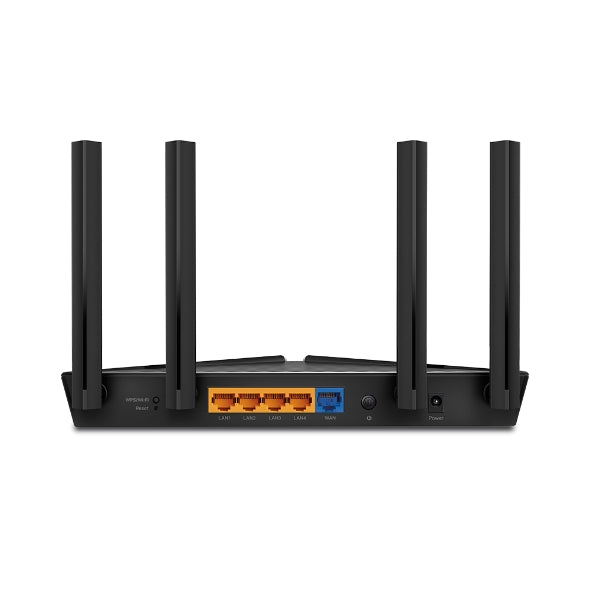

Ports: 1× Gigabit WAN, 4× Gigabit LAN
Antennas: 4× Fixed High-Performance Antennas
Power Supply: 12 V ⎓ 1 A
Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, Access Control
Operating Modes: Router Mode, Access Point Mode
Compatibility: Any ISP (subscription required), Tether App, Alexa voice control, Web Browser Management
Wi-Fi Features: OFDMA, MU-MIMO, Beamforming, Airtime Fairness, 4 Streams, OneMesh support, EasyMesh compatibility, Guest Network, VPN Server (OpenVPN, PPTP)
Features
-
AX1500 dual-band Wi-Fi 6 with up to 1.5 Gbps speeds
-
Triple-core CPU for fast, stable processing
-
Four antennas with Beamforming for extended coverage
-
OFDMA and MU-MIMO support for more connected devices with lower latency
-
Full gigabit Ethernet ports for high-speed wired connections
-
EasyMesh and OneMesh support for seamless whole-home Wi-Fi expansion
-
Alexa-compatible for voice control
-
Easy setup and management with the TP-Link Tether app
Package Contents
TP-Link Archer AX10 Router × 1
Power Adapter × 1
RJ45 Ethernet Cable × 1
Quick Installation Guide × 1
Model Number(s)
AX10
