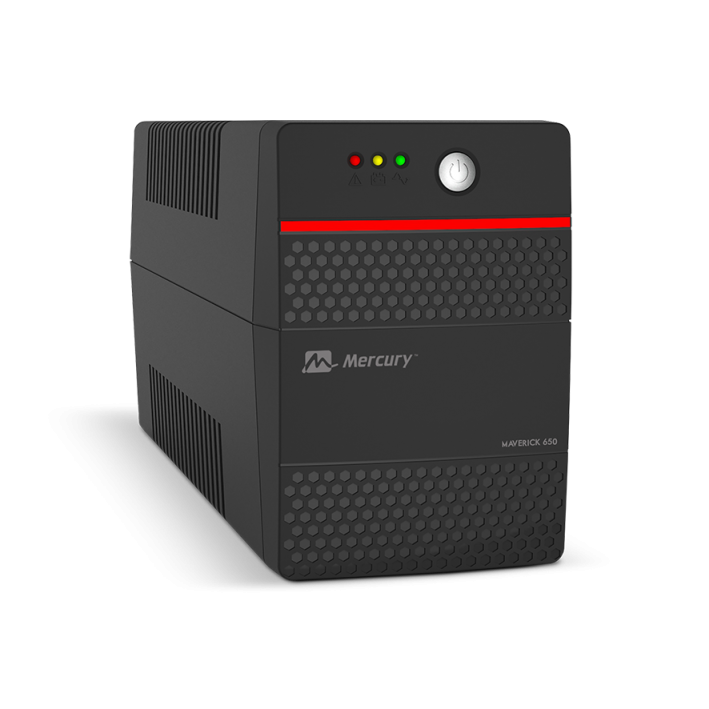

Description
The Mercury Maverick UPS 650 is a compact and efficient line-interactive UPS designed to provide reliable backup power and protect your devices from voltage fluctuations. With built-in AVR, intelligent battery management, and comprehensive protection features, it ensures seamless operation during outages and extends battery performance. Its lightweight design, generator compatibility, and fast recharge make it an ideal choice for both home and office environments.
Dimensions
Height: 142 mm (5.6 in)
Width: 101 mm (4.0 in)
Depth: 280 mm (11.0 in)
Technical Specifications
Capacity: 650 VA / 390 W
Input Voltage: 220–240 VAC
Input Voltage Range: 140–300 VAC
Input Frequency: 50/60 Hz
Input Current: 2.4 A max
Output Voltage Regulation (Battery Mode): ±10%
Output Frequency: 50/60 Hz
Frequency Regulation (Battery Mode): ±1 Hz
Output Waveform: Simulated sinewave
Output Sockets: 2 × Universal
Battery Type: Sealed lead-acid, maintenance-free
Battery Voltage: 12 VDC
Battery Capacity: 1 × 12V/7Ah
Recharge Time: 6–8 hours to 90% after full discharge
Transfer Time: Typical 4–8 ms, max 13 ms
Protection: Short circuit, overcharge, overload, over-discharge
Communication Ports: None
Enclosure: IP20 (dustproof, not waterproof)
Operating Temperature: 0–40 °C
Noise Level: <45 dB (at 1m)
Humidity: 0–90% (non-condensing)
Features
-
Microprocessor control for high reliability
-
Boost and Buck AVR stabilizes output voltage
-
Simulated sinewave output
-
Built-in super smart charger shortens charging time
-
Auto restart during AC recovery and DC start function
-
Intelligent battery management with self-diagnostic function
-
Comprehensive protection: battery discharge, overcharge, overload, over-discharge, and surge protection
-
Off-mode charging and optional no-load shutdown
-
Humanized alarm system for user alerts
-
Compatible with generator sets
Package Contents
-
Mercury Maverick UPS 650 × 1
Model Number(s)
MAV650
