Description

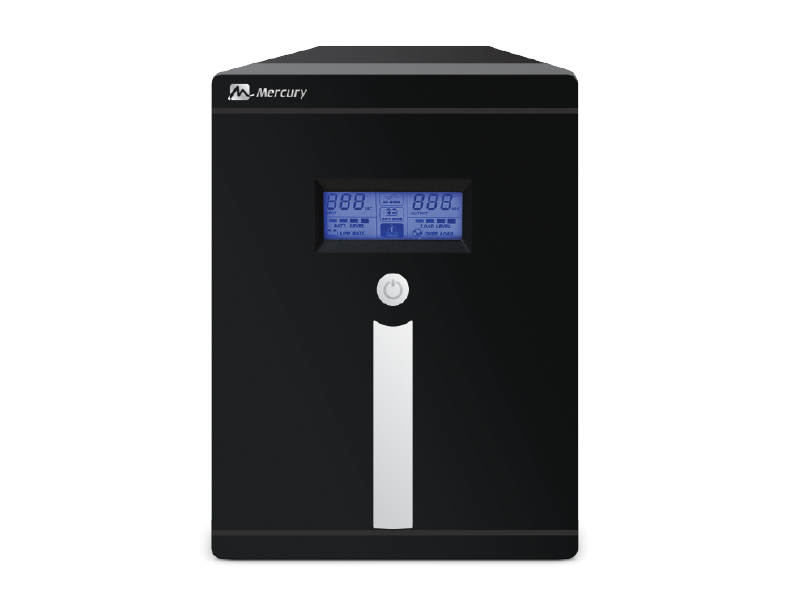

The Mercury Elite 3000 Pro is a high-capacity line-interactive UPS designed to deliver dependable power protection for critical equipment. With robust microprocessor control, wide input voltage range, and efficient simulated sinewave output, it ensures reliable backup power during outages. Its intelligent battery system, fast recharge, and comprehensive protection features make it ideal for safeguarding servers, networking devices, and essential electronics in demanding environments.
Dimensions
Height: 211.7 mm (8.3 in)
Width: 145 mm (5.7 in)
Depth: 436 mm (17.2 in)
Technical Specifications
Capacity: 3000 VA
Input Voltage: 220–240 VAC
Input Voltage Range: 140–300 VAC
Input Frequency: 50/60 Hz
Input Current: 16.0 A max
Output Voltage Regulation (Battery Mode): ±10%
Output Frequency: 50/60 Hz
Frequency Regulation (Battery Mode): ±1 Hz
Output Waveform: Simulated sinewave
Output Sockets: 4 × Universal
Battery Type: Sealed lead-acid, maintenance-free
Battery Voltage: 48 VDC
Battery Capacity: 4 × 12V/9Ah
Recharge Time: 6–8 hours to 90% after full discharge
Transfer Time: Typical 4–8 ms, max 13 ms
Protection: Short circuit, overcharge, overload, over-discharge
Communication Ports: RJ45
Enclosure: IP20 (dustproof, not waterproof)
Operating Temperature: 0–40 °C
Noise Level: <55 dB (at 1m)
Humidity: 0–90% (non-condensing)
Features
-
High-capacity 3000 VA power backup for demanding environments
-
Wide input voltage range for flexible operation
-
Boost and Buck AVR stabilizes output voltage
-
Intelligent battery management with fast recharge time
-
Auto restart ensures continuous operation during AC recovery
-
Comprehensive protection against short circuit, overload, overcharge, and over-discharge
-
Reliable simulated sinewave output for stable performance
-
Generator compatible
Package Contents
-
Mercury Elite 3000 Pro UPS × 1
Model Number(s)
MEC-E3000PRO
