Description

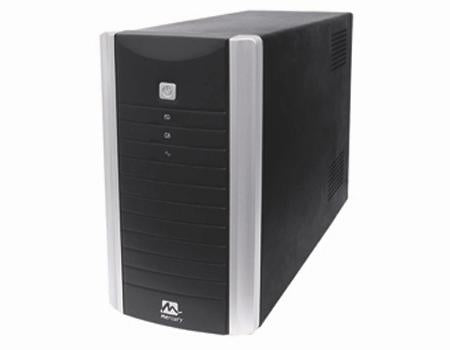

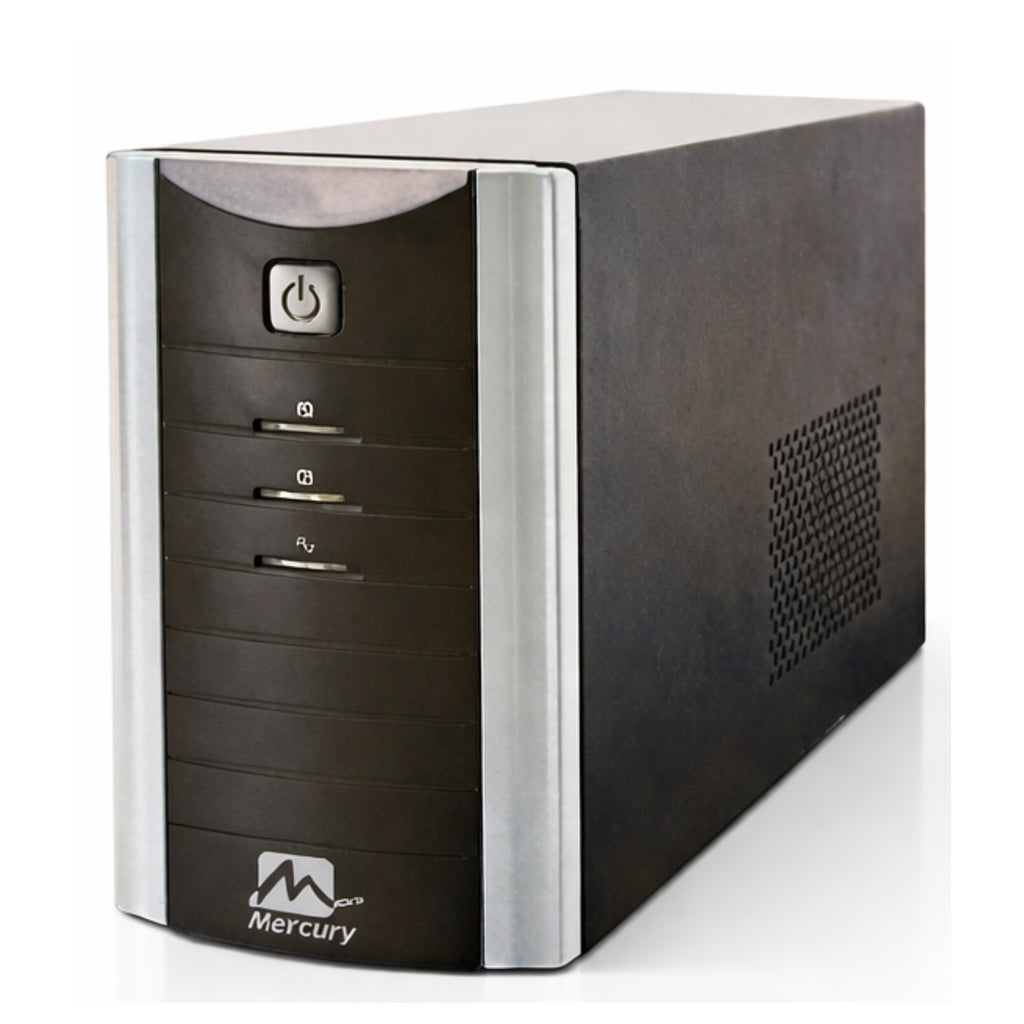

The Mercury Elite 2000 Pro is a powerful line-interactive UPS designed to deliver stable and reliable power for critical devices. With advanced microprocessor control, wide input voltage tolerance, and dependable simulated sinewave output, it ensures uninterrupted operation during power fluctuations. Its intelligent battery system, fast recharge time, and comprehensive protection features make it an ideal choice for offices, small businesses, and home setups requiring robust power security.
Dimensions
Height: 390 mm (15.4 in)
Width: 125 mm (4.9 in)
Depth: 225 mm (8.9 in)
Technical Specifications
Capacity: 2000 VA
Input Voltage: 220–240 VAC
Input Voltage Range: 140–300 VAC
Input Frequency: 50/60 Hz
Input Current: 9.0 A max
Output Voltage Regulation (Battery Mode): ±10%
Output Frequency: 50/60 Hz
Frequency Regulation (Battery Mode): ±1 Hz
Output Waveform: Simulated sinewave
Output Sockets: 4 × Universal
Battery Type: Sealed lead-acid, maintenance-free
Battery Voltage: 24 VDC
Battery Capacity: 2 × 12V/9Ah
Recharge Time: 6–8 hours to 90% after full discharge
Transfer Time: Typical 4–8 ms, max 13 ms
Protection: Short circuit, overcharge, overload, over-discharge
Communication Ports: None
Enclosure: IP20 (dustproof, not waterproof)
Operating Temperature: 0–40 °C
Noise Level: <45 dB (at 1m)
Humidity: 0–90% (non-condensing)
Features
-
2000 VA capacity for reliable power backup
-
Wide input voltage range for flexible operation
-
Boost and Buck AVR stabilizes output voltage
-
Intelligent battery management with fast recharge
-
Auto restart ensures continuous operation during AC recovery
-
Comprehensive protection against short circuit, overload, overcharge, and over-discharge
-
Reliable simulated sinewave output for stable performance
-
Generator compatible
Package Contents
-
Mercury Elite 2000 Pro UPS × 1
Model Number(s)
MEC-E2000PRO
