Description

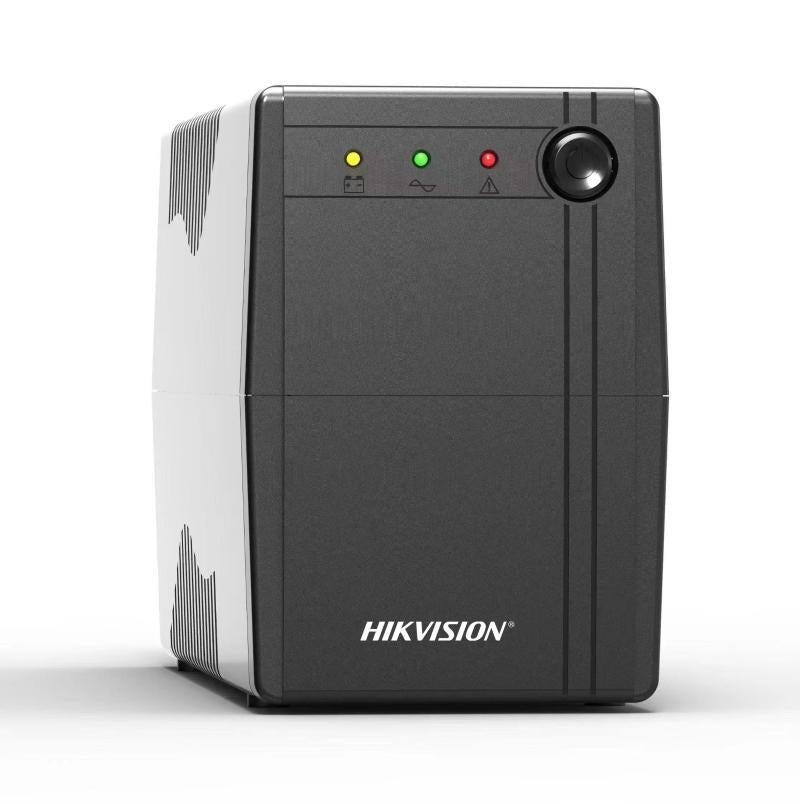

The Hikvision DS-UPS600 is a reliable uninterruptible power supply designed to deliver stable performance and safeguard critical devices from power fluctuations and outages. With wide input voltage support, fast battery charging, and multiple protection mechanisms, it ensures continuous operation and system reliability. Its compact design makes it ideal for small to medium installations, perfectly integrating with Hikvision’s ecosystem of security and networking products.
Dimensions
Height: 139 mm (5.47 in)
Width: 95 mm (3.74 in)
Depth: 274 mm (10.79 in)
Weight: 4.2 kg (9.26 lb)
Technical Specifications
Power Capacity: 600 VA / 360 W
Input Voltage Range: 140 VAC to 290 VAC
Input Frequency: 50/60 Hz
Output Voltage Range: 210 VAC to 235 VAC
Output Frequency: 50 Hz ± 0.5 Hz
Transfer Time: ≤ 10 ms
Waveform: PWM
Battery Type: 12 V / 7 Ah
Recharge Time: 4–6 hours to 90% capacity
Display: LED indicators
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 30% to 90% (non-condensing)
Compatibility
Compatible with: Hikvision security systems, networking equipment, and small electronic devices
Features
Wide input voltage range
Built-in AVR for stable performance
Super fast charging capability
Overload and short circuit protection
LED display with clear status indication
Compact and efficient design
Package Contents
UPS Unit × 1
Power Cable × 1
User Manual × 1
Model Number(s)
DS-UPS600
