Description

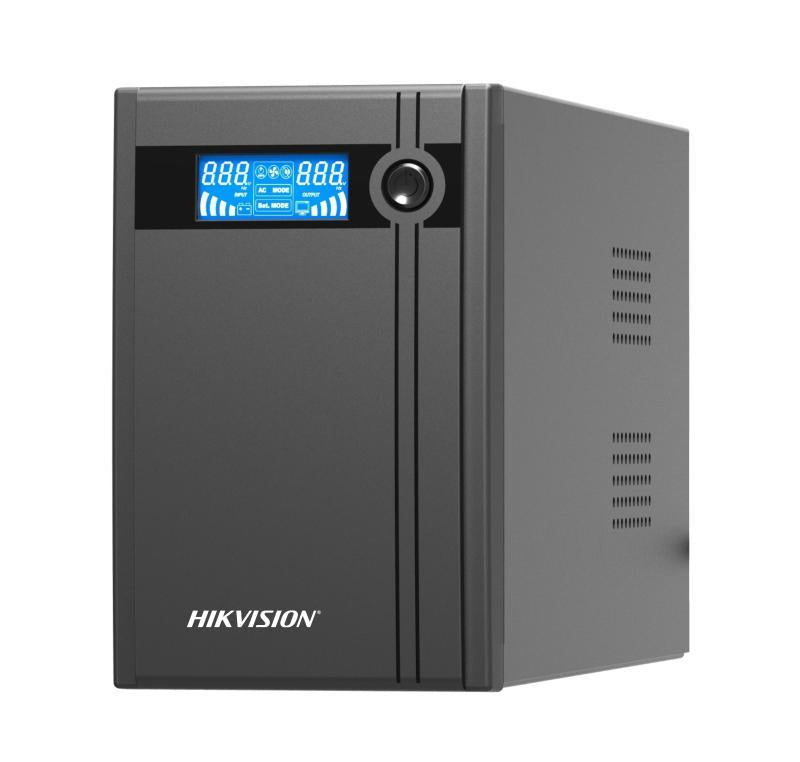

The Hikvision DS-UPS2000 is a powerful uninterruptible power supply designed to deliver stable and reliable backup power for critical devices. Featuring a wide input voltage range, built-in AVR, and super fast charging, it ensures continuous protection against power interruptions. With an LCD display, USB connectivity for remote monitoring, and multiple safety protections, this compact UPS is an efficient and dependable choice within the Hikvision ecosystem.
Dimensions
Height: 192 mm (7.56 in)
Width: 122 mm (4.80 in)
Depth: 345 mm (13.58 in)
Weight: 11 kg (24.3 lb)
Technical Specifications
Power Capacity: 2000 VA / 1200 W
Input Voltage Range: 140 VAC to 290 VAC
Input Frequency: 50/60 Hz
Output Voltage Range: 210 VAC to 235 VAC
Output Frequency: 50 Hz ± 0.5 Hz
Transfer Time: ≤ 10 ms
Waveform: PWM
Battery Type: 12 V / 9 Ah × 2 pcs
Recharge Time: 6–8 hours to 90% capacity
Display: LCD (input voltage, output voltage, battery capacity, load level)
Interface: USB
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 30% to 90% (non-condensing)
Compatibility
Compatible with: Hikvision security systems, networking equipment, and small to medium IT devices
Features
LCD display for real-time monitoring
Wide input voltage range for stable operation
Built-in AVR for automatic voltage regulation
Super fast battery charging
Overload and short circuit protection
USB port for remote control
Compact and efficient design
Package Contents
UPS Unit × 1
Power Cable × 1
User Manual × 1
Model Number(s)
DS-UPS2000
