Description

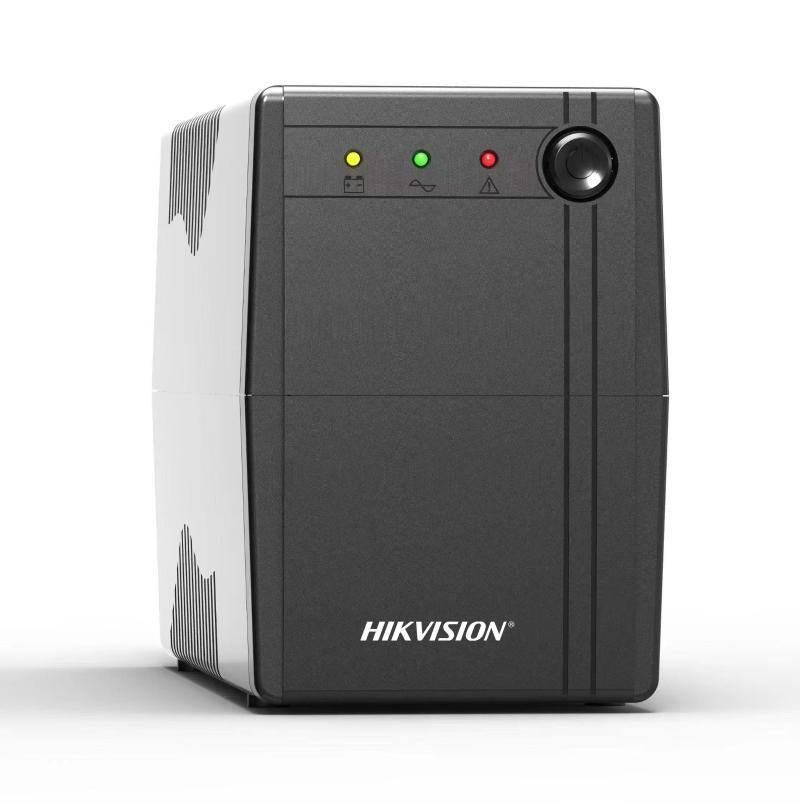

The Hikvision DS-UPS1000 is a compact uninterruptible power supply designed to safeguard essential equipment from power disruptions. With a wide input voltage range, built-in AVR, and fast battery charging, it ensures reliable operation and continuous uptime. Enhanced with overload and short circuit protection, this UPS provides stable and efficient performance, making it an excellent choice for small to medium security and networking applications within the Hikvision ecosystem.
Dimensions
Height: 139 mm (5.47 in)
Width: 95 mm (3.74 in)
Depth: 274 mm (10.79 in)
Weight: 5.4 kg (11.9 lb)
Technical Specifications
Power Capacity: 1000 VA / 600 W
Input Voltage Range: 140 VAC to 290 VAC
Input Frequency: 50/60 Hz
Output Voltage Range: 210 VAC to 235 VAC
Output Frequency: 50 Hz ± 0.5 Hz
Transfer Time: ≤ 10 ms
Waveform: PWM
Battery Type: 12 V / 9 Ah
Recharge Time: 4–6 hours to 90% capacity
Display: LED indicators (AC mode: solid green, DC mode: solid red, Overloading: flashing yellow)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 30% to 90% (non-condensing)
Compatibility
Compatible with: Hikvision security systems, networking equipment, and small electronic devices
Features
Wide input voltage range
Built-in AVR for stable operation
Super fast charging
Overload and short circuit protection
LED display for clear status indication
Compact and lightweight design
Package Contents
UPS Unit × 1
Power Cable × 1
User Manual × 1
Model Number(s)
DS-UPS1000
