Description

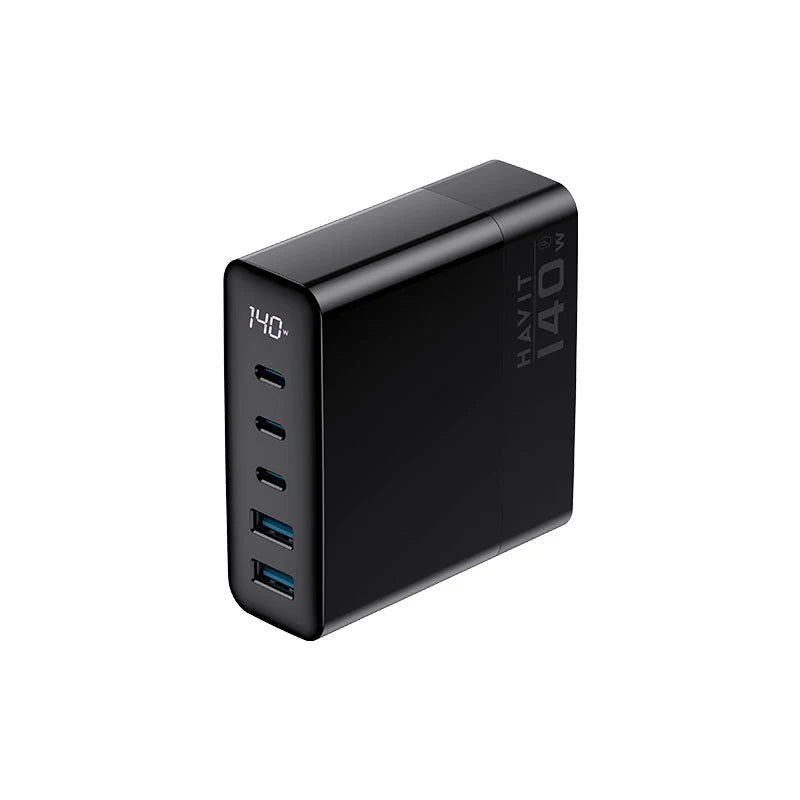

The Havit UCLE004 is a next-generation high-speed charger powered by Gallium Nitride (GaN) technology, delivering maximum efficiency, powerful performance, and superior heat management. Designed to support simultaneous charging across multiple devices, it combines intelligent power distribution, real-time LED monitoring, and robust safety features in a compact, travel-friendly build.
Dimensions
Length: 85 mm (3.35 in)
Width: 80 mm (3.15 in)
Height/Thickness: 31 mm (1.22 in)
Weight: 291.5 g (10.3 oz)
Technical Specifications
Type: High-Speed Multi-Port GaN Charger
Material: Flame-retardant PC
Input: AC 100–240V~2.5A 50/60Hz
Output Power: 140W Max
Type-C1/2/3 Output: 5/9/12/15V=3A, 20V=5A
USB1/USB2 Output: 5/9/12/20V=3A
Combined Output Options:
-
USB1+USB2: 12W + 12W = 24W
-
Type-C1/2 + Type-C2/3: 95W + 45W
-
Type-C1/2/3 + USB1/USB2: 100W + 36W
-
Type-C1/2/3 + USB1 + USB2: 100W + 12W + 12W
-
Type-C1 + Type-C2 + Type-C3: 65W + 45W + 30W
-
Type-C1/2 + Type-C2/3 + USB1/USB2: 65W + 45W + 25W
-
Type-C1 + Type-C2 + Type-C3 + USB1/2: 65W + 30W + 20W + 20W + 25W
-
Type-C1 + Type-C2 + Type-C3 + USB1 + USB2: 65W + 30W + 20W + 12W + 12W

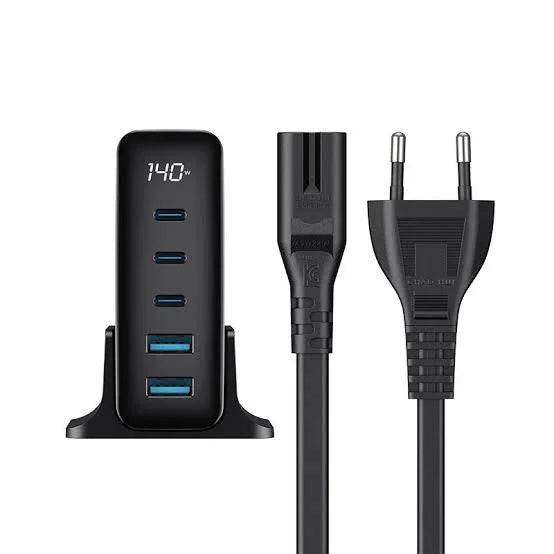

Cable Length: 1 m (3.28 ft)
Features
Advanced Gallium Nitride (GaN) technology for high efficiency and compact design
Supports multiple fast-charging protocols for simultaneous multi-device charging
LED display screen shows real-time charging power

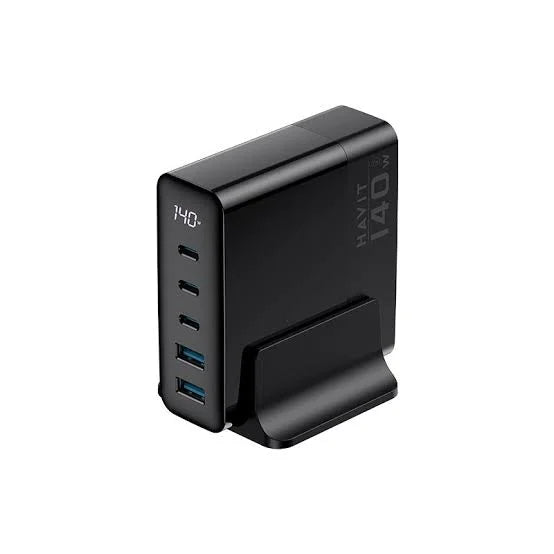

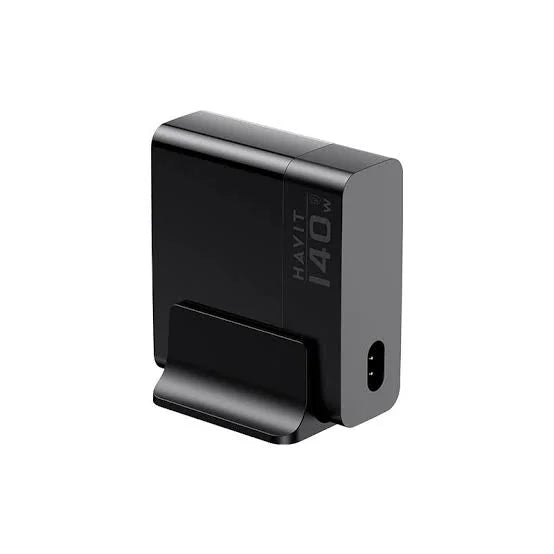

Removable holder for upright desktop positioning
Comprehensive protection against overcharge, overcurrent, overheat, surge, short circuit, and interference
Flame-retardant shell ensures added safety and durability
Compact, lightweight design ideal for home, office, and travel use
Part Number(s)
HVTC-UCLE004-BK(UK)
