Description

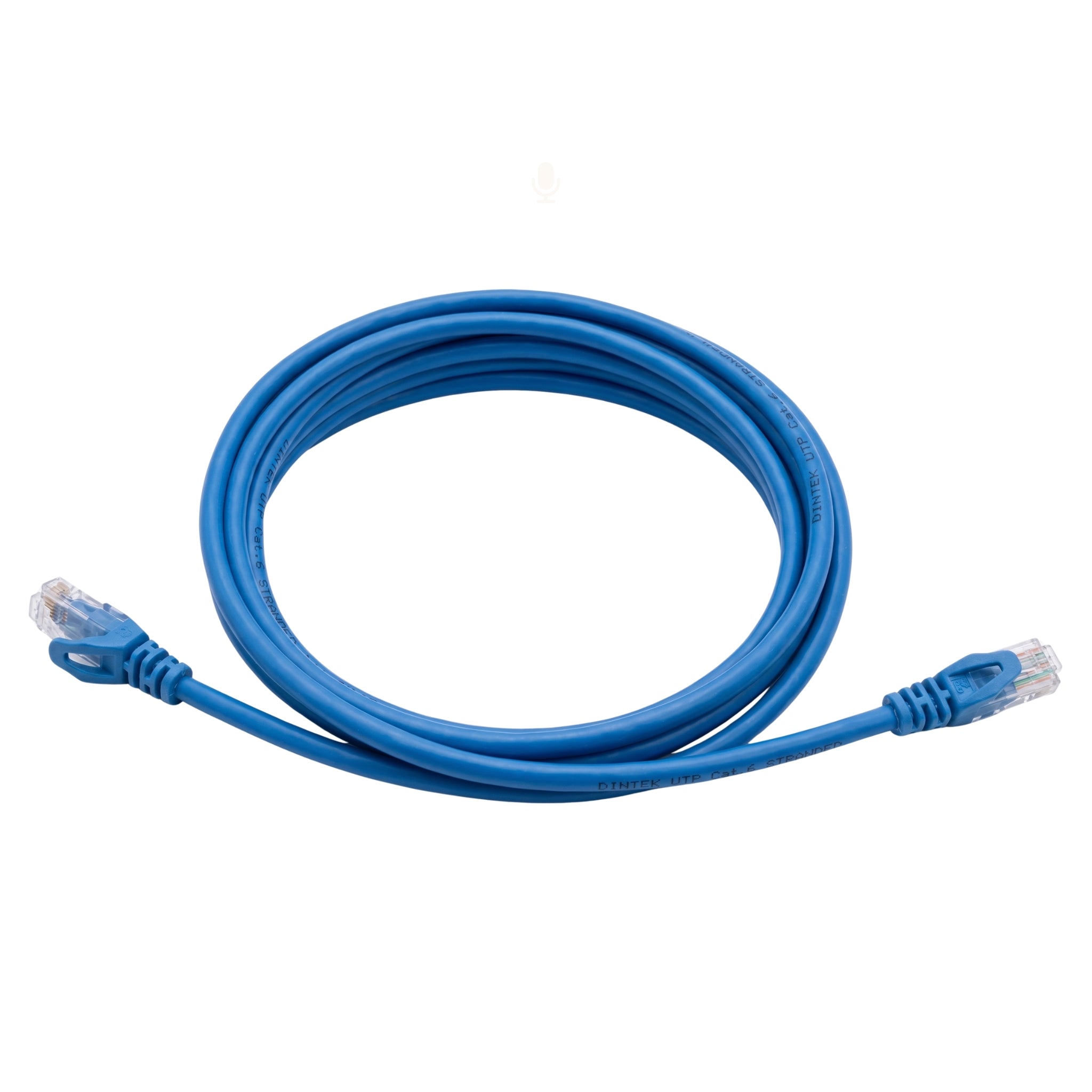

DINTEK Cat.6 Patch Cord 0.5m is designed to support high-speed data networking applications and delivers reliable performance for Category 6 cabling systems. The cable is manufactured using high-quality 24AWG stranded copper conductors and comes pre-terminated with RJ45 connectors for quick installation. Anti-snag molded strain relief boots help protect the connectors from damage during deployment and maintenance. It is suitable for Gigabit Ethernet and other high-bandwidth network applications in commercial and residential environments.
Dimensions
Length: 0.5 m (1.64 ft)
Width: 5.6 mm (0.22 in)
Technical Specifications
Type: Category 6 patch cord
Conductor: 24AWG (7 × 0.195 mm) stranded annealed copper wire
Insulation Material: HDPE
Number of Pairs: 4 twisted pairs
Jacket Material: PVC / LSZH
Nominal O.D: 5.6 ± 0.2 mm
RJ45 Plug Housing: Polycarbonate
RJ45 Contact: Copper alloy, 50µ" gold plated over nickel
Wiring Scheme: T568B
Compatibility: Category 6 and standards-compliant networking equipment
Features
Supports high-speed data networks and Gigabit Ethernet applications.
Pre-terminated with RJ45 connectors for easy deployment.
Molded anti-snag boots help prevent cable kinking and pin damage.
24AWG stranded conductors provide enhanced flexibility.
Available in multiple colors to assist with cable management.
Fully tested to meet ANSI/TIA-568-C.2 Category 6 requirements.
Package Contents
DINTEK Cat.6 Patch Cord 0.5m × 1
