Description

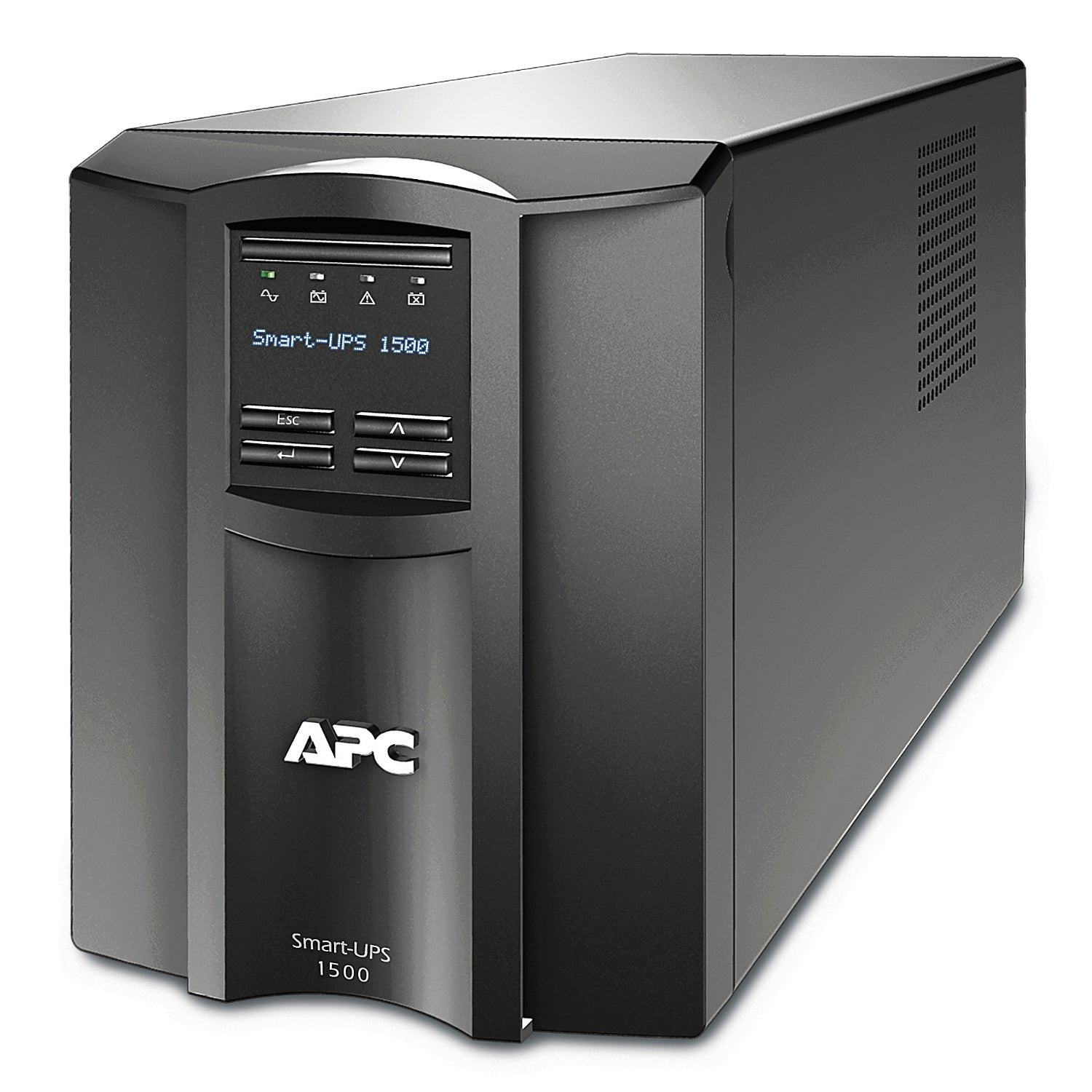

The APC Smart-UPS 1500VA provides intelligent and efficient line-interactive power protection for servers, switches, routers, and other critical network devices. Featuring sine wave output, automatic voltage regulation (AVR), and cloud-enabled monitoring through APC SmartConnect, it delivers reliable uptime and simplified remote management. With advanced LCD controls, SmartSlot expandability, and trusted APC performance, it is ideal for protecting IT and business-critical equipment.
Dimensions
Height: 219 mm (8.6 in)
Width: 171 mm (6.7 in)
Depth: 439 mm (17.3 in)
Weight: 24.09 kg (53.1 lb)
Technical Specifications
Capacity: 1500 VA / 1000 W
Input Voltage: 230 V (configurable for 220 / 230 / 240 V)
Input Voltage Limits: 151–302 V (adjustable), 160–286 V
Input Connection Type: IEC 320 C14
Cable Length: 1.8 m
Network Frequency: 50/60 Hz ± 3 Hz (auto-sensing)
Output Voltage: 230 V (configurable for 220 / 230 / 240 V)
Output Frequency: 50/60 Hz ± 3 Hz (synchronized to mains)

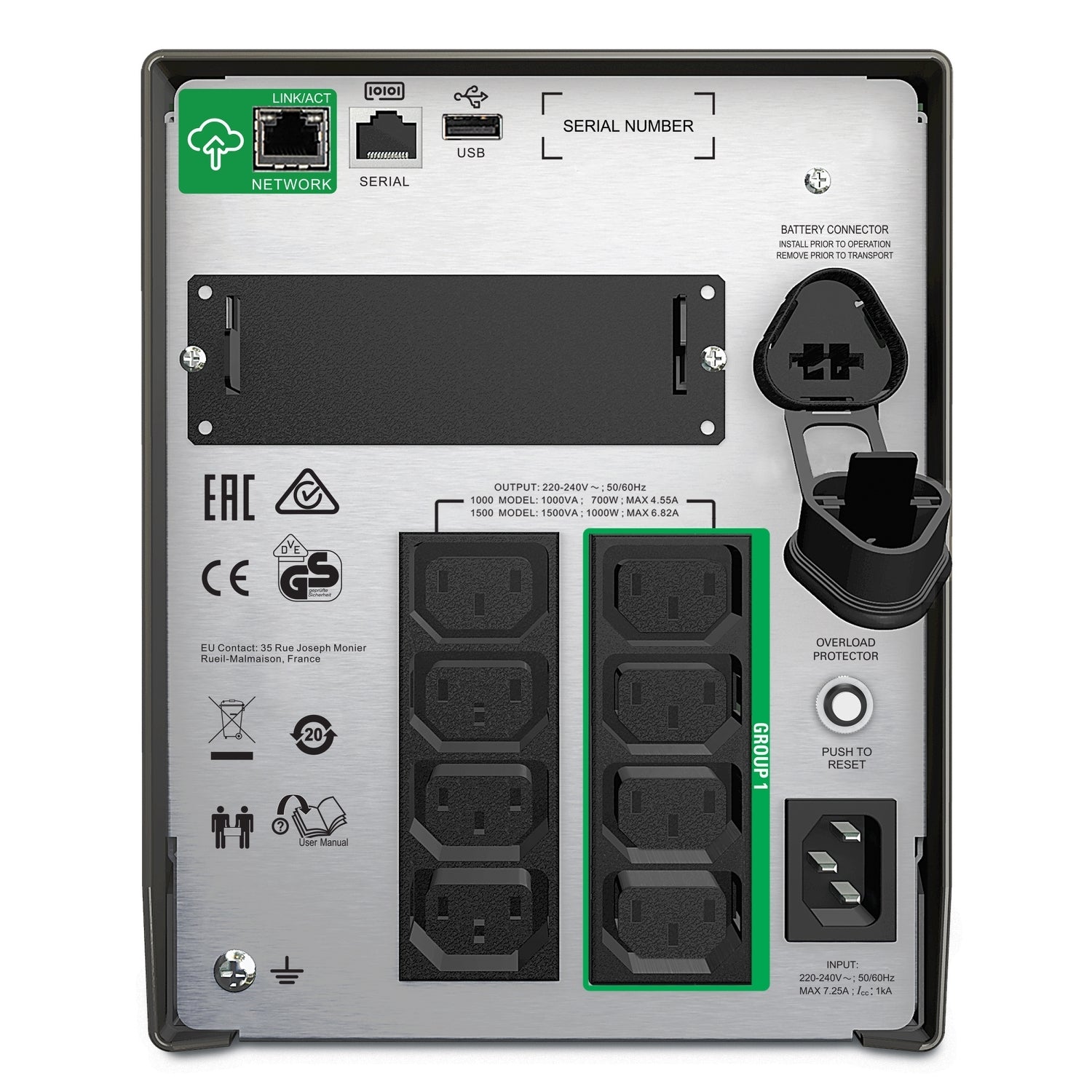

Outlets: 8 × IEC 320 C13, 2 × IEC jumpers
UPS Type: Line interactive
Waveform: Sine wave
Transfer Time: 6 ms typical, 10 ms maximum
Harmonic Distortion: <5%
Surge Protection: 459 J
Noise Suppression: Multi-pole noise filtering, IEEE surge let-through 0.3%
Battery Type: Lead-acid (internal, included)
Battery Quantity: 1
Recharge Time: 3 h
Battery Life: 3–5 years
Replacement Battery: RBC7
Charger Power: 136 W rated
Extended Runtime: Not supported
Operating Temperature: 0 to 40 °C
Storage Temperature: -15 to 45 °C
Operating Humidity: 0 to 95%
Storage Humidity: 0 to 95%
Operating Altitude: 0 to 10,000 ft
Storage Altitude: 0 to 15,240 m
Acoustic Level: 45 dBA
Heat Dissipation: 135 BTU/h
Color Options: Black
Compatibility
Compatible with: Servers, point-of-sale systems, networking equipment, and IT devices
Supported Accessories: Replacement battery (RBC7), SmartSlot accessories
Features
-
1500VA / 1000W line-interactive UPS with sine wave output
-
Eight IEC C13 outlets with AVR for reliable, regulated power
-
LCD interface for detailed status and configuration
-
Cloud-enabled APC SmartConnect port for remote monitoring
-
SmartSlot for accessory integration and management expansion
-
Fast 3-hour recharge and user-replaceable RBC7 battery
Package Contents
APC Smart-UPS SMT1500IC × 1
Installation guide × 1
USB cable × 1
Model Number(s)
SMT1500IC
