Description

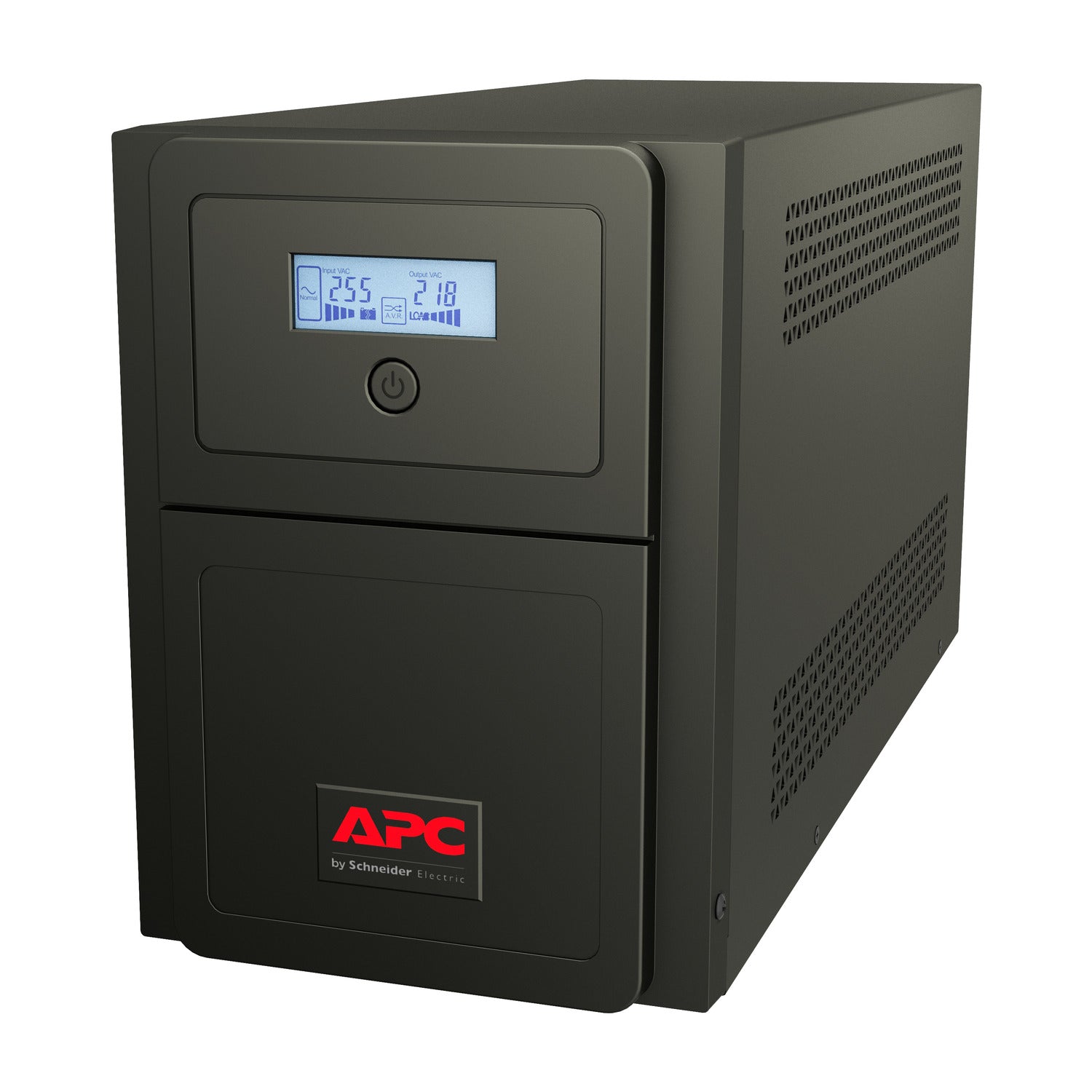

The APC Easy UPS 1500VA provides dependable line-interactive protection with automatic voltage regulation (AVR) and sine wave output for sensitive electronics and IT equipment. Designed for small to medium businesses, it delivers stable power through four universal outlets, a clear LCD interface for monitoring, and user-replaceable batteries for long-term reliability. Compact yet powerful, it ensures business continuity and equipment protection during outages and fluctuations.
Dimensions
Height: 220 mm (8.7 in)
Width: 160 mm (6.3 in)
Depth: 410 mm (16.1 in)
Weight: 17.8 kg (39.2 lb)
Technical Specifications
Capacity: 1500 VA / 1050 W
Input Voltage: 230 V (configurable for 220 / 240 V)
Input Voltage Limits: 165–290 V
Input Connection Type: IEC 60320 C14
Network Frequency: 45–65 Hz ± 0.1 Hz (auto-sensing)
Output Voltage: 230 V (configurable for 220 / 240 V)
Output Frequency: 50/60 Hz ± 1 Hz (unsynchronized)

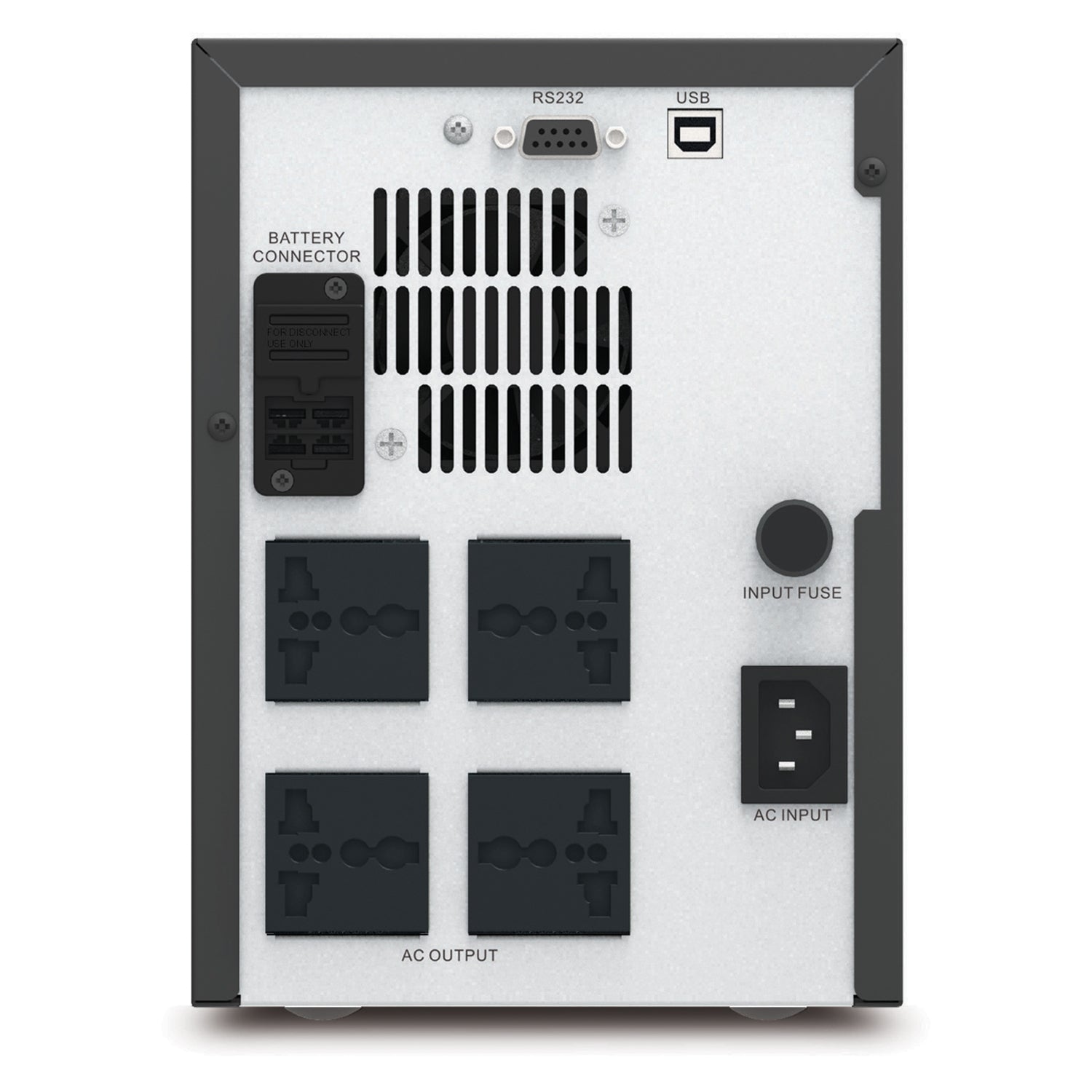

Outlets: 4 × Universal receptacles
UPS Type: Line interactive
Waveform: Sine wave
Crest Factor: 3:1
Transfer Time: 2–6 ms typical, 12 ms maximum
Surge Protection: 190 J
Battery Type: Lead-acid (internal, included)
Battery Voltage: 24 V
Recharge Time: 4 h
Charger Power: 54 W rated
Battery Life: 3–5 years
Replacement Battery: APCRBCV207
Extended Runtime: Not supported
Operating Temperature: 0 to 40 °C
Storage Temperature: -10 to 40 °C
Operating Humidity: 0 to 95% (non-condensing)
Storage Humidity: 0 to 95% (non-condensing)
Operating Altitude: 0 to 3000 m
Storage Altitude: 0 to 15,000 m
Acoustic Level: 45 dBA
IP Degree of Protection: IP20
Color Options: Black
Compatibility
Compatible with: Servers, networking equipment, point-of-sale, and business electronics
Supported Accessories: Replacement battery (APCRBCV207)
Features
-
1500VA / 1050W line-interactive UPS with sine wave output
-
Four universal outlets with AVR for stable, regulated power
-

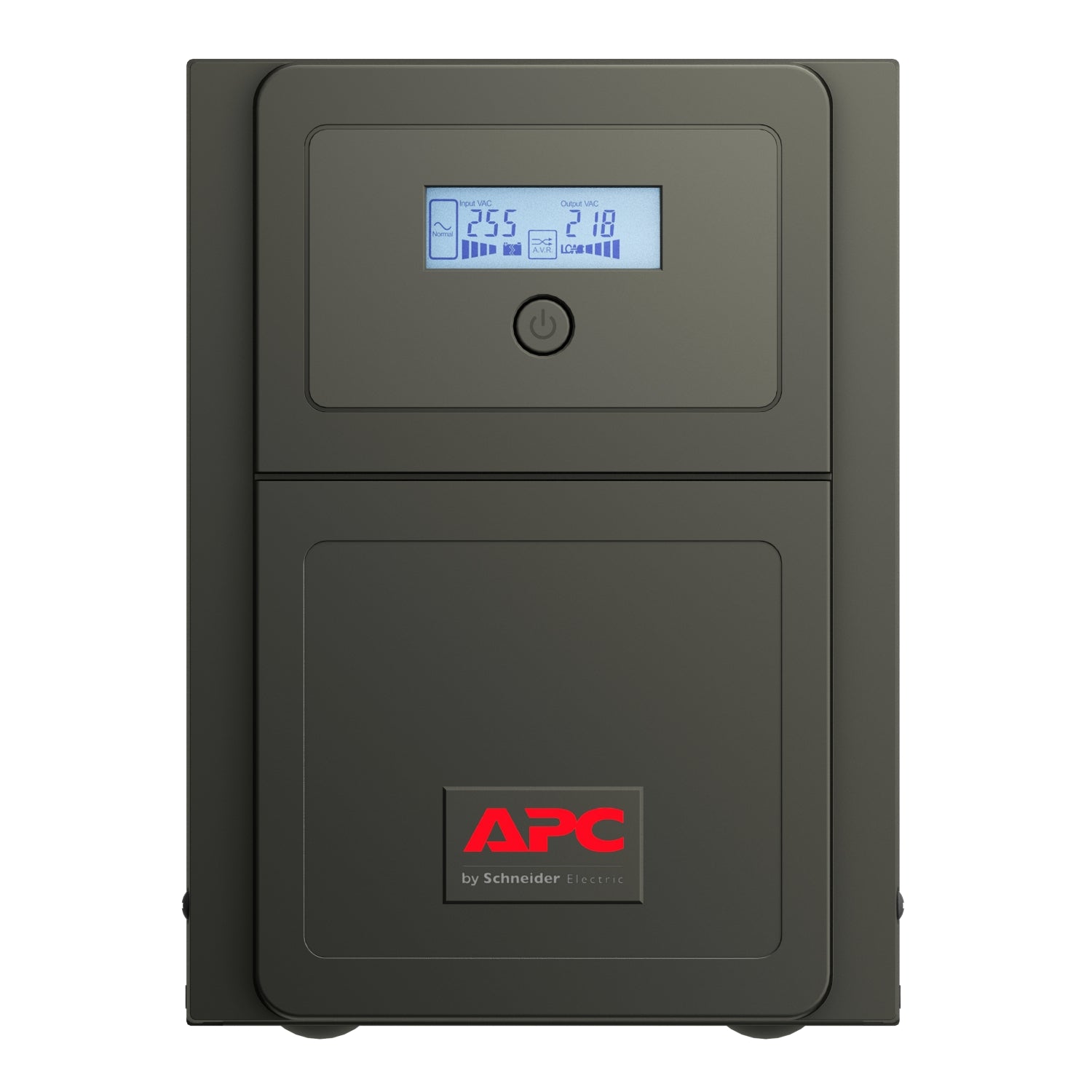

LCD status display for clear monitoring and control
-
User-replaceable APCRBCV207 battery with 3–5 year life expectancy
-
Compact tower design optimized for business-critical environments
Package Contents
APC Easy UPS SMV1500AI-MS × 1
Documentation CD × 1
User manual × 1
USB cable × 1
Model Number(s)
SMV1500AI-MS
