Description

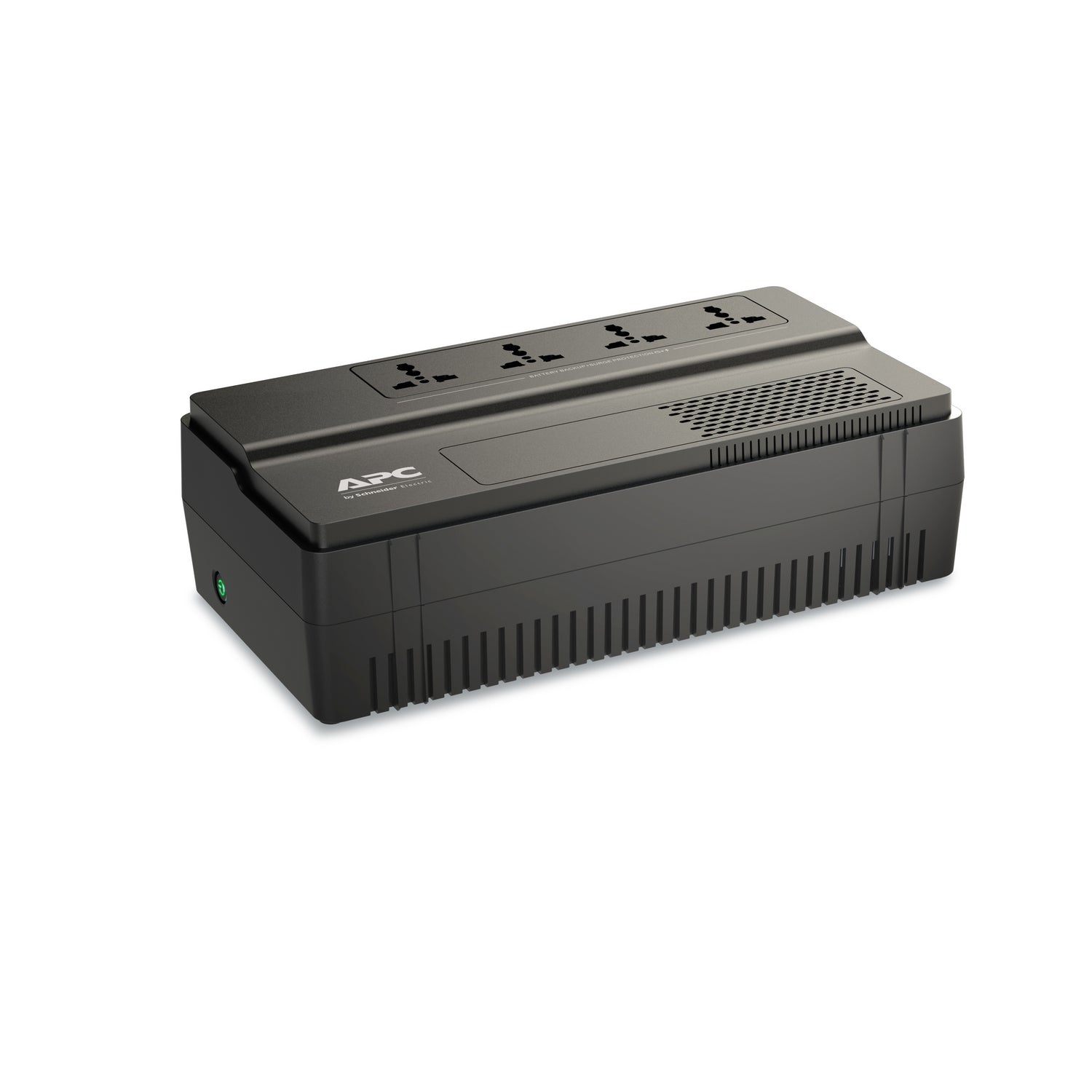

The APC Easy UPS BV 800VA delivers essential power backup and surge protection for home and office equipment. With automatic voltage regulation (AVR), it stabilizes voltage fluctuations to ensure reliable performance and safeguard electronics. Its compact, versatile design, four universal outlets, and efficient line-interactive technology make it a dependable solution for uninterrupted power in demanding environments.
Dimensions
Height: 92.5 mm (3.6 in)
Width: 160.5 mm (6.3 in)
Depth: 305 mm (12.0 in)
Weight: 5.3 kg (11.7 lb)
Technical Specifications
Capacity: 800 VA / 450 W
Input Voltage: 230 V
Input Voltage Limits: 170–280 V
Input Connection Type: BS1363A British
Cable Length: 1.5 m
Network Frequency: 50/60 Hz ± 5 Hz (auto-sensing)
Output Voltage: 230 V
Output Frequency: 50/60 Hz ± 1 Hz (unsynchronized)
Outlets: 4 × Universal receptacles
UPS Type: Line interactive
Waveform: Stepped approximation to a sinewave
Transfer Time: 6 ms typical, 10 ms maximum
Surge Protection: 156 J
Battery Type: Lead-acid
Battery Life: 3–5 years
Extended Runtime: Not supported
Operating Temperature: 0 to 40 °C
Storage Temperature: -20 to 50 °C
Operating Humidity: 0 to 90%
Storage Humidity: 0 to 90%
Operating Altitude: 0 to 6667 ft
Storage Altitude: 0 to 15,240 m
Acoustic Level: 40 dBA
IP Degree of Protection: IP20
Color Options: Black
Compatibility
Compatible with: Computers, networking equipment, home office devices, consumer electronics
Features
-
800VA / 450W line-interactive UPS with AVR for stable power output
-
Four universal outlets for flexible connectivity
-
Compact floor-standing design for easy placement
-
3–5 year battery life expectancy with user-replaceable battery
-
Audible alarms for on-battery, low battery, and overload conditions
Package Contents
APC Easy UPS BV800I-MSX × 1
User manual × 1
Model Number(s)
BV800I-MSX
