Description
The APC Back-UPS 750VA provides reliable backup power and surge protection for home and office electronics. With automatic voltage regulation (AVR), it stabilizes voltage fluctuations and ensures uninterrupted performance during power outages. Designed with two universal outlets and one IEC outlet, it offers versatile connectivity while delivering proven APC reliability in a compact, efficient design.
Dimensions
Height: 160 mm (6.3 in)
Width: 120 mm (4.7 in)
Depth: 355 mm (14.0 in)
Weight: 5.4 kg (11.9 lb)
Technical Specifications
Capacity: 750 VA / 410 W
Input Voltage: 230 V
Input Voltage Limits: 140–300 V
Input Power Factor at Full Load: 0.63
Network Frequency: 50/60 Hz ± 5 Hz (auto-sensing)
Cable Length: 1.2 m
Output Voltage: 230 V
Output Frequency: 50/60 Hz ± 1 Hz (synchronized to mains)

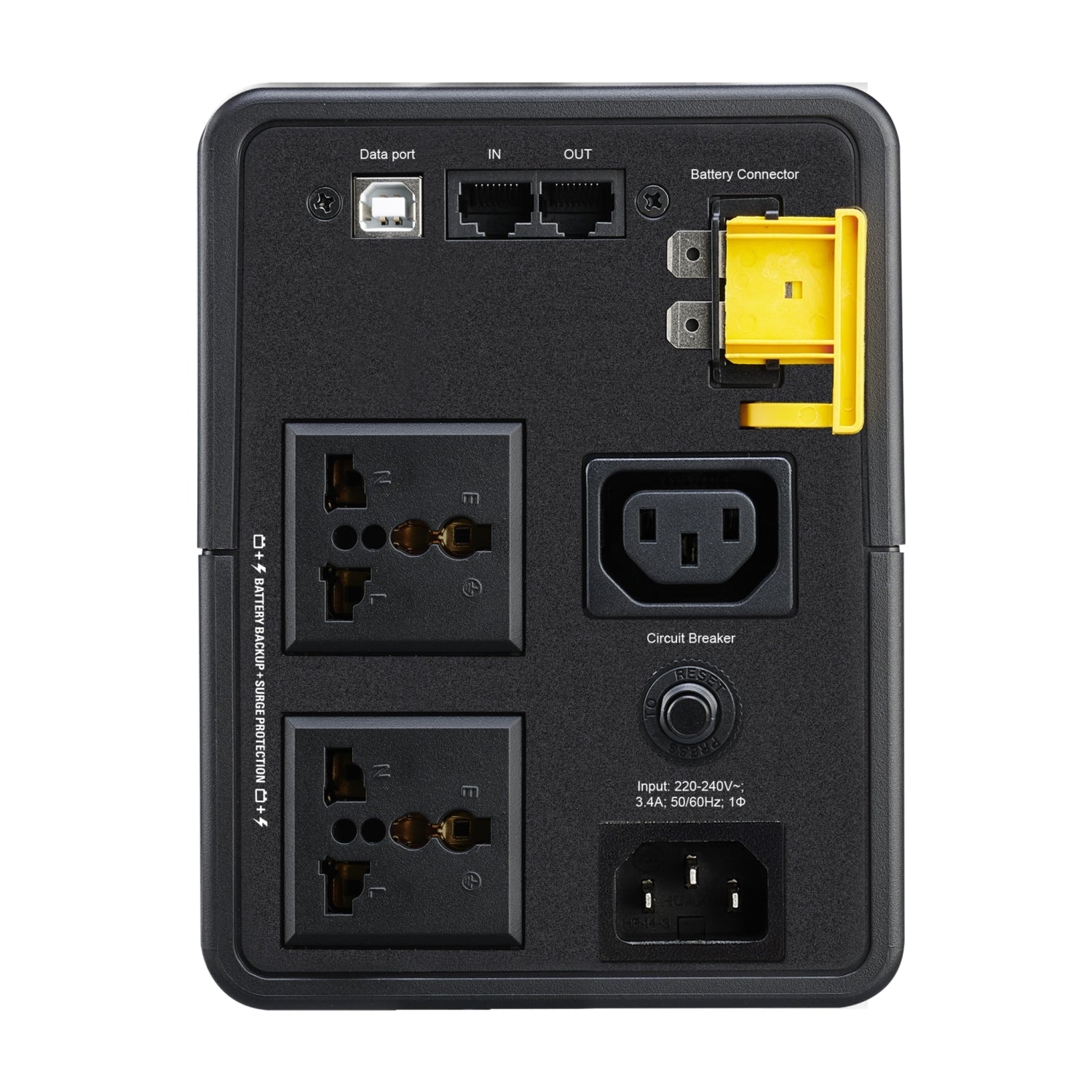

Outlets: 2 × Universal, 1 × IEC 60320 C13
UPS Type: Line interactive
Waveform: Stepped approximation to a sinewave
Transfer Time: 6 ms typical, 10 ms maximum
Surge Protection: 273 J
Battery Type: Lead-acid
Battery Voltage: 12 V
Recharge Time: 8 h
Battery Life: 3–5 years
Replacement Battery: RBC17
Extended Runtime: Not supported
Full Load Runtime: 1 min (390 W)
Half Load Runtime: 8.5 min (195 W)
Operating Temperature: 0 to 40 °C
Storage Temperature: -15 to 40 °C
Operating Humidity: 0 to 95% (non-condensing)
Storage Humidity: 0 to 95% (non-condensing)
Operating Altitude: 0 to 3000 m
Storage Altitude: 0 to 3000 m
Acoustic Level: 40 dBA
IP Degree of Protection: IP20
Color Options: Black
Compatibility
Compatible with: Computers, networking equipment, home office devices, consumer electronics
Supported Accessories: Replacement battery (RBC17)
Features
-
750VA / 410W line-interactive UPS with AVR for stable, regulated output
-
Two universal outlets and one IEC outlet for flexible connectivity
-
Provides 8.5 minutes runtime at half load, 1 minute at full load
-
User-replaceable RBC17 battery with 3–5 year life expectancy
-
LED status indicators and audible alarms for easy monitoring
Package Contents
APC Back-UPS BX750MI-MS × 1
User manual × 1
Model Number(s)
BX750MI-MS
