Description

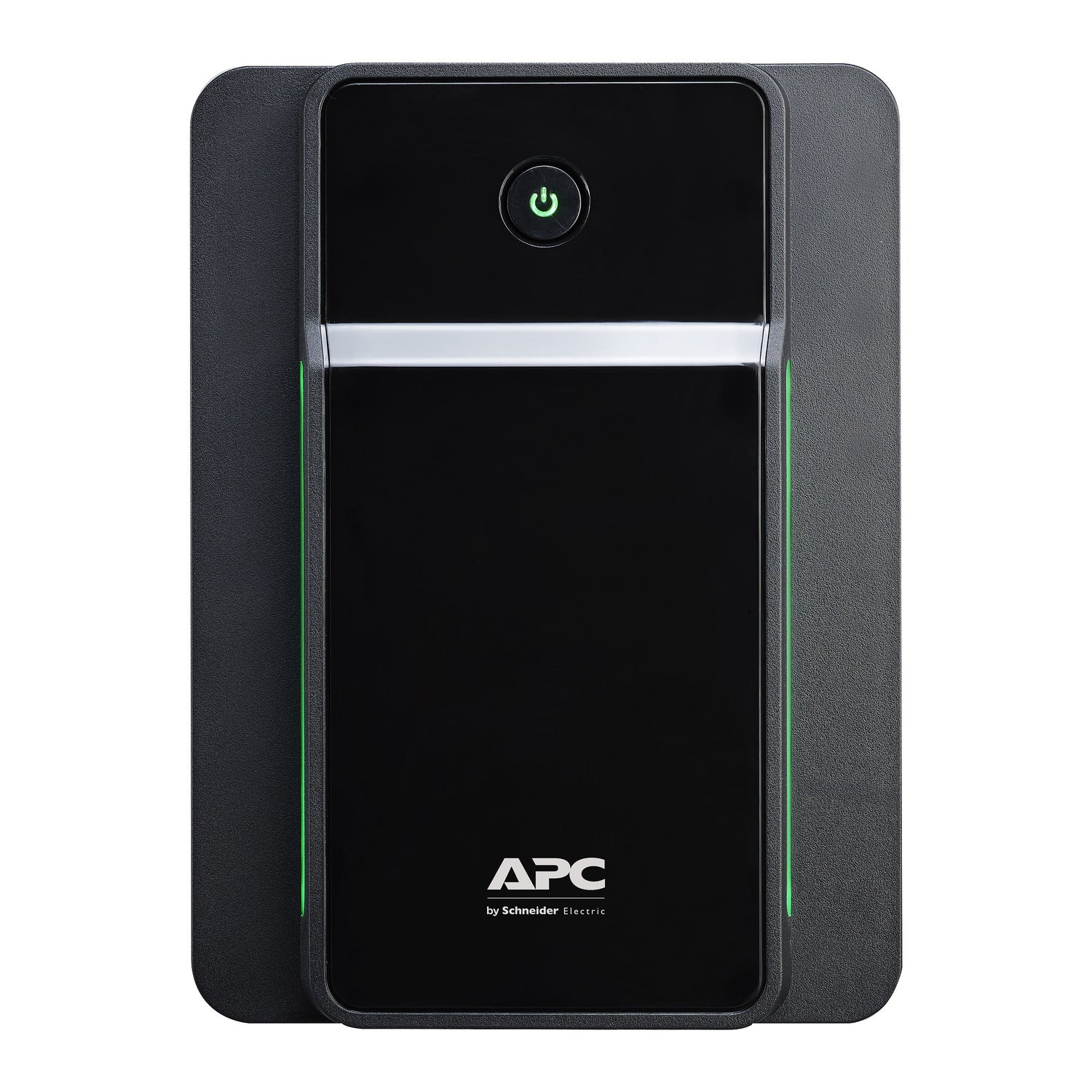

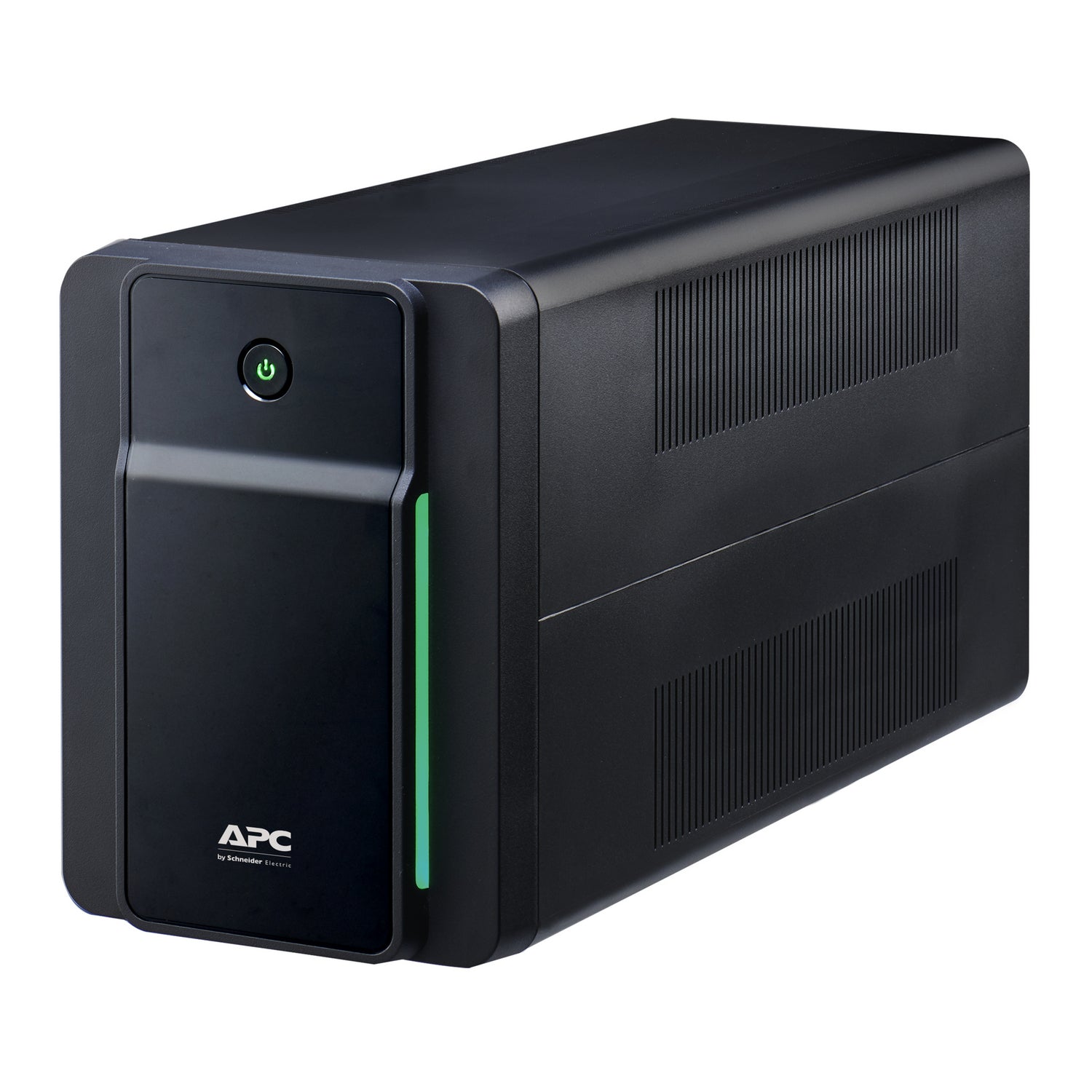

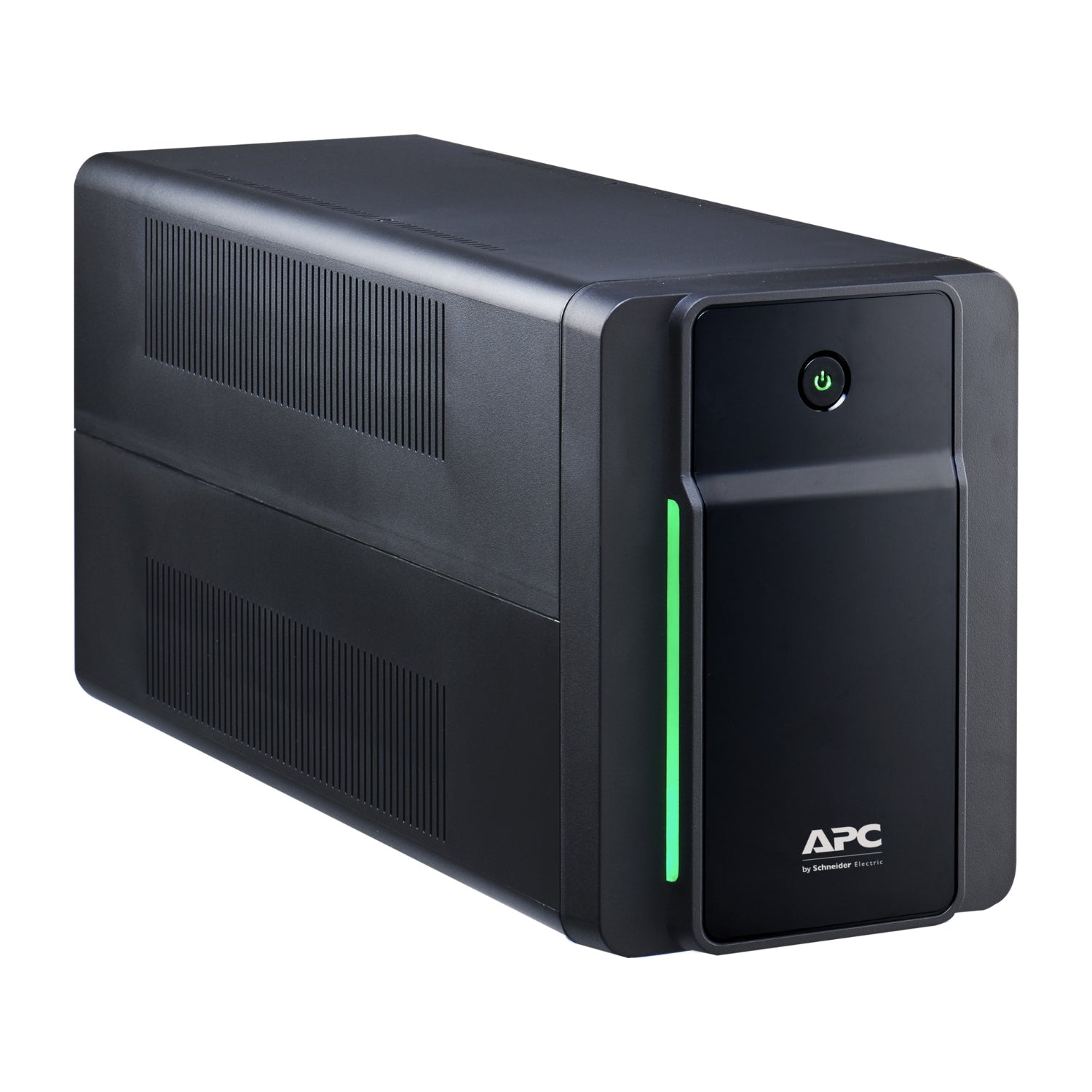

The APC Back-UPS 1600VA provides powerful backup and surge protection for essential electronics, networking devices, and home office setups. With automatic voltage regulation (AVR), it delivers stable power during voltage fluctuations, while line-interactive technology ensures reliable performance during outages. Featuring four universal outlets and extended battery capacity, it combines strong protection with the trusted reliability of APC.
Dimensions
Height: 190 mm (7.5 in)
Width: 140 mm (5.5 in)
Depth: 390 mm (15.4 in)
Weight: 10.3 kg (22.7 lb)
Technical Specifications
Capacity: 1600 VA / 900 W
Input Voltage: 230 V
Input Voltage Limits: 140–300 V
Input Power Factor at Full Load: 0.56
Network Frequency: 50/60 Hz ± 5 Hz (auto-sensing)
Cable Length: 1.2 m
Output Voltage: 230 V
Output Frequency: 50/60 Hz ± 1 Hz (synchronized to mains)
Outlets: 4 × Universal receptacles
UPS Type: Line interactive
Waveform: Stepped approximation to a sinewave
Transfer Time: 6 ms typical, 10 ms maximum
Surge Protection: 273 J
Battery Type: Lead-acid
Battery Voltage: 24 V
Recharge Time: 8 h
Battery Life: 3–5 years
Replacement Battery: APCRBC176
Extended Runtime: Not supported
Full Load Runtime: 1 min (900 W)
Half Load Runtime: 6.5 min (450 W)
Operating Temperature: 0 to 40 °C
Storage Temperature: -15 to 40 °C
Operating Humidity: 0 to 95% (non-condensing)
Storage Humidity: 0 to 95% (non-condensing)
Operating Altitude: 0 to 3000 m
Storage Altitude: 0 to 3000 m
Acoustic Level: 40 dBA
IP Degree of Protection: IP20
Color Options: Black
Compatibility
Compatible with: Computers, networking equipment, home office devices, consumer electronics
Supported Accessories: Replacement battery (APCRBC176)
Features
-
1600VA / 900W line-interactive UPS with AVR for stable power output
-
Four universal outlets for flexible device connectivity
-
Provides 6.5 minutes runtime at half load, 1 minute at full load
-
User-replaceable APCRBC176 battery with 3–5 year life expectancy
-
LED indicators and audible alarms for easy monitoring
Package Contents
APC Back-UPS BX1600MI-MS × 1
User manual × 1
Model Number(s)
BX1600MI-MS
